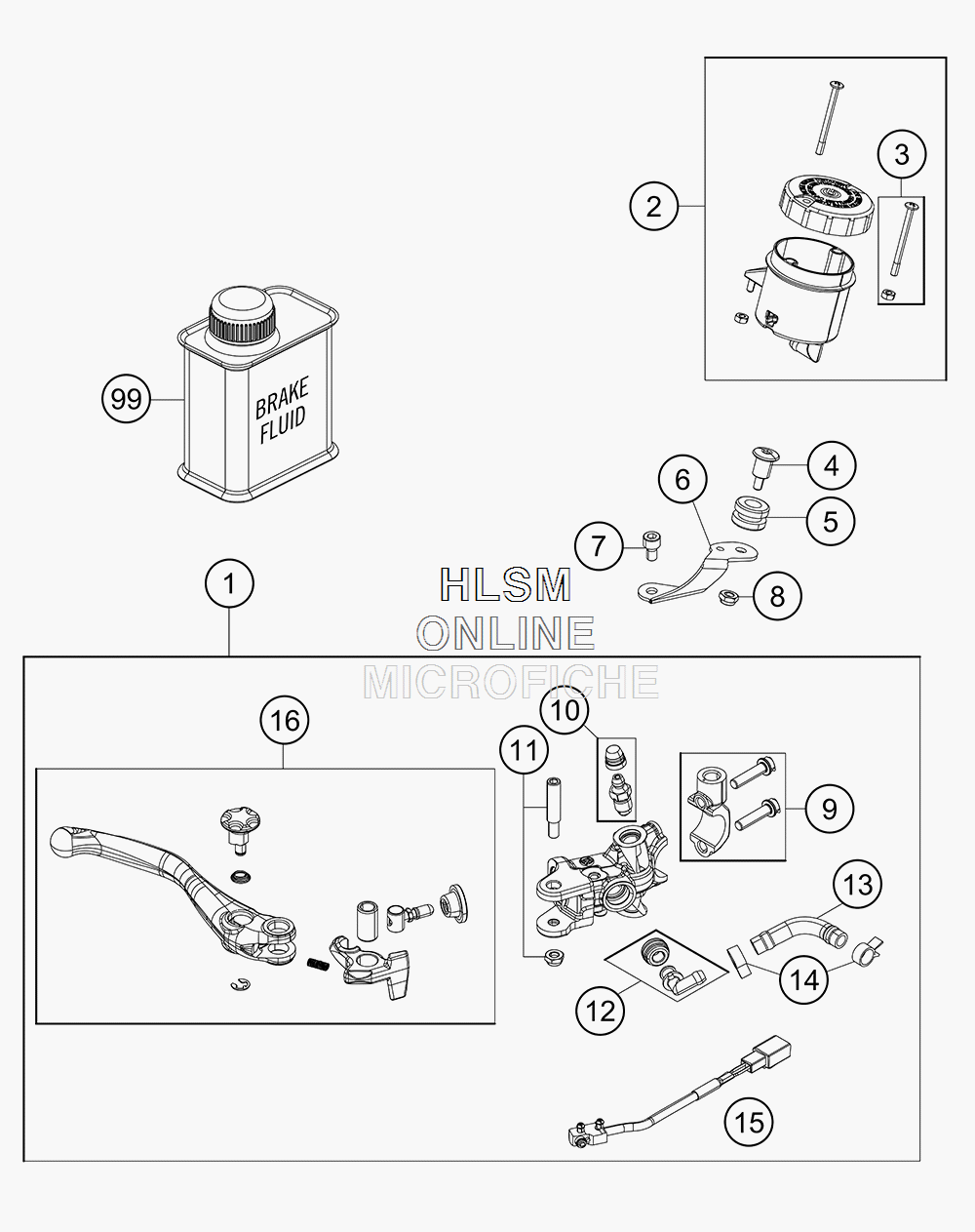

HAND BRAKE CYLINDER для Ktm 1190 ADVENTURE - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    6201300110030 HAND BRAKE CYLINDER CPL. BLACK
    HAND BRAKE CYLINDER CPL. BLACK
  • 2
    61013009202 BRAKE FLUID RESERVOIR CPL.
    BRAKE FLUID RESERVOIR CPL.
  • 3
    61013009203 SCREW+NUTF.RESERVOIR
    SCREW+NUTF.RESERVOIR
  • 4
    61013013050 SCREW RET.PANEL-RESERVOIR
    SCREW RET.PANEL-RESERVOIR
  • 5
    61013013000 RUBBER BUSH
    RUBBER BUSH
  • 6
    61013009001 RET.PANEL FLUID RES. FRONT
    RET.PANEL FLUID RES. FRONT
  • 7
    0912060106 AH SCREW DIN0912-M 6X10 10.9
    AH SCREW DIN0912-M 6X10 10.9
  • 8
    61013009004 NUT FOR RESERVOIR
    NUT FOR RESERVOIR
  • 9
    61013005000 CLAMP CPL.
    CLAMP CPL.
  • 10
    60013020000 BLEEDER SCREW WITH CAP
    BLEEDER SCREW WITH CAP
  • 11
    61013006000 LEVER SCREW CPL.
    LEVER SCREW CPL.
  • 12
    54513155000 ANGLE PIECE
    ANGLE PIECE
  • 13
    58007016101 HOSE FOR RESERVOIR 6X1,5
    HOSE FOR RESERVOIR 6X1,5
  • 14
    58007017000 YDNAC CLAMP 10101 (10,4MM)
    YDNAC CLAMP 10101 (10,4MM)
  • 15
    60311050000 BRAKE LIGHT SWITCH FRONT
    BRAKE LIGHT SWITCH FRONT
  • 16
    6251300214430 HAND BRAKE CYLINDER CPL. BLACK
    HAND BRAKE CYLINDER CPL. BLACK
  • 99
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
