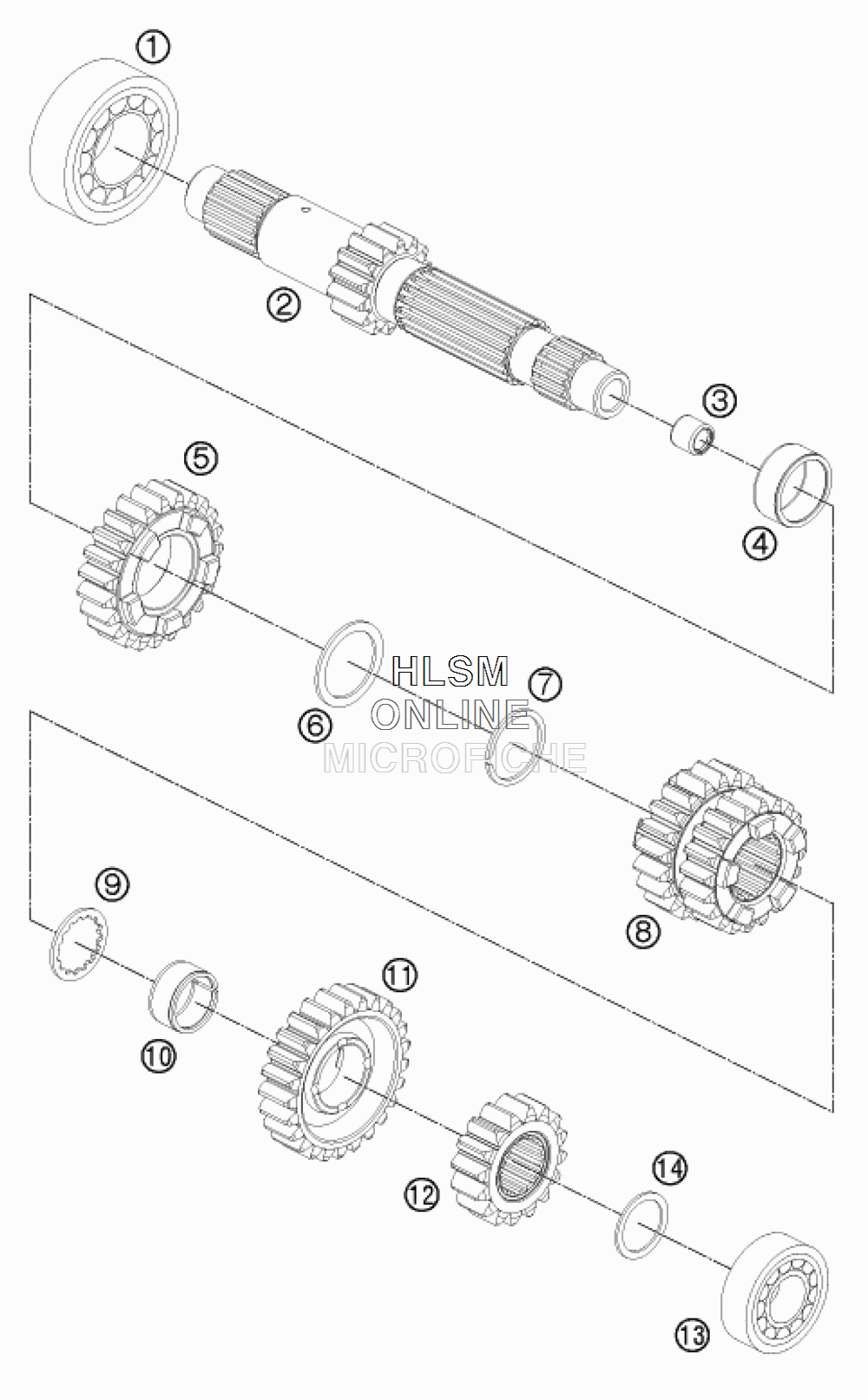

TRANSMISSION - MAIN SHAFT для Ktm 1190 ADVENTURE - 2013 года выпуска`
-
№АртикулНазвание
-
10625062062 BALL BEARING 6206 C3 J1 NSKBALL BEARING 6206 C3 J1 NSK
-
260333001000 MAINSHAFT 12TMAINSHAFT 12T
-
30618091312 NEEDLE BUSH HK0912 9/13/12NEEDLE BUSH HK0912 9/13/12
-
40405263113 NEEDLE BEAR. K 26-31-13NEEDLE BEAR. K 26-31-13
-
560333005000 IDLER GEAR 5 GEARIDLER GEAR 5 GEAR
-
661233042000 STOP DISK 27,9/35,75/1,5STOP DISK 27,9/35,75/1,5
-
70417270150 LOCK RINGS W27LOCK RINGS W27
-
860333003000 SLIDING GEAR 3/4 GEARSLIDING GEAR 3/4 GEAR
-
961233041000 STOP DISK 22,2/30,2/1,5STOP DISK 22,2/30,2/1,5
-
100405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
1160333006000 IDLER GEAR 6. GEARIDLER GEAR 6. GEAR
-
1260333002000 SOLID GEAR 2ND GEARSOLID GEAR 2ND GEAR
-
130625062040 BALL BEARING 6204 DU J1 C3BALL BEARING 6204 DU J1 C3
-
1460033040015 STOP DISK 20,2X28X1,5STOP DISK 20,2X28X1,5
-
1460033040016 STOP DISK 20,2/28/1,6STOP DISK 20,2/28/1,6
-
1460033040017 STOP DISK 20,2/28/1,7STOP DISK 20,2/28/1,7
-
1460033040018 STOP DISK 20,2/28/1,8STOP DISK 20,2/28/1,8
-
1460033040019 STOP DISK 20,2/28/1,9STOP DISK 20,2/28/1,9
-
1460033040020 STOP DISK 20,2/28/2,0STOP DISK 20,2/28/2,0
-
1460033040021 STOP DISK 20,2/28/2,1STOP DISK 20,2/28/2,1
-
1460033040022 STOP DISK 20,2/28/2,2STOP DISK 20,2/28/2,2
