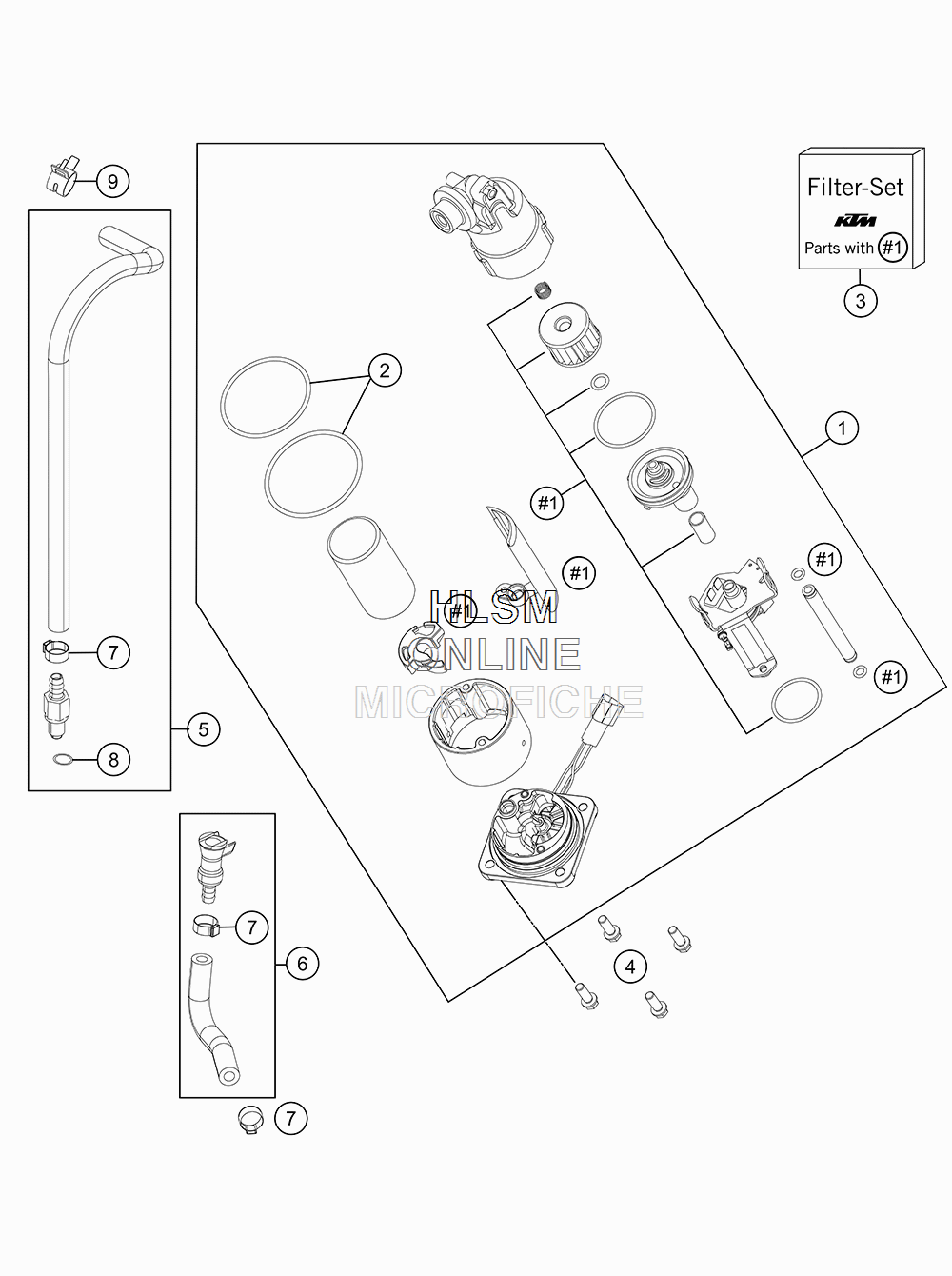

FUEL PUMP для Ktm 1190 ADVENTURE - 2013 года выпуска`
-
№АртикулНазвание
-
160307088000 FUEL TANKFUEL TANK
-
261007089000 O-RING SET FOR FUEL PUMPO-RING SET FOR FUEL PUMP
-
361007090100 FILTER-SET FUEL PUMPFILTER-SET FUEL PUMP
-
40025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
560307016000 FUEL HOSE 1CPL.FUEL HOSE 1CPL.
-
660307017000 FUEL HOSE TANK/CONNECTORFUEL HOSE TANK/CONNECTOR
-
700050157706 VARIABLE ONE-EAR CLAMP 15,7MMVARIABLE ONE-EAR CLAMP 15,7MM
-
858507012000 O-RING VITON F. PLUG CPCO-RING VITON F. PLUG CPC
-
900049140121 CLAMP STD DN14CLAMP STD DN14
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER BOX
- ANTIBLOCK SYSTEM ABS
- BALANCER SHAFT
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT PISTON
- CYLINDER
- CYLINDER HEAD FRONT
- CYLINDER HEAD REAR
- DECAL
- ELECTRIC STARTER
- ENGINE CASE
- EXHAUST SYSTEM
- FRAME
- FRONT FORK DISASSEMBLED
- FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- • FUEL PUMP
- HAND BRAKE CYLINDER
- HANDLEBAR CONTROLS
- IGNITION SYSTEM
- INSTRUMENTS / LOCK SYSTEM
- LIGHTING SYSTEM
- LUBRICATING SYSTEM
- MASK - FENDER
- MONOSHOCK
- MONOSHOCK DISASSEMBLED
- REAR BRAKE CONTROL
- REAR WHEEL
- SECONDARY AIR SYSTEM SAS
- SHIFTING MECHANISM
- SIDE- CENTER STAND
- SWING ARM
- TANK SEAT COVER
- THROTTLE BODY
- TIMING DRIVE
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
- VALVE DRIVE
- WATER PUMP
- WIRING HARNESS
- WP SHIMS FOR SETTING
