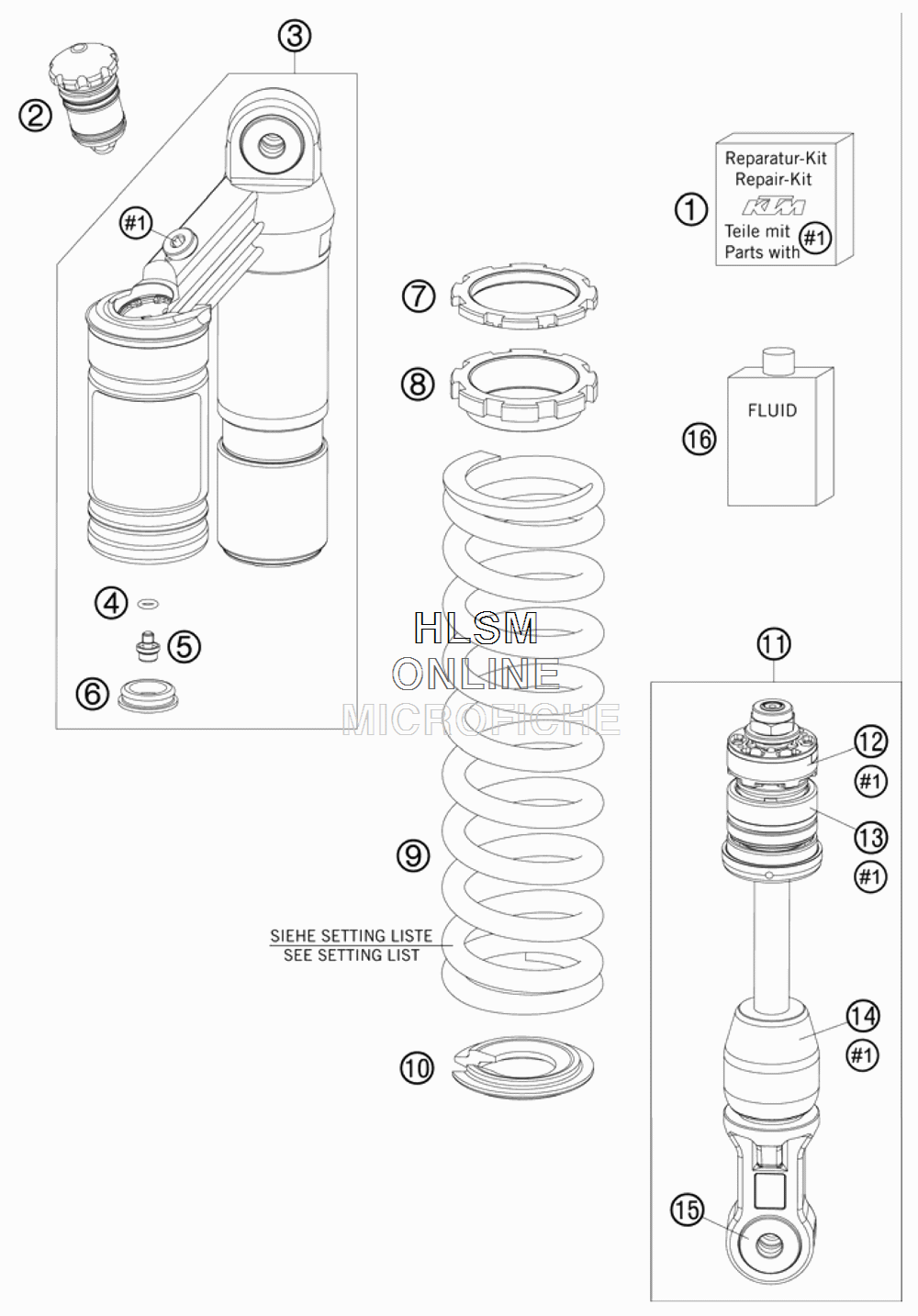

MONOSHOCK DISASSEMBLED для Ktm 65 SX - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    R308 REPAIR-KIT
    REPAIR-KIT
  • 2
    46810850S9 CC-COMPRE.DAMPING CONTROL CPL.
    CC-COMPRE.DAMPING CONTROL CPL.
  • 3
    36120817S1 MONOSHOCK TOP PART CPL.
    MONOSHOCK TOP PART CPL.
  • 4
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 5
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 6
    46811208 RUBBER CAP "DO NOT OPEN"
    RUBBER CAP "DO NOT OPEN"
  • 7
    36120015 COUNTERNUT
    COUNTERNUT
  • 8
    36120418 ADJUSTING NUT
    ADJUSTING NUT
  • 9
    93010181S SPRING 40N/MM 40-220 220MM ORANGE
    SPRING 40N/MM 40-220 220MM ORANGE
  • 9
    93010182S SPRING 35N/MM 35-220 220MM ORANGE
    SPRING 35N/MM 35-220 220MM ORANGE
  • 9
    93010183S SPRING 45N/MM 45-220 220MM ORANGE
    SPRING 45N/MM 45-220 220MM ORANGE
  • 10
    36120386 SPRING RET. H=3, D=14,5
    SPRING RET. H=3, D=14,5
  • 11
    36120781S10 MONOSHOCK LOWER PART CPL.
    MONOSHOCK LOWER PART CPL.
  • 12
    36120040 PISTON RING 8X1X108,3
    PISTON RING 8X1X108,3
  • 13
    36120787S ADAPTOR 36MM H26,6 CPL.
    ADAPTOR 36MM H26,6 CPL.
  • 14
    36120799 BUMP RUBBER
    BUMP RUBBER
  • 15
    R309 REPAIR KIT BEARINGS
    REPAIR KIT BEARINGS
  • 16
    50180751S1 SHOCK ABSORBER FLUID 5 LT
    SHOCK ABSORBER FLUID 5 LT
