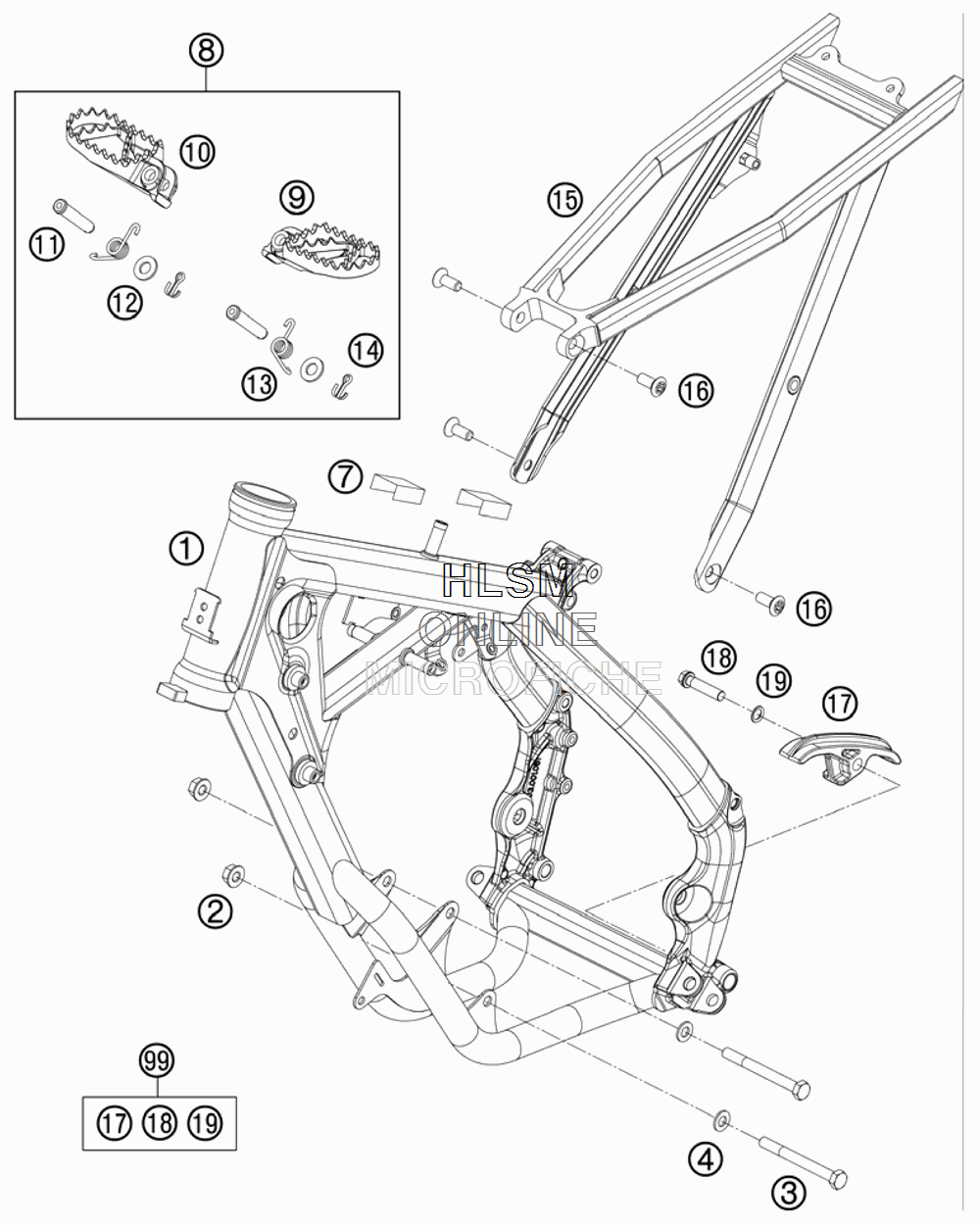

FRAME для Ktm 65 SX - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    4620300124433 FRAME "462L3"
    FRAME "462L3"
  • 2
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 3
    0931080805 HH SCREW DIN 931 M8X80 10.9
    HH SCREW DIN 931 M8X80 10.9
  • 4
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 7
    50307012000 ADH. FOIL TRANSP. 80X80 MM
    ADH. FOIL TRANSP. 80X80 MM
  • 8
    4700304003390 FOOTPEG L.+R. CPL.
    FOOTPEG L.+R. CPL.
  • 9
    59003040050 FOOT PED L/S EXC SILVER
    FOOT PED L/S EXC SILVER
  • 10
    59003041050 FOOT PED R/S EXC SILVER
    FOOT PED R/S EXC SILVER
  • 11
    54803044000 BOLT FOR FOOT PED
    BOLT FOR FOOT PED
  • 12
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 13
    54603041000 FOOTREST SPRING L/S & R/S
    FOOTREST SPRING L/S & R/S
  • 14
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 15
    46203002000 SUB FRAME 65 SX
    SUB FRAME 65 SX
  • 16
    0019080206S FLAT HEAD SCREW M. ISA45 M8X20
    FLAT HEAD SCREW M. ISA45 M8X20
  • 17
    77303053000 CHAIN SLIDING PIECE BELOW
    CHAIN SLIDING PIECE BELOW
  • 18
    0025080356 HH COLLAR SCREW M8X35 TX40
    HH COLLAR SCREW M8X35 TX40
  • 19
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 99
    77303053110 CHAIN SLIDING KIT BELOW
    CHAIN SLIDING KIT BELOW
