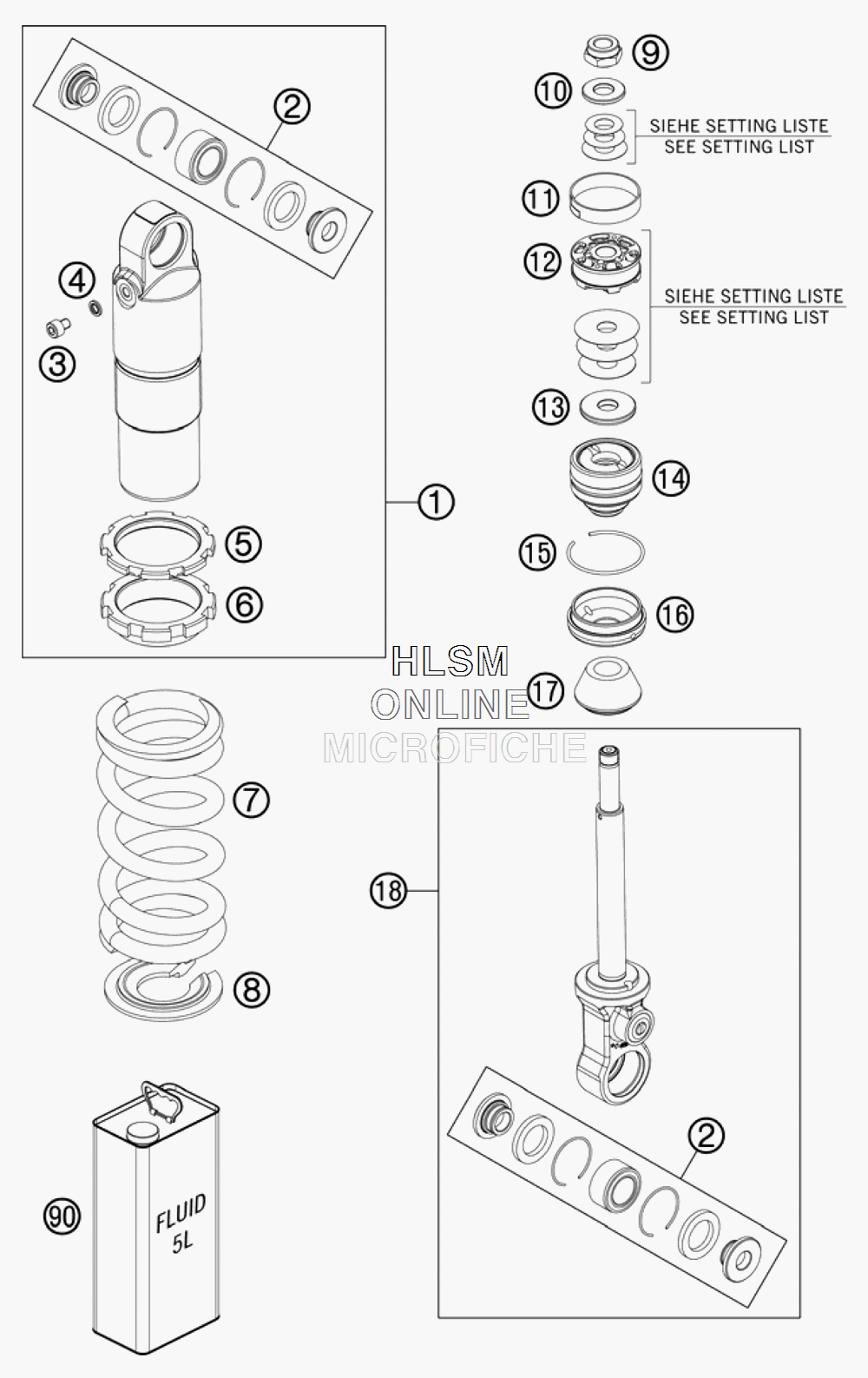

MONOSHOCK DISASSEMBLED для Ktm 50 SXS - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    36120784S MONOSHOCK TOP PART L140 CPL.
    MONOSHOCK TOP PART L140 CPL.
  • 2
    R306 REPAIR KIT BEARINGS
    REPAIR KIT BEARINGS
  • 3
    36120785 SCREW M5 C.K. RVS
    SCREW M5 C.K. RVS
  • 4
    36120782 SEAL D5,21XD8,38X1,22
    SEAL D5,21XD8,38X1,22
  • 5
    36120015 COUNTERNUT
    COUNTERNUT
  • 6
    36120418 ADJUSTING NUT
    ADJUSTING NUT
  • 7
    93010184S SPRING 65N/MM 65-120 120MM ORANGE
    SPRING 65N/MM 65-120 120MM ORANGE
  • 7
    93010185S SPRING 75N/MM 75-120 120MM ORANGE
    SPRING 75N/MM 75-120 120MM ORANGE
  • 7
    93010186S SPRING 85N/MM 85-120 120MM ORANGE
    SPRING 85N/MM 85-120 120MM ORANGE
  • 8
    36120461 SPRING RETAINER D=39
    SPRING RETAINER D=39
  • 9
    36120052 PISTON ROD NUT M10X1
    PISTON ROD NUT M10X1
  • 10
    36120604 SHIM D10XD22X2,5
    SHIM D10XD22X2,5
  • 11
    36120040 PISTON RING 8X1X108,3
    PISTON RING 8X1X108,3
  • 12
    36120071 * PISTON 6+6XD5.5/3.5
    * PISTON 6+6XD5.5/3.5
  • 13
    36120786 REBOUND DISC H=10 D=28,5
    REBOUND DISC H=10 D=28,5
  • 14
    36120787S ADAPTOR 36MM H26,6 CPL.
    ADAPTOR 36MM H26,6 CPL.
  • 15
    40540015 CIRCLIP 38X1,5
    CIRCLIP 38X1,5
  • 16
    36120780 RESERVOIR CAP D=36 H=9,5
    RESERVOIR CAP D=36 H=9,5
  • 17
    36120427 BUMP RUBBER WP65 L=20
    BUMP RUBBER WP65 L=20
  • 18
    36120777S1 MONOSH. BOTTOM PART L86 CPL.
    MONOSH. BOTTOM PART L86 CPL.
  • 90
    50180751S1 SHOCK ABSORBER FLUID 5 LT
    SHOCK ABSORBER FLUID 5 LT
