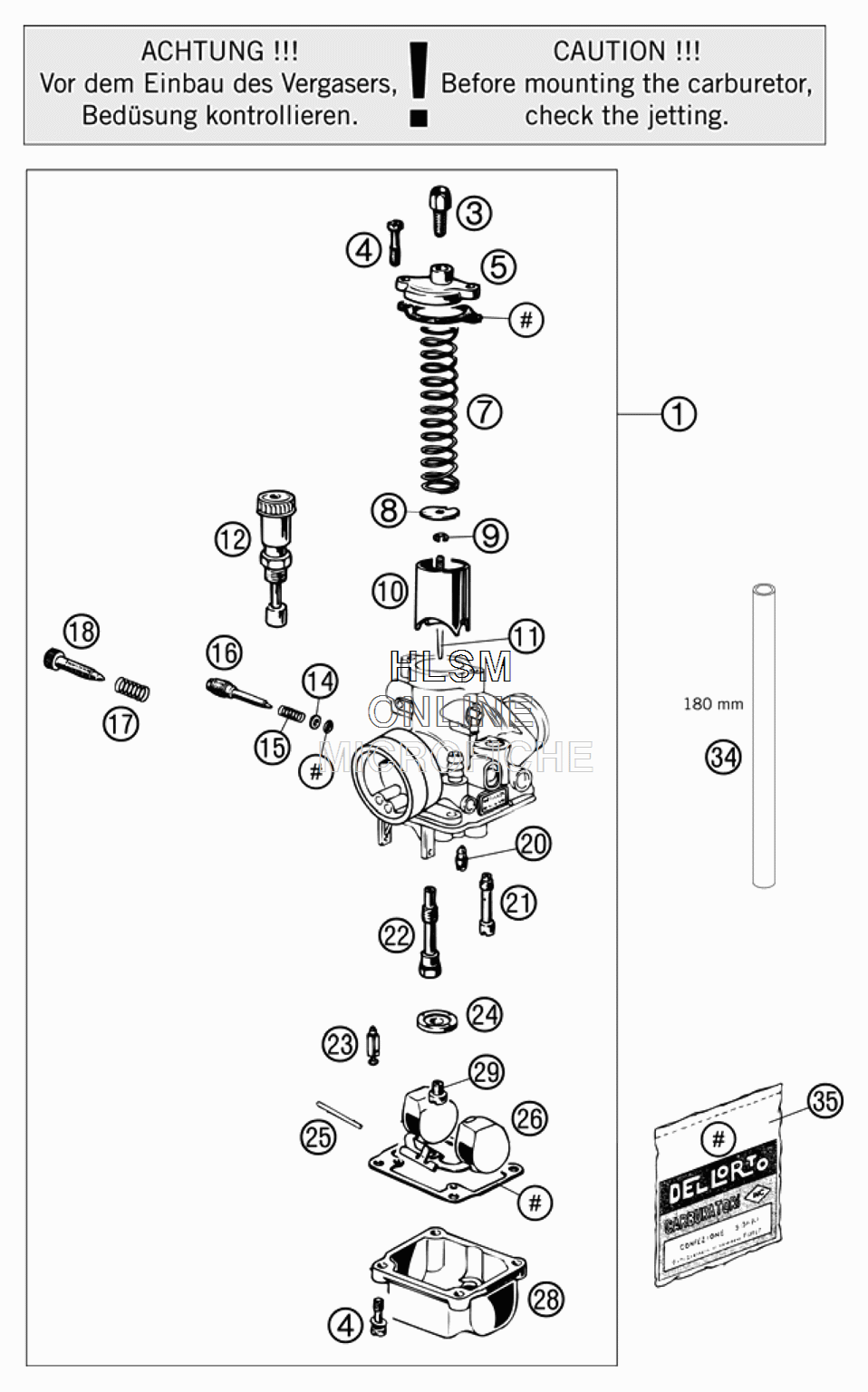

CARBURATOR для Ktm 50 SXS - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    45131001100 CARBUR. DELLO. PHBG 19 BS CHECK THE JETTING
    CARBUR. DELLO. PHBG 19 BS CHECK THE JETTING
  • 3
    57031525000 ADJUSTMENT SCREW M6X0,75
    ADJUSTMENT SCREW M6X0,75
  • 4
    0016040163 HH COLLAR SCREW M4X16 WS=6
    HH COLLAR SCREW M4X16 WS=6
  • 5
    45131027000 CARBURETOR COVER DELLORTO 19
    CARBURETOR COVER DELLORTO 19
  • 7
    45131030000 SPRING DELLORTO
    SPRING DELLORTO
  • 8
    45131109000 RETAINING SPRING DELLORTO
    RETAINING SPRING DELLORTO
  • 9
    0799025055 TAB WASHER DIN6799-RS 2,5
    TAB WASHER DIN6799-RS 2,5
  • 10
    45131035000 THR. VALVE DELLO.19 60
    THR. VALVE DELLO.19 60
  • 10
    45131035040 THR. VALVE DELLO.40
    THR. VALVE DELLO.40
  • 11
    45131034009 JET NEEDLE W9
    JET NEEDLE W9
  • 12
    45131048000 STARTING BUTTON DELLORTO 19
    STARTING BUTTON DELLORTO 19
  • 14
    57031572000 WASHER 3,3 X 5,8 X 0,5
    WASHER 3,3 X 5,8 X 0,5
  • 15
    45131015000 SPRING DELLORTO
    SPRING DELLORTO
  • 16
    45131017000 AIR ADJUST SCREW DELLORTO
    AIR ADJUST SCREW DELLORTO
  • 17
    45131016000 % SPRING FOR AIR ADJUST SCREW
    % SPRING FOR AIR ADJUST SCREW
  • 18
    45131019000 IDLE ADJUST SCREW
    IDLE ADJUST SCREW
  • 20
    45131007045 IDLING JET 45 DELLORTO
    IDLING JET 45 DELLORTO
  • 20
    45131007048 IDLING JET 48 DELLORTO
    IDLING JET 48 DELLORTO
  • 20
    45131007050 IDLING JET 50 DELLORTO
    IDLING JET 50 DELLORTO
  • 20
    45131007052 IDLING JET 52 DELLORTO
    IDLING JET 52 DELLORTO
  • 20
    45131007055 IDLING JET 55 DELLORTO
    IDLING JET 55 DELLORTO
  • 20
    45131007058 IDLING JET 58 DELLORTO
    IDLING JET 58 DELLORTO
  • 21
    45131051060 START JET 60 DELLORTO
    START JET 60 DELLORTO
  • 22
    45131021260 NEEDLE JET 260
    NEEDLE JET 260
  • 22
    45131021262 NEEDLE JET 262
    NEEDLE JET 262
  • 23
    45131020000 FLOATING NEEDLE VALVE DELLORTO
    FLOATING NEEDLE VALVE DELLORTO
  • 24
    45131074000 COVER DELLORTO
    COVER DELLORTO
  • 25
    45131008000 PIN DELLORTO
    PIN DELLORTO
  • 26
    45131009000 FLOAT 4 GR.
    FLOAT 4 GR.
  • 28
    45131011000 FLOAT BOWL DELLORTO 19
    FLOAT BOWL DELLORTO 19
  • 29
    15131123080 MAIN JET 80 DELLORTO
    MAIN JET 80 DELLORTO
  • 29
    15131123085 MAIN JET 85 DELLORTO
    MAIN JET 85 DELLORTO
  • 29
    15131123090 MAIN JET 90 DELLORTO
    MAIN JET 90 DELLORTO
  • 34
    58307016001 FUEL HOSE VITON 6X1,5 PER/M
    FUEL HOSE VITON 6X1,5 PER/M
  • 35
    45131099000 GASKET SET DELLORTO 19
    GASKET SET DELLORTO 19
