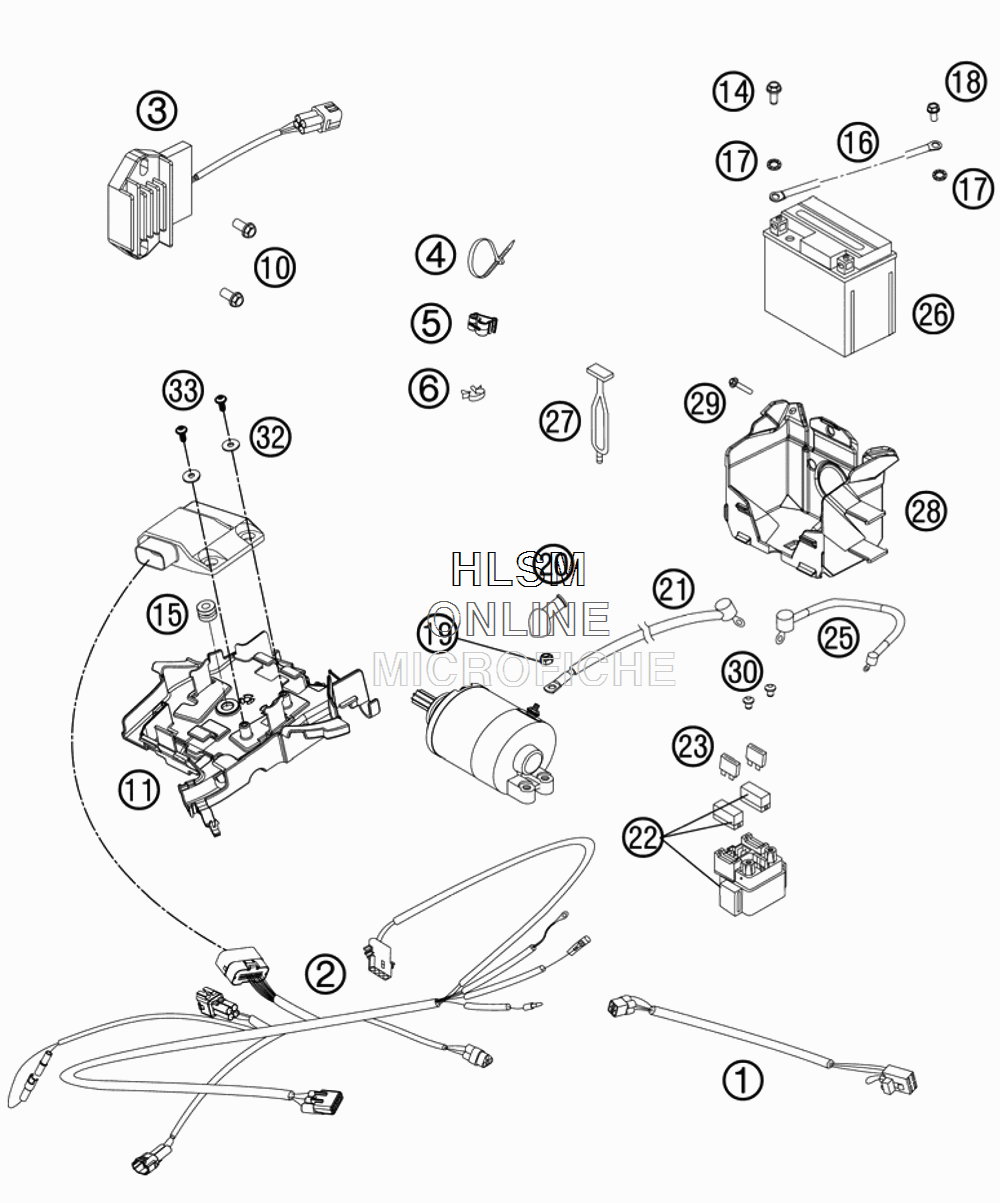

WIRING HARNESS для Ktm 450 SMR - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    77311575000 MAIN WIRING HARNESS
    MAIN WIRING HARNESS
  • 2
    77339532000 WIRING HARNESS FOR CDI-BOX
    WIRING HARNESS FOR CDI-BOX
  • 3
    77211034000 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 4
    44011076140 CABLE TIE 140/2,5MM BLACK
    CABLE TIE 140/2,5MM BLACK
  • 4
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 4
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 5
    83013026000 CABLE GUIDE
    CABLE GUIDE
  • 6
    57013072100 WIRING HOLDER 16MM
    WIRING HOLDER 16MM
  • 10
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 11
    51511094000 ELECTRIC BOX
    ELECTRIC BOX
  • 14
    0025050126 HH COLLAR SCREW M5X12 TX30
    HH COLLAR SCREW M5X12 TX30
  • 15
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 16
    58411097100 GROUND CABLE D=6MM L=140MM
    GROUND CABLE D=6MM L=140MM
  • 17
    58411098100 CONTACT WASHER M6 VSV-K6
    CONTACT WASHER M6 VSV-K6
  • 18
    0009050106 EJOT SPIRAL SCREW SF M5X10-K
    EJOT SPIRAL SCREW SF M5X10-K
  • 19
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 20
    58440099000 PROTECTION CAP F. STARTER ENG.
    PROTECTION CAP F. STARTER ENG.
  • 21
    58411059100 STARTERCABLE 700 MM
    STARTERCABLE 700 MM
  • 22
    58211058000 STARTER RELAY 12V
    STARTER RELAY 12V
  • 23
    58011109120 FUSE 20 A
    FUSE 20 A
  • 25
    58711086000 WIRING HARNESS BATTERY DUKE
    WIRING HARNESS BATTERY DUKE
  • 26
    77311053000 BATTERY 12V 3AH YTX4L-BS
    BATTERY 12V 3AH YTX4L-BS
  • 27
    50303018000 RUBBER L=145MM
    RUBBER L=145MM
  • 28
    77211055000 BATTERY BOX
    BATTERY BOX
  • 29
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
  • 30
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
  • 32
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 33
    0081050121 SCREW FOR PLASTIC K50X12 T20
    SCREW FOR PLASTIC K50X12 T20
