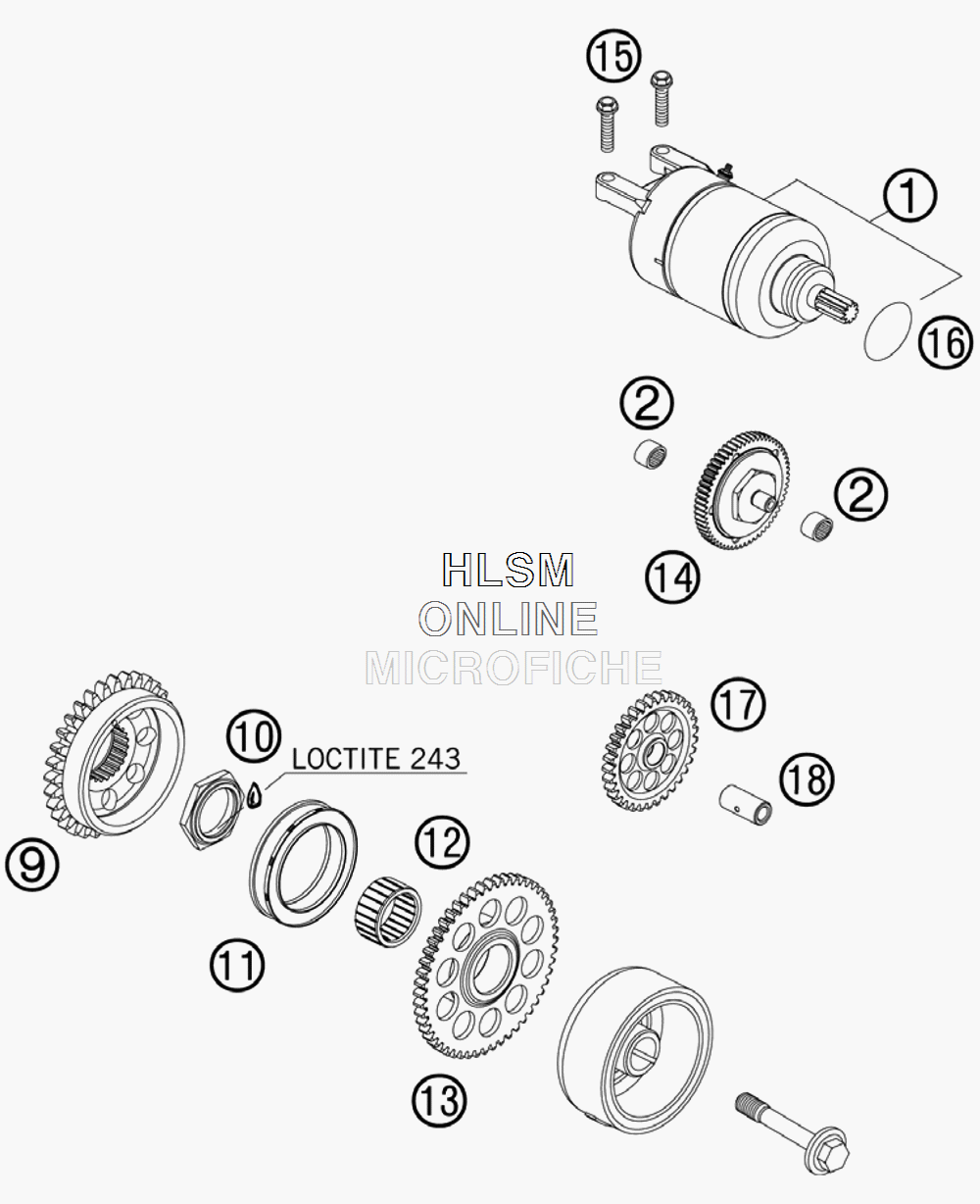

ELECTRIC STARTER для Ktm 450 SMR - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    77340001000 E-STARTER ENGINE CPL.
    E-STARTER ENGINE CPL.
  • 2
    0618081210 NEEDLE BUSH HK 0810 DIN 618
    NEEDLE BUSH HK 0810 DIN 618
  • 9
    77330955160 DRIVE WHEEL AGZR 505
    DRIVE WHEEL AGZR 505
  • 10
    77330029000 COLLAR NUT M27X1
    COLLAR NUT M27X1
  • 11
    H25015301 FREE WHEEL CLUTCH MECHANISM
    FREE WHEEL CLUTCH MECHANISM
  • 12
    0405253216 NEEDLE BEAR. K25X32X16
    NEEDLE BEAR. K25X32X16
  • 13
    77340015100 STARTING GEAR Z=52
    STARTING GEAR Z=52
  • 14
    77340016100 TORQUE LIMITER CPL.
    TORQUE LIMITER CPL.
  • 15
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 16
    0770250030 O-RING 25,00X3,00 NBR 70
    O-RING 25,00X3,00 NBR 70
  • 17
    77340022100 INTERMEDIATE STARTING GEAR
    INTERMEDIATE STARTING GEAR
  • 18
    77340028000 BEARING BOLT
    BEARING BOLT
