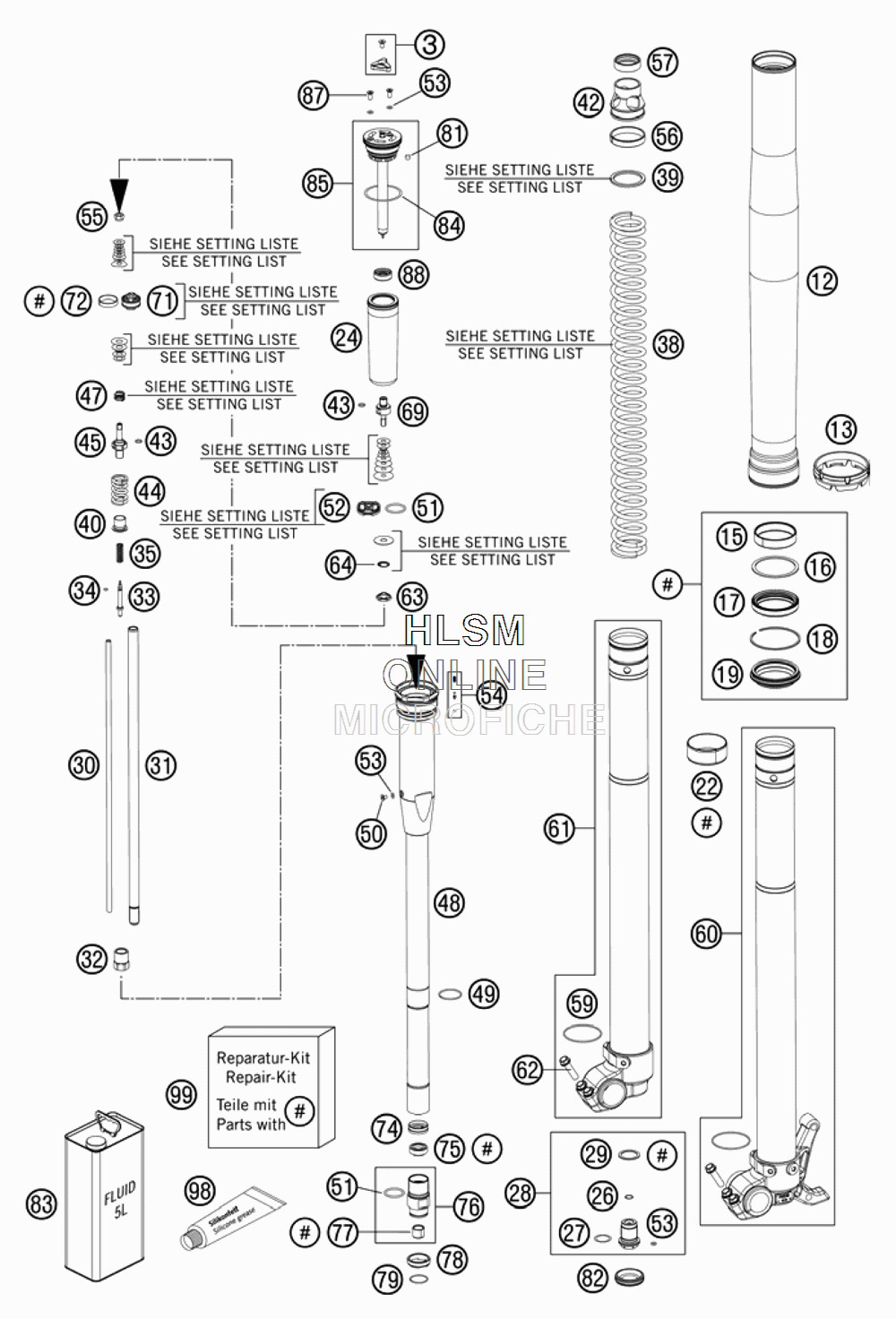

FRONT FORK DISASSEMBLED для Ktm 300 XC - 2012 года выпуска`
-
№АртикулНазвание
-
348600811S ADJUSTING KNOB + SCREWADJUSTING KNOB + SCREW
-
1248600736 OUTER TUBE L577 D54/60MM 2LOUTER TUBE L577 D54/60MM 2L
-
1348600698 FORK PROTECTION RINGFORK PROTECTION RING
-
1548601009 GUIDING BUSH 48X52X12 R11GUIDING BUSH 48X52X12 R11
-
1648600013 SUPPORT RING 50 X 57,6 X 1,5SUPPORT RING 50 X 57,6 X 1,5
-
1748600969 OIL SEAL RING D45 SKFOIL SEAL RING D45 SKF
-
1848600070 LOCK WASHER SB58LOCK WASHER SB58
-
1948600968 DUST SEAL DL D48 SKFDUST SEAL DL D48 SKF
-
2248601008 GUIDING BUSH 47X49X20 R11GUIDING BUSH 47X49X20 R11
-
2448600281 MEMBRANEMEMBRANE
-
2648600301 O-RING NBR 9,5X1,5O-RING NBR 9,5X1,5
-
2746810811 O-RING NBR 17X2 PAO-RING NBR 17X2 PA
-
2848600280S SCREW BUSH M20X1 L=33 CPL.SCREW BUSH M20X1 L=33 CPL.
-
2948600275 COPPER WASHER 20,5X26X1COPPER WASHER 20,5X26X1
-
3048600269 ADJUSTING TUBE L=371ADJUSTING TUBE L=371
-
3148600464 PISTON RODPISTON ROD
-
3248600459 COUNTERNUT M12X1 WS17COUNTERNUT M12X1 WS17
-
3348600887 REBOUND NEEDLE SXREBOUND NEEDLE SX
-
3448600298 O-RING 2X1,5 NBRO-RING 2X1,5 NBR
-
3548600444 REBOUND SPRING C=4N/MMREBOUND SPRING C=4N/MM
-
3891410010S SPRING D43.2 L485 5.2N/MMSPRING D43.2 L485 5.2N/MM
-
3891410020S SPRING 4,8N/MM SET D=5,25 MMSPRING 4,8N/MM SET D=5,25 MM
-
3891410027S SPRING 4,4 N/MM SET D=5,1MMSPRING 4,4 N/MM SET D=5,1MM
-
3891410028S SPRING 4,6 N/MM SET D=5,1MMSPRING 4,6 N/MM SET D=5,1MM
-
3891410030S SPRING 5,0 N/MMSPRING 5,0 N/MM
-
3891410059S SPRING 4,0 N/MM SETSPRING 4,0 N/MM SET
-
3891410060S SPRING 4,2 N/MM SET D=5,0MMSPRING 4,2 N/MM SET D=5,0MM
-
3948600456 SPACER 43X35X2,5SPACER 43X35X2,5
-
3948600457 SPACER 43X35X5SPACER 43X35X5
-
3948600458 SPACER 43X35X1,5SPACER 43X35X1,5
-
4048600525 GUIDING BUSH REBOUND SPRINGGUIDING BUSH REBOUND SPRING
-
4248600520 SPRING SUPPORTSPRING SUPPORT
-
4348600299 O-RING 6X1,2 NBRO-RING 6X1,2 NBR
-
4448600578 SPRING REB. L=32 C=37 DI=13,9SPRING REB. L=32 C=37 DI=13,9
-
4548600576 PISTON ROD REBOUNDPISTON ROD REBOUND
-
4748600382 SHUTTLE VALVE SPRING C=0,4SHUTTLE VALVE SPRING C=0,4
-
4848600519S3 MEMBRANE HOLDER INKL. PIN SETMEMBRANE HOLDER INKL. PIN SET
-
4948600512 LOCK WASHER D=25,5LOCK WASHER D=25,5
-
5048600542 AH SCREW M4X6AH SCREW M4X6
-
5146811499 O-RING NBR 21X2O-RING NBR 21X2
-
5248600047 PISTON COMPRESSION D=27,9PISTON COMPRESSION D=27,9
-
5350180222 O-RING NBR 4X1,5O-RING NBR 4X1,5
-
5448600977S PIN KITPIN KIT
-
5540540486 NUT M6X0,5 REBOUNDNUT M6X0,5 REBOUND
-
5648600744 GUIDE RING 44 X39GUIDE RING 44 X39
-
5748600577 RING SPRING-SUPPORTRING SPRING-SUPPORT
-
5948600113 WASHER 32X42X2,5WASHER 32X42X2,5
-
6048600863SA AXLE CLAMP LEFT + TUBE CPL.AXLE CLAMP LEFT + TUBE CPL.
-
6148600864SA AXLE CLAMP RIGHT + TUBE CPL.AXLE CLAMP RIGHT + TUBE CPL.
-
620025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
6348600885 NUT VALVE M6X0,5 LH=1,2NUT VALVE M6X0,5 LH=1,2
-
6448600202 SPRING CHECK VALVE D=0,7SPRING CHECK VALVE D=0,7
-
6948600509 PISTON ROD COMPRESSIONPISTON ROD COMPRESSION
-
7148600575 PISTON REBOUNDPISTON REBOUND
-
7248600455 PISTON RING 5X1X68PISTON RING 5X1X68
-
7448601056 RING 23,45X8,9RING 23,45X8,9
-
7548600829 SHAFT SEAL RING 12MMSHAFT SEAL RING 12MM
-
7648601055S SCREW SLEEVE M24,5X1 CPL.SCREW SLEEVE M24,5X1 CPL.
-
7748600430 DU BUSH FOR PISTON RODDU BUSH FOR PISTON ROD
-
7848600709 CHECK VALVE STOPCHECK VALVE STOP
-
7948600446 LOCK WASHER D=20LOCK WASHER D=20
-
8115080017 SILICON CAPSILICON CAP
-
8248600692 RUBBER CAP D=26,4RUBBER CAP D=26,4
-
8348600765S1 FORK OIL SAE5 5LFORK OIL SAE5 5L
-
8440140024 O-RING NBR 43X2O-RING NBR 43X2
-
8548600516S1 SCREW CAP CPL. L=125SCREW CAP CPL. L=125
-
8748600526 SCREW M4X10SCREW M4X10
-
8848600514 MEMBRANE SLEEVEMEMBRANE SLEEVE
-
98T511 SILICONE GREASE F. DUST STRIPESILICONE GREASE F. DUST STRIPE
-
99R14020 SXS SERVICE KITSXS SERVICE KIT
