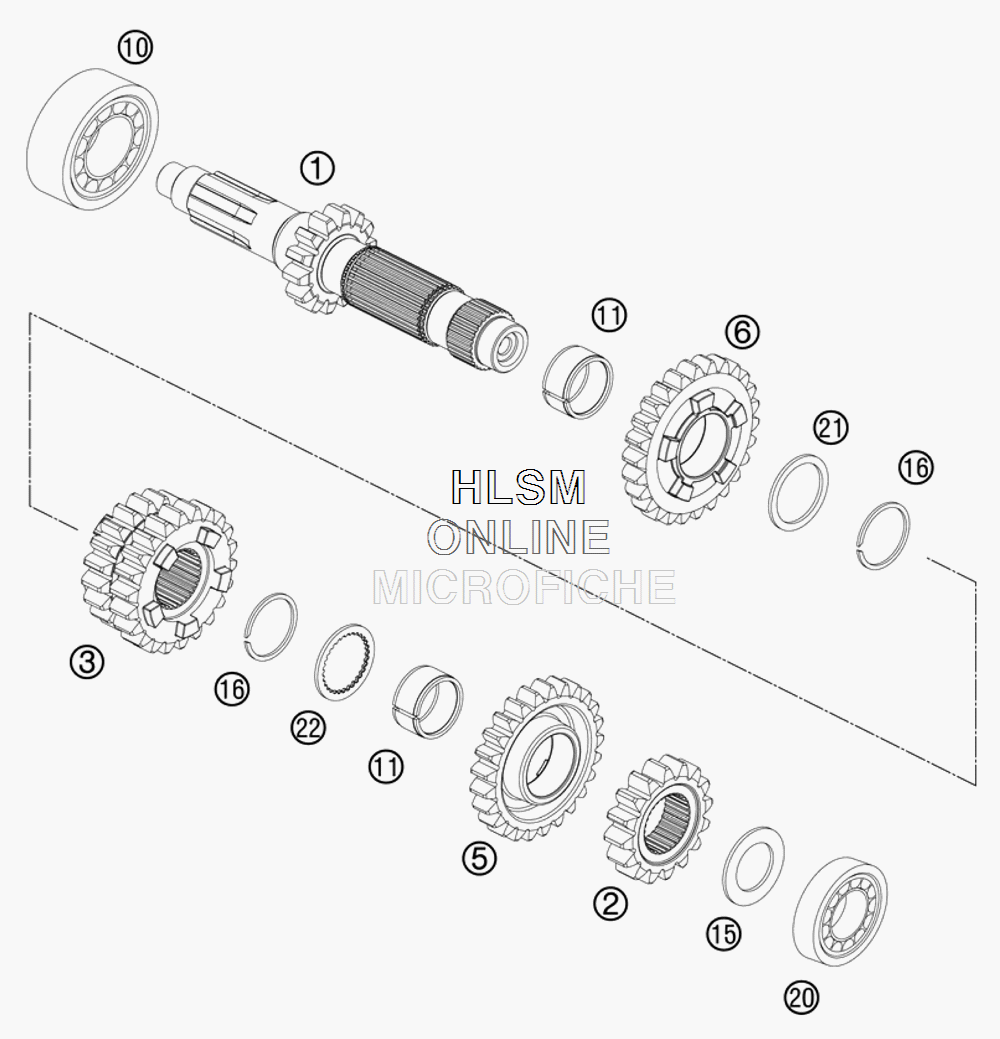

TRANSMISSION - MAIN SHAFT для Ktm 300 XC - 2012 года выпуска`
-
№АртикулНазвание
-
154833301000 MAIN SHAFT CPL.MAIN SHAFT CPL.
-
254833202000 SOLID GEARSOLID GEAR
-
354833203000 SLIDING GEAR 3./4.GANG,Z=20/22SLIDING GEAR 3./4.GANG,Z=20/22
-
554833205000 IDLER GEAR 5.G, Z =25IDLER GEAR 5.G, Z =25
-
654833206000 IDLER GEAR 6. G, Z=26IDLER GEAR 6. G, Z=26
-
100625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
110405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
1554633015000 STOP DISK 20,2X33X1,5STOP DISK 20,2X33X1,5
-
160417025000 CIRCLIP SW25CIRCLIP SW25
-
200625160040 GROOVED BALL BEAR. TM 16004 C3GROOVED BALL BEAR. TM 16004 C3
-
2154833044000 STOP DISC 25X31X1,5STOP DISC 25X31X1,5
-
2254833043000 STOP DISC 25X0,8X30X30X7HSTOP DISC 25X0,8X30X30X7H
