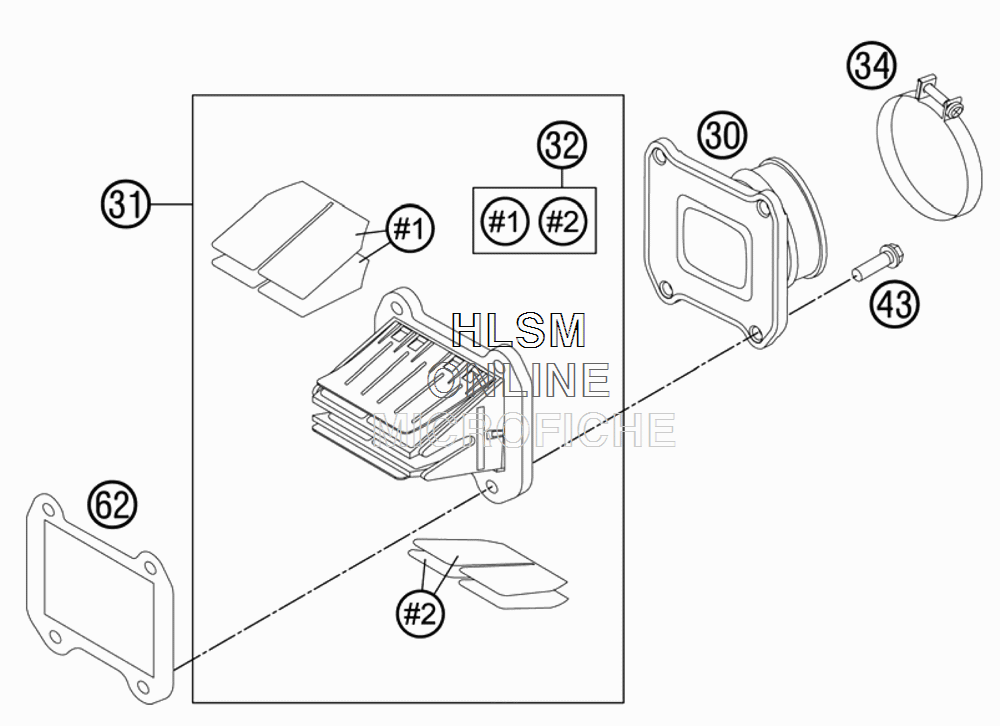

REED VALVE CASE для Ktm 250 XC-W - 2012 года выпуска
-
№АртикулНазвание
-
3054830050000 INTAKE FLANGE V-FORCEINTAKE FLANGE V-FORCE
-
3154830051544 MEMBRAN V-FORCE CPL.MEMBRAN V-FORCE CPL.
-
3254830052200 REED VALVE SET V-FORCE 46X64MMREED VALVE SET V-FORCE 46X64MM
-
3454330061000 CLAMP 52/12 GEMICLAMP 52/12 GEMI
-
430025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
6254830062200 GASKET REED VALVE CASEGASKET REED VALVE CASE
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT PISTON
- CYLINDER CYLINDER HEAD
- DECAL
- ELECTRIC STARTER
- ENGINE CASE
- EXHAUST CONTROL
- EXHAUST SYSTEM
- FRAME
- FRONT FORK DISASSEMBLED
- FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR CONTROLS
- IGNITION SYSTEM
- INSTRUMENTS / LOCK SYSTEM
- KICK STARTER
- MASK FENDERS
- REAR BRAKE CONTROL
- REAR WHEEL
- • REED VALVE CASE
- SHIFTING MECHANISM
- SHOCK ABSORBER
- SHOCK ABSORBER DISASSEMBLED
- SIDE / CENTER STAND
- SWING ARM
- TANK SEAT COVER
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
- WIRING HARNESS
