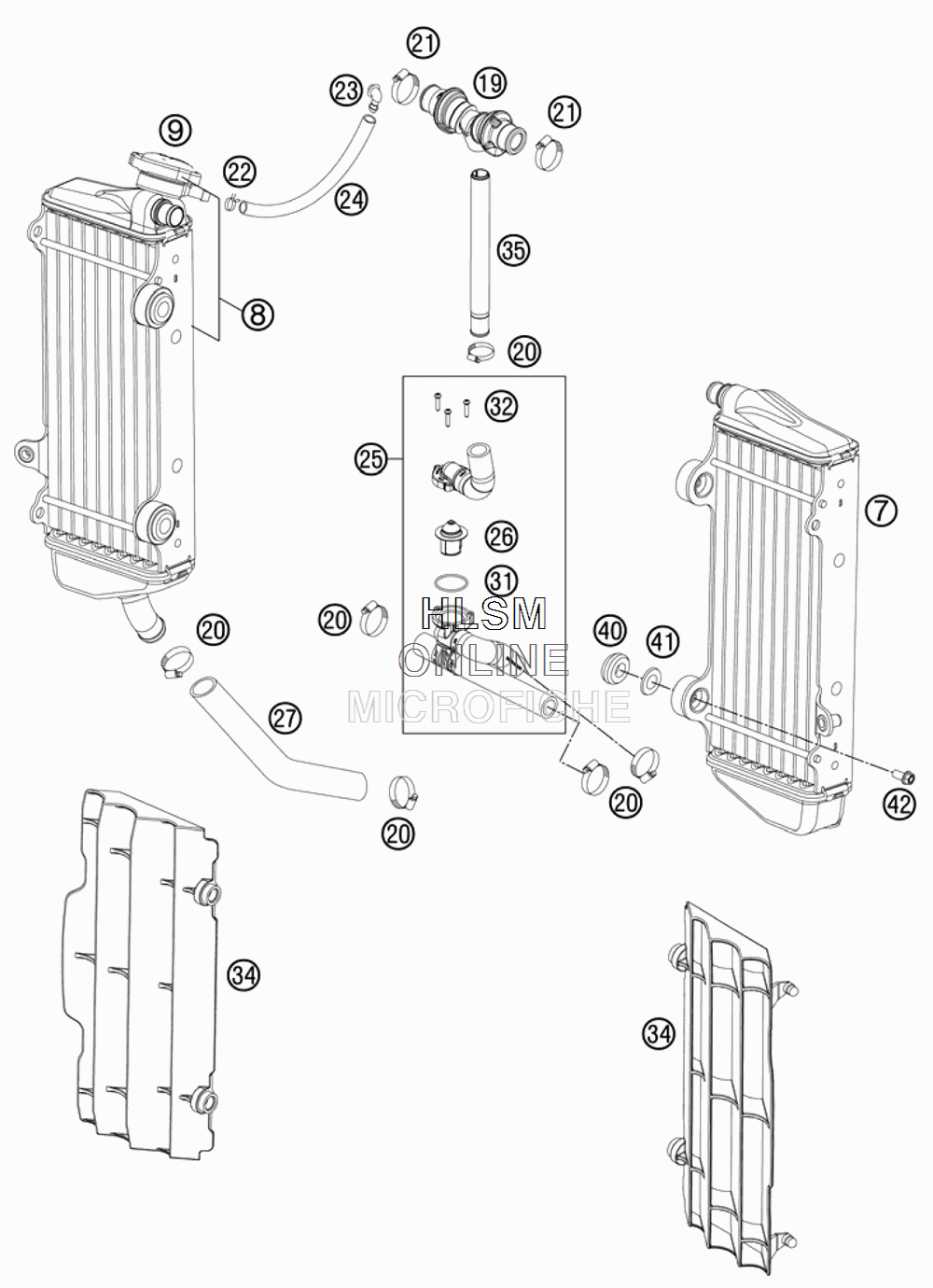

COOLING SYSTEM для Ktm 250 XC-W - 2012 года выпуска

  • №
    Артикул
    Название
  • 7
    54835007300 RADIATOR L/S "55562"
    RADIATOR L/S "55562"
  • 8
    54835008400 RADIATOR R/S "55620"
    RADIATOR R/S "55620"
  • 9
    77335016000 RADIATOR CAP SMALL 1,8 BAR
    RADIATOR CAP SMALL 1,8 BAR
  • 19
    77235071044 Y-CONNECOTOR CPL.
    Y-CONNECOTOR CPL.
  • 20
    10001020000 HOSE CLAMP GEMI 16-27
    HOSE CLAMP GEMI 16-27
  • 21
    42013037400 HOSE CLAMP NORMA 12/24
    HOSE CLAMP NORMA 12/24
  • 22
    45031005000 YDNAC-CLAMP FUEL HOSE (8MM)
    YDNAC-CLAMP FUEL HOSE (8MM)
  • 23
    50303089000 ANGLE PIECE
    ANGLE PIECE
  • 24
    50335030001 PVC-HOSE 6X9
    PVC-HOSE 6X9
  • 25
    54835526033 RADIATOR HOSE W. THERMO. 12
    RADIATOR HOSE W. THERMO. 12
  • 26
    54835017000 THERMOSTAT 55°C
    THERMOSTAT 55°C
  • 27
    54835027000 RADIATOR HOSE 18X25X130 MM
    RADIATOR HOSE 18X25X130 MM
  • 31
    0770320020 O-RING 32,00X2,00
    O-RING 32,00X2,00
  • 32
    0016040183 SCREW FOR PLASTIC D=4X18
    SCREW FOR PLASTIC D=4X18
  • 34
    7733503400004 RADIATOR PROTECTION L/S+R/S SX
    RADIATOR PROTECTION L/S+R/S SX
  • 34
    7733503400030 RADIATOR PROTECTION BLACK
    RADIATOR PROTECTION BLACK
  • 35
    54835072000 HOSE CONNECTOR 2 STROKE
    HOSE CONNECTOR 2 STROKE
  • 40
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 41
    77335001000 WASHER FOR RADIATOR
    WASHER FOR RADIATOR
  • 42
    0023060123 COLLAR SCREW REW M6X12 TX
    COLLAR SCREW REW M6X12 TX
