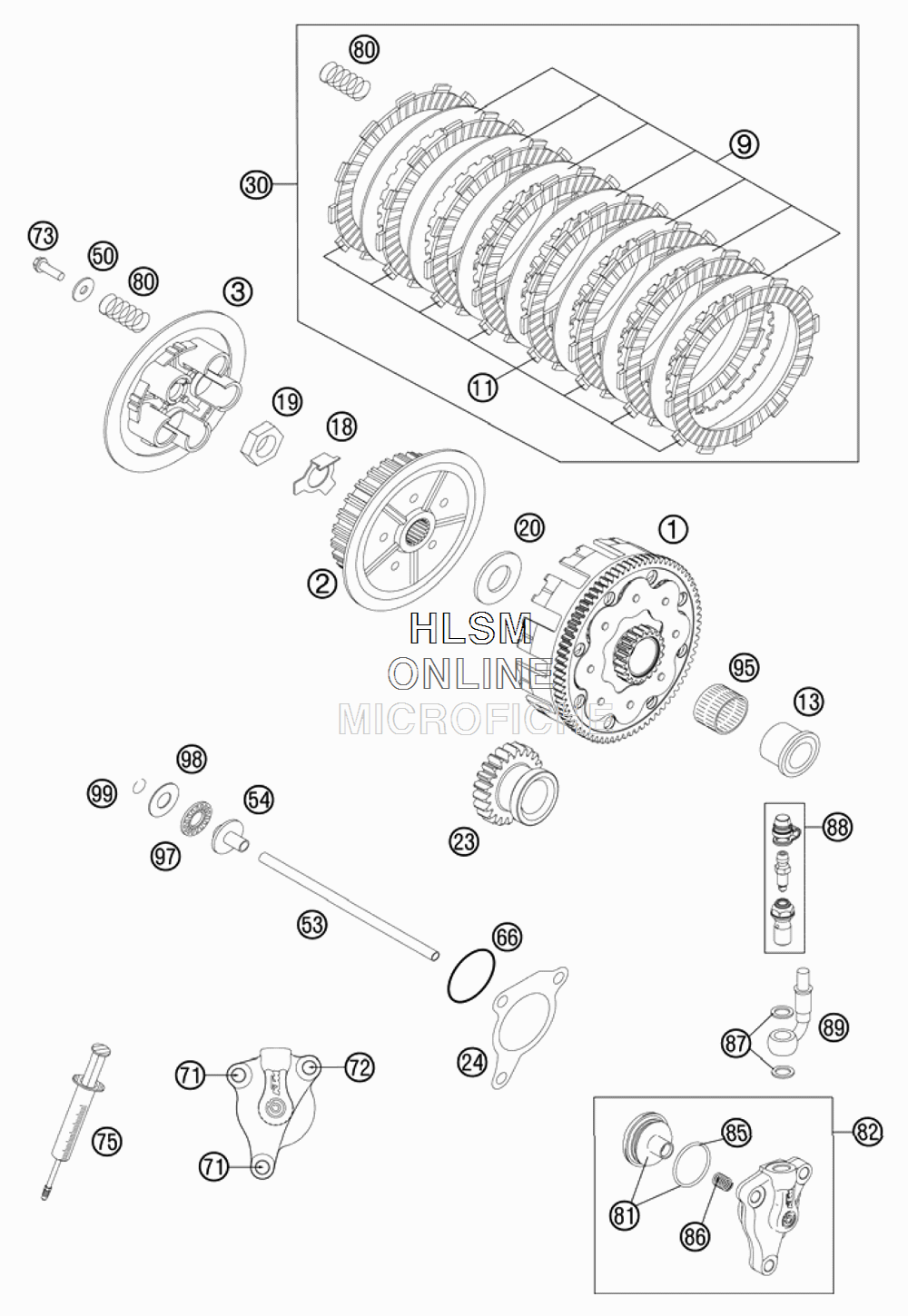

CLUTCH для Ktm 250 XC-F - 2012 года выпуска`
-
№АртикулНазвание
-
177032001100 OUTER CLUTCH CPL.OUTER CLUTCH CPL.
-
277032002100 INNER CLUTCH HUBINNER CLUTCH HUB
-
377032003100 PRESSURE PLATEPRESSURE PLATE
-
977032010000 INTERMEDI. DISC STEELINTERMEDI. DISC STEEL
-
1177032011000 LINING DISC 3,0MMLINING DISC 3,0MM
-
1350332013000 INNER RING 20X26X25,9INNER RING 20X26X25,9
-
1850332018000 SHEET METAL LOCK 1,5MMSHEET METAL LOCK 1,5MM
-
190936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
2050332020000 STOP DISK 20X39,6X3STOP DISK 20X39,6X3
-
2377132000022 PRIMARY GEAR 22T.PRIMARY GEAR 22T.
-
2459032065000 GASKET FOR SLAVE CYLINDERGASKET FOR SLAVE CYLINDER
-
3077032011010 CLUTCH KITCLUTCH KIT
-
5050232050000 WASHER 6,2X18X2WASHER 6,2X18X2
-
5377032054000 PUSH ROD 05PUSH ROD 05
-
5450332054051 PRESSURE PIECE 125-380PRESSURE PIECE 125-380
-
660770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
710025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
720025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
730025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
7550329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
8077032005000 CLUTCH SPRINGCLUTCH SPRING
-
8154832066000 PISTON CPL.PISTON CPL.
-
8254832061044 OUTPUT CYLINDER CPL.OUTPUT CYLINDER CPL.
-
8554832067000 O-RINGO-RING
-
8654832069000 PRESSURE SPRINGPRESSURE SPRING
-
8742013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
8862513020000 BLEEDER SCREW CPL.BLEEDER SCREW CPL.
-
8954832063000 CLUTCH PIPECLUTCH PIPE
-
9556532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
9754637097200 AXIAL NEEDLE BEARING AXK 1226AXIAL NEEDLE BEARING AXK 1226
-
9854637098200 AXIAL WASHER AS1226 12X26X1AXIAL WASHER AS1226 12X26X1
-
990993012000 CIRCLIP DIN7993--RW12CIRCLIP DIN7993--RW12
