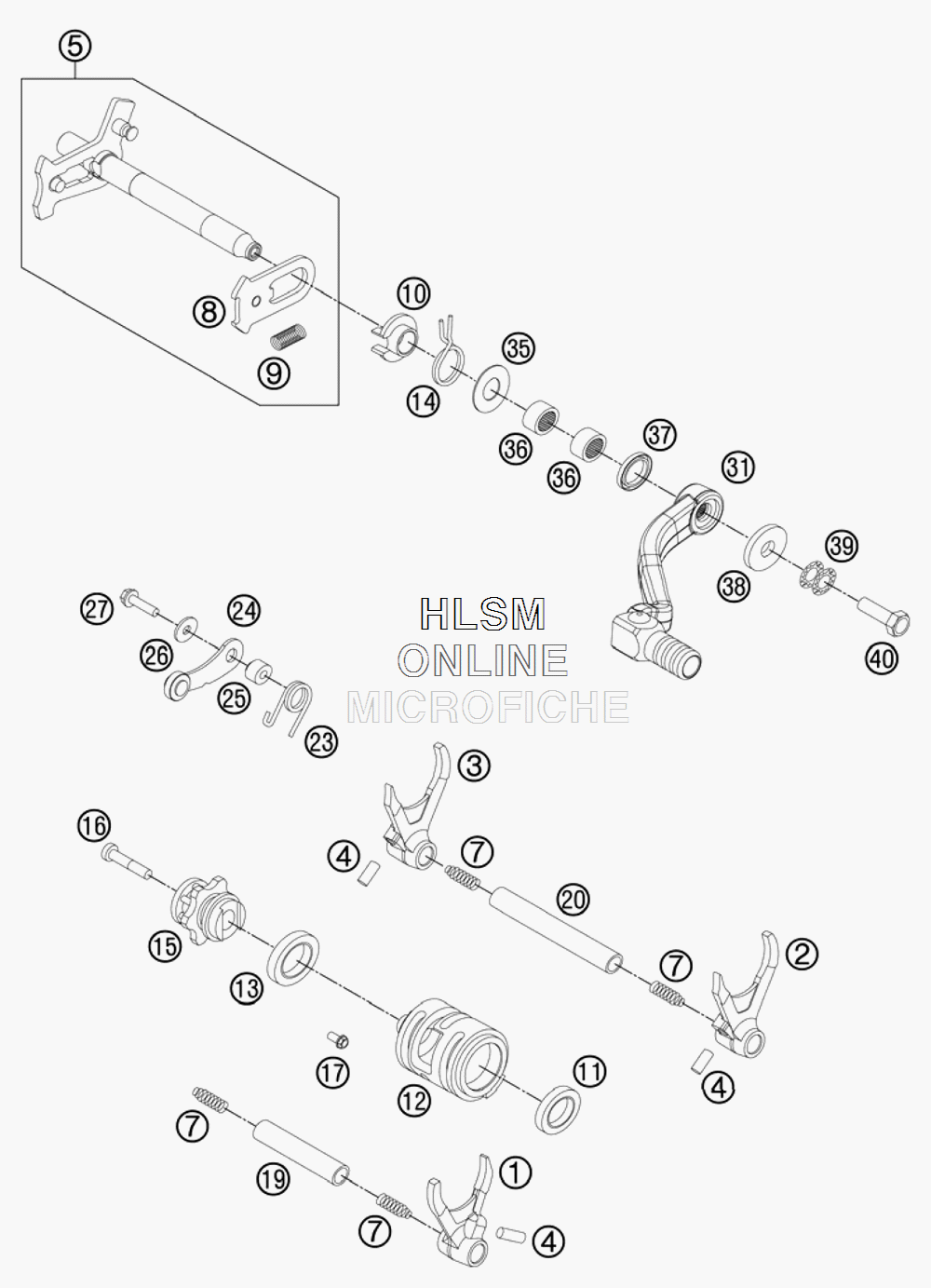

SHIFTING MECHANISM для Ktm 250 XC-F - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    77034001000 SHIFTING FORK 5TH/6TH GEAR
    SHIFTING FORK 5TH/6TH GEAR
  • 2
    77034002000 SHIFTING FORK 2ND/3RD GEAR
    SHIFTING FORK 2ND/3RD GEAR
  • 3
    77034003000 SHIFTING FORK 1ST/4TH GEAR
    SHIFTING FORK 1ST/4TH GEAR
  • 4
    0402061480 NEEDLE ROLLER DIN5402 6X14,8
    NEEDLE ROLLER DIN5402 6X14,8
  • 5
    77034005044 SHIFTING SHAFT CPL.
    SHIFTING SHAFT CPL.
  • 7
    58038023200 PRESSURE SPRING 0,9MM
    PRESSURE SPRING 0,9MM
  • 8
    54634008044 SLIDING PLATE CPL.
    SLIDING PLATE CPL.
  • 9
    56534013100 TENSIONING SPRING 0,8MM
    TENSIONING SPRING 0,8MM
  • 10
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 11
    0625069034 BALL BEARING 6903 C4
    BALL BEARING 6903 C4
  • 12
    77034012000 SHIFT ROLLER
    SHIFT ROLLER
  • 13
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 14
    54634014100 RETURN SPRING 2,2MM
    RETURN SPRING 2,2MM
  • 15
    77034015144 SHIFT LOCATING DRUM CPL.
    SHIFT LOCATING DRUM CPL.
  • 16
    0012060303 AH SCREW DIN6912 M6X30 8.8
    AH SCREW DIN6912 M6X30 8.8
  • 17
    0025060086 HH COLLAR SCREW M6X8 TX30
    HH COLLAR SCREW M6X8 TX30
  • 19
    54834019000 SHIFT. RAIL MAIN SHAFT
    SHIFT. RAIL MAIN SHAFT
  • 20
    77034019000 SHIFTING MAIN L=93MM
    SHIFTING MAIN L=93MM
  • 23
    77034023000 LOCKING LEVER SPRING
    LOCKING LEVER SPRING
  • 24
    77034024044 LOCKING LEVER CPL.
    LOCKING LEVER CPL.
  • 25
    54634052300 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 26
    0349000050 WASHER DIN7349-5X15X2
    WASHER DIN7349-5X15X2
  • 27
    0025050206 HH COLLAR SCREW M5X20 TX30
    HH COLLAR SCREW M5X20 TX30
  • 31
    59034031000 SHIFT LEVER CPL.RACING
    SHIFT LEVER CPL.RACING
  • 35
    54634050000 STOP DISK 14X30X1
    STOP DISK 14X30X1
  • 36
    54632095000 NEEDLE BEAR.HK 1412 14X20X12
    NEEDLE BEAR.HK 1412 14X20X12
  • 37
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 38
    50232050001 STEEL WASHER 6,4X17X3
    STEEL WASHER 6,4X17X3
  • 39
    50233041000 PAIR OF WASHERS M 6 NORDLOCK
    PAIR OF WASHERS M 6 NORDLOCK
  • 40
    59009062016 SPECIAL SCREW M6X16 WS=8 10.9
    SPECIAL SCREW M6X16 WS=8 10.9
