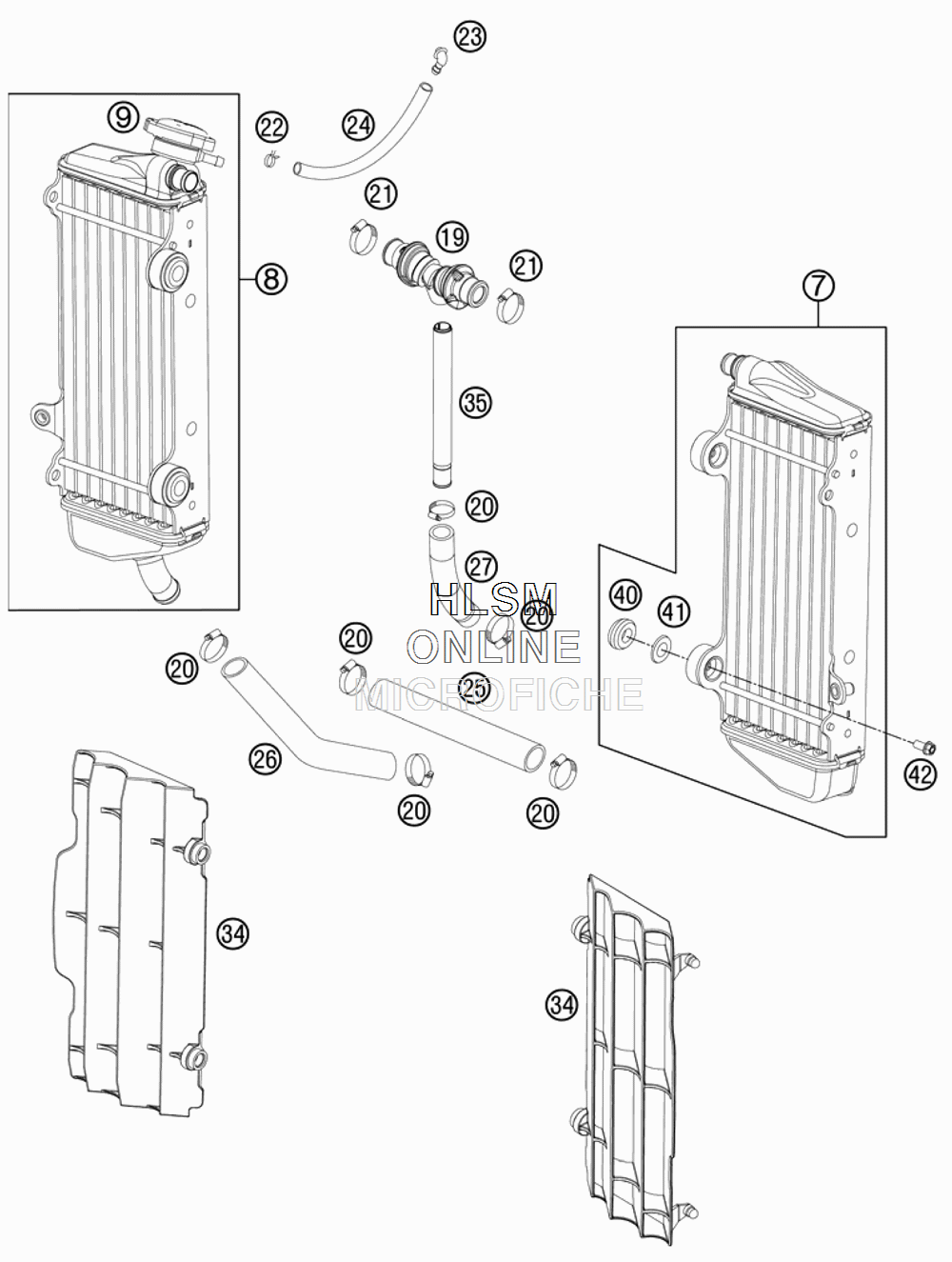

COOLING SYSTEM для Ktm 250 SX - 2012 года выпуска`
-
№АртикулНазвание
-
754835007200 RADIATOR LEFT "VW1595"RADIATOR LEFT "VW1595"
-
854835008300 RADIATOR RIGHT 45620URADIATOR RIGHT 45620U
-
977335016000 RADIATOR CAP SMALL 1,8 BARRADIATOR CAP SMALL 1,8 BAR
-
1977235071044 Y-CONNECOTOR CPL.Y-CONNECOTOR CPL.
-
2010001020000 HOSE CLAMP GEMI 16-27HOSE CLAMP GEMI 16-27
-
2142013037400 HOSE CLAMP NORMA 12/24HOSE CLAMP NORMA 12/24
-
2245031005000 YDNAC-CLAMP FUEL HOSE (8MM)YDNAC-CLAMP FUEL HOSE (8MM)
-
2350303089000 ANGLE PIECEANGLE PIECE
-
2450335030001 PVC-HOSE 6X9PVC-HOSE 6X9
-
2556535025001 RADIATOR HOSE 18X25 PER METRERADIATOR HOSE 18X25 PER METRE
-
2654835524000 RADIATOR HOSERADIATOR HOSE
-
2754835027000 RADIATOR HOSE 18X25X130 MMRADIATOR HOSE 18X25X130 MM
-
347733503400030 RADIATOR PROTECTION BLACKRADIATOR PROTECTION BLACK
-
3577235073000 HOSE CONNECTOR L=172,5HOSE CONNECTOR L=172,5
-
4041001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
4177335001000 WASHER FOR RADIATORWASHER FOR RADIATOR
-
420023060123 COLLAR SCREW REW M6X12 TXCOLLAR SCREW REW M6X12 TX
