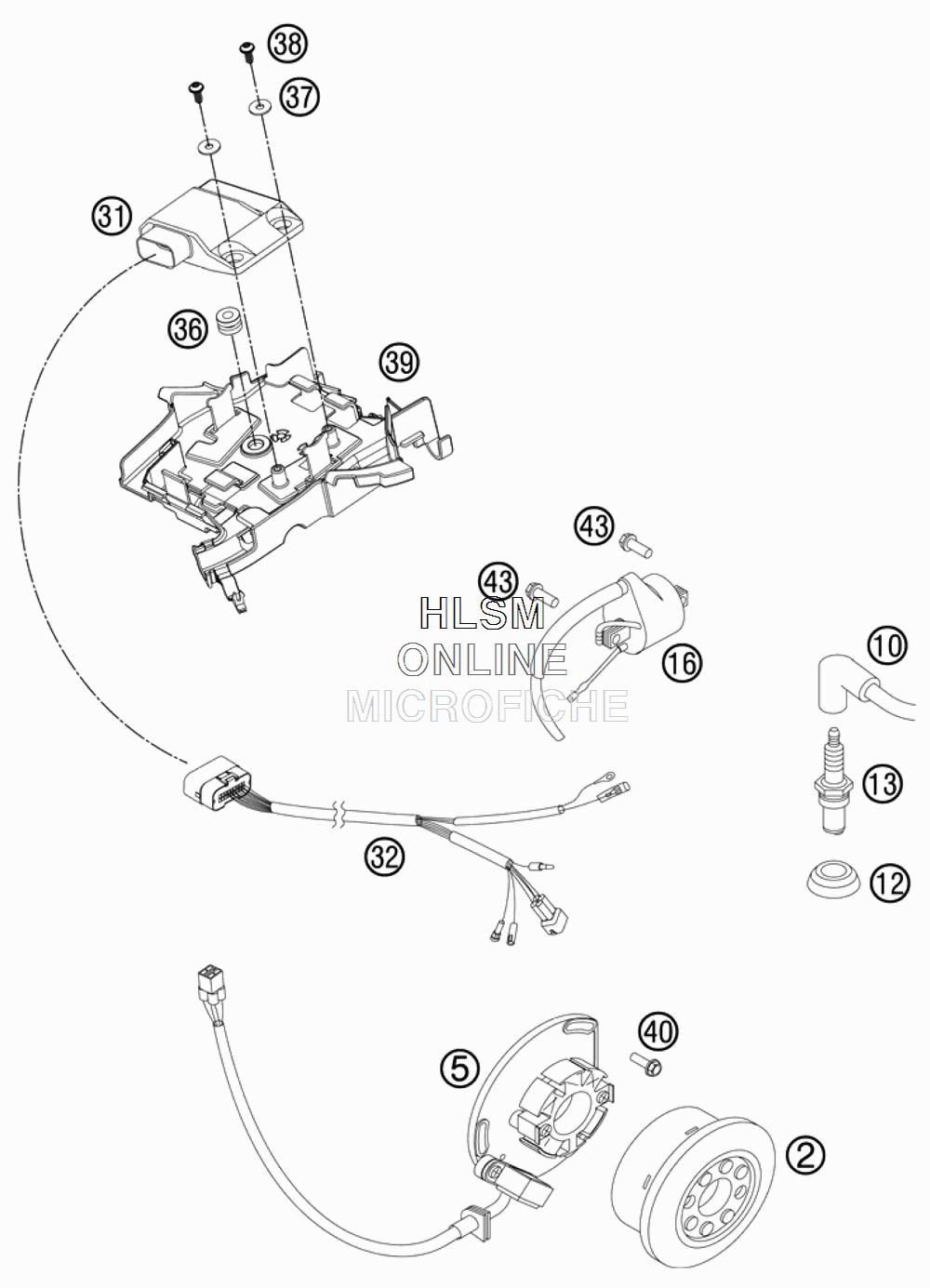

IGNITION SYSTEM для Ktm 250 SX - 2012 года выпуска

  • №
    Артикул
    Название
  • 2
    54739005144 FLYWHEEL KOKUSAN 2K-2 CPL.
    FLYWHEEL KOKUSAN 2K-2 CPL.
  • 5
    54839004000 STATOR KOKUSAN 2K-1
    STATOR KOKUSAN 2K-1
  • 10
    47039090000 SPARK PLUG CAP NGK REINFORC.
    SPARK PLUG CAP NGK REINFORC.
  • 12
    50231012000 SEALING CUP FOR SPARK PLUG
    SEALING CUP FOR SPARK PLUG
  • 13
    54331093410 SPARK PLUG NGK BR8ECM
    SPARK PLUG NGK BR8ECM
  • 16
    59039006000 IGNITIONCOIL "IG5128"
    IGNITIONCOIL "IG5128"
  • 31
    54839031800 CDI UNIT
    CDI UNIT
  • 32
    54839032200 WIRING HARNESS FOR CDI 2-ST.
    WIRING HARNESS FOR CDI 2-ST.
  • 36
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 37
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 38
    0081050121 SCREW FOR PLASTIC K50X12 T20
    SCREW FOR PLASTIC K50X12 T20
  • 39*
    51511094000 ELECTRIC BOX
    ELECTRIC BOX
  • 40
    0025050166 HH COLLAR SCREW M5X16 TX30
    HH COLLAR SCREW M5X16 TX30
  • 43
    0025060166 HH COLLAR SCREW W M6X 16 TX30
    HH COLLAR SCREW W M6X 16 TX30
