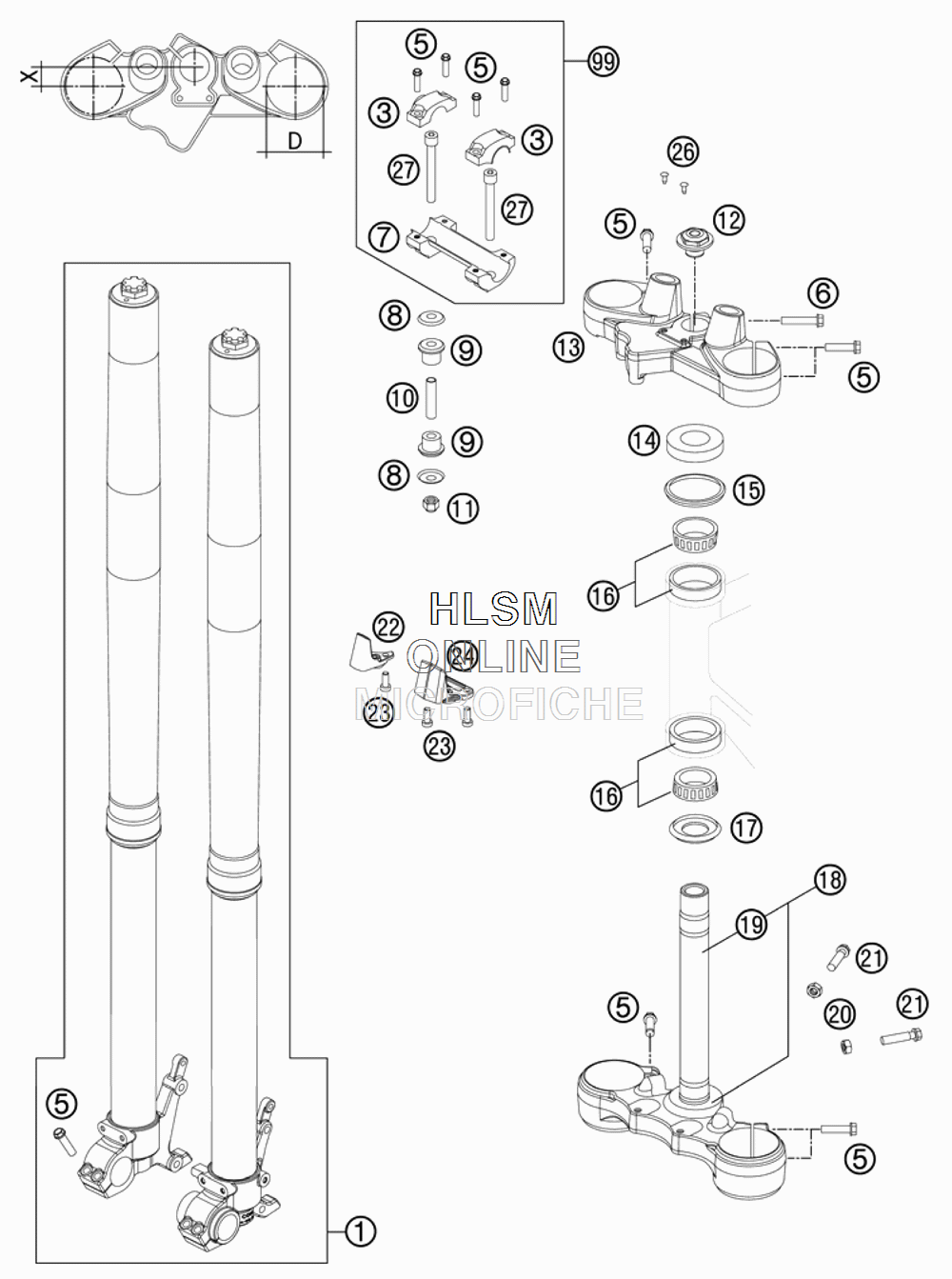

FRONT FORK TRIPLE CLAMP для Ktm 990 ADVENTURE R - 2011 года выпуска`
-
№АртикулНазвание
-
114187K2501 FRONT FORKFRONT FORK
-
35900103830001S HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
50025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
60025080356 HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
75900103920001S HANDLEBAR SUPPORT 28MMHANDLEBAR SUPPORT 28MM
-
856401042000 WASHER 10,5X32X2WASHER 10,5X32X2
-
956401040000 RUBBER BUSHINGRUBBER BUSHING
-
1056401041100 SPACER TUBE 10,2X12X44SPACER TUBE 10,2X12X44
-
110982100003 SELF LOCK.NUT DIN0982-M10 HIGHSELF LOCK.NUT DIN0982-M10 HIGH
-
1254801036200 STEER.HEAD SCREW M20X1,5 SW=27STEER.HEAD SCREW M20X1,5 SW=27
-
136000103401801S TOP TRIPLE CLAMP X=18MM/D=54MMTOP TRIPLE CLAMP X=18MM/D=54MM
-
1454201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
1554601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
1654201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
1754601084100 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
186000103201801S BOTTOM TRIPLE CLAMP CPL. D=60BOTTOM TRIPLE CLAMP CPL. D=60
-
1960001033000 FORK TUBE LC8 ADVFORK TUBE LC8 ADV
-
200934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
210933080253 HH SCREW DIN0933-M 8X25HH SCREW DIN0933-M 8X25
-
2260101077000 BRAKE HOSE GUIDE TOPBRAKE HOSE GUIDE TOP
-
230012060164 AH SCREW DIN6912 M6X16 SLAH SCREW DIN6912 M6X16 SL
-
2460101079000 CABLE GUIDECABLE GUIDE
-
2660103088000 PLUG ZK 8/5PLUG ZK 8/5
-
270984100703 AH SCREW DIN6912-M10X70AH SCREW DIN6912-M10X70
-
9900050000922 HANDLEBAR SUPPORT KITHANDLEBAR SUPPORT KIT
