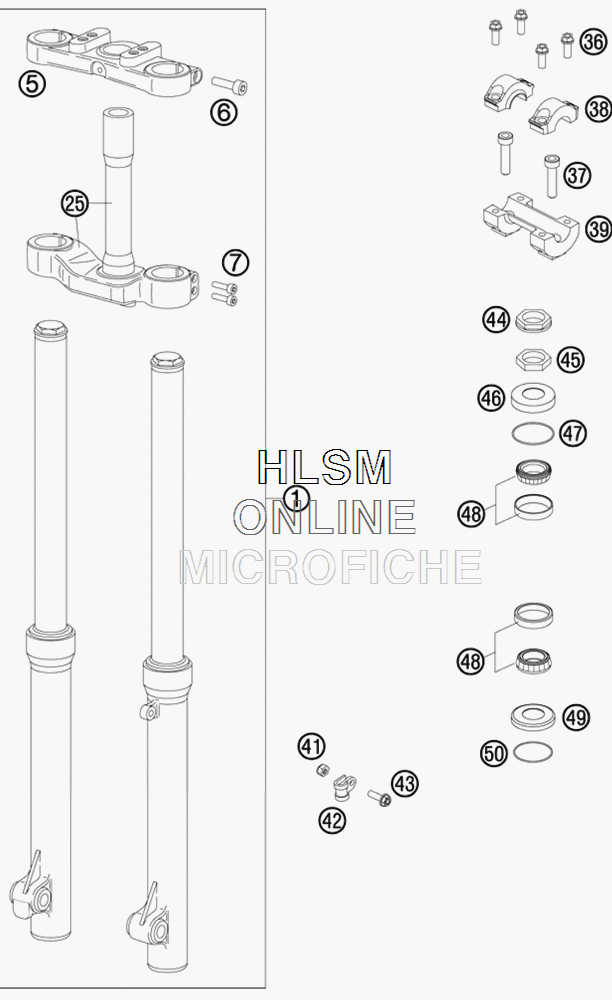

FRONT FORK TRIPLE CLAMP для Ktm 50 SX - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    45101000644 FORK CPL. SX SEN. MARZ.
    FORK CPL. SX SEN. MARZ.
  • 5
    7501498A TOP FORK PLATE 50 LC SEN.
    TOP FORK PLATE 50 LC SEN.
  • 6
    0912080303 AH SCREW DIN0912-M 8X30
    AH SCREW DIN0912-M 8X30
  • 7
    0912060253 AH SCREW DIN0912-M 6X25
    AH SCREW DIN0912-M 6X25
  • 25
    77051264 BOTTOM TRIP. CLAMP CPL.
    BOTTOM TRIP. CLAMP CPL.
  • 36
    0025080306 HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
  • 37
    0912100250 AH SCREW DIN6912-M10X25,10.9,L
    AH SCREW DIN6912-M10X25,10.9,L
  • 38
    50301038000 HANDLEBAR CLAMP D=22MM
    HANDLEBAR CLAMP D=22MM
  • 39
    45101039000 HANDLEBAR SUPPORT D=22MM
    HANDLEBAR SUPPORT D=22MM
  • 41
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 42
    45001070000 BRAKE CABLE CLAMP RSGU 9/12
    BRAKE CABLE CLAMP RSGU 9/12
  • 43
    0025050206 HH COLLAR SCREW M5X20 TX30
    HH COLLAR SCREW M5X20 TX30
  • 44
    59030029000 HH NUT M20X1,5 WS=27 RIGHT
    HH NUT M20X1,5 WS=27 RIGHT
  • 45
    46001043000 STEERING HEAD NUT M20X1,5
    STEERING HEAD NUT M20X1,5
  • 46
    49001086000 COVERING CAP
    COVERING CAP
  • 47
    0770021300 O-RING 40,94X2,62 NBR70
    O-RING 40,94X2,62 NBR70
  • 48
    49001081000 TAPERED ROLLER BEARING 32004X
    TAPERED ROLLER BEARING 32004X
  • 49
    46001086000 PROTECTION RING 20,1X39X5
    PROTECTION RING 20,1X39X5
  • 50
    0770360030 O-RING 36,00X3,00 NBR
    O-RING 36,00X3,00 NBR
