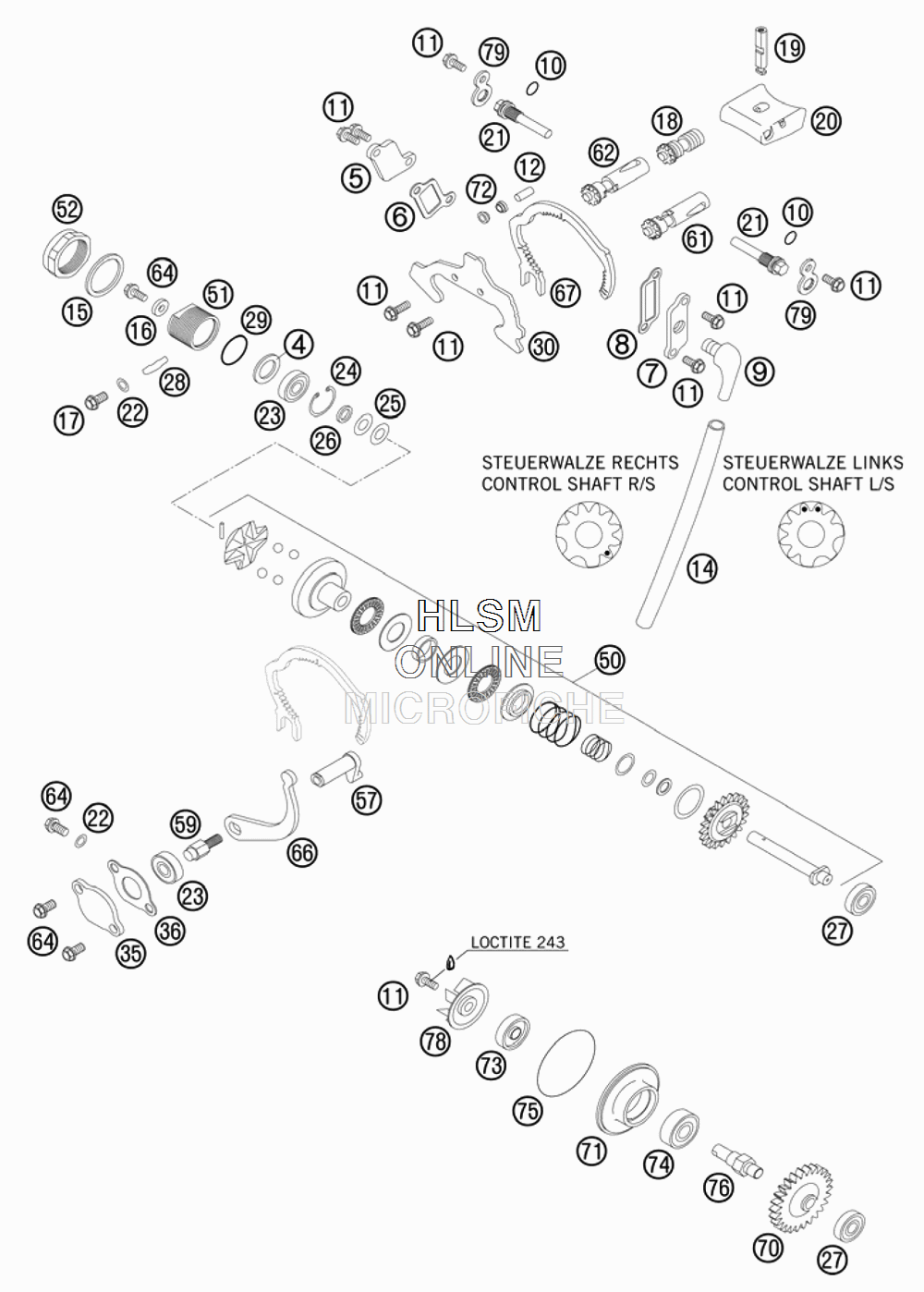

EXHAUST CONTROL для Ktm 150 XC - 2011 года выпуска
-
№АртикулНазвание
-
449033031015 STOP DISK 14,2X22X1,5STOP DISK 14,2X22X1,5
-
550337005100 SIDE COVER R/SSIDE COVER R/S
-
650337006100 GASKET SIDE COVER R/SGASKET SIDE COVER R/S
-
750337007200 SIDE COVER LEFTSIDE COVER LEFT
-
850337008100 GASKET SIDE COVER L/SGASKET SIDE COVER L/S
-
950330022000 ANGLE PIEC 90 DEGREE M10X1ANGLE PIEC 90 DEGREE M10X1
-
100770008020 O-RING 8,00X2,00 NBRO-RING 8,00X2,00 NBR
-
110014050123 HH COLLAR SCREW M 5X12 WS=6HH COLLAR SCREW M 5X12 WS=6
-
120402051600 NEEDLE ROL. DIN5402 NRB 5X15,8NEEDLE ROL. DIN5402 NRB 5X15,8
-
1450332095200 TUBE RUBBER 6X9 DVOH 200MMTUBE RUBBER 6X9 DVOH 200MM
-
150603262322 CU-SEAL RING DIN7603-26X32X2CU-SEAL RING DIN7603-26X32X2
-
1650337050064 WASHER 5,2 X 12 X 3WASHER 5,2 X 12 X 3
-
170025060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
1850337018044 ECCENTRIC FOR CRANKBOLTECCENTRIC FOR CRANKBOLT
-
1950337019000 CRANK BOLT F.CONTROL FL.CRANK BOLT F.CONTROL FL.
-
2051537020144 CONTROL FLAP 144 CPL.CONTROL FLAP 144 CPL.
-
2150337021100 AXLE FOR CONTRIL FLAPAXLE FOR CONTRIL FLAP
-
220603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
230625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
240472022100 CIRCLIP DIN0472-22X1CIRCLIP DIN0472-22X1
-
250093821606 WASHER DIN2093-8,2X16X0,6WASHER DIN2093-8,2X16X0,6
-
2650337050063 SPACER BUSHING 8X12X2,3SPACER BUSHING 8X12X2,3
-
270625006082 BALL BEARING 608 RS C3BALL BEARING 608 RS C3
-
2800099300011 O-RINGSTRING 4MM NBR 70 PER/MO-RINGSTRING 4MM NBR 70 PER/M
-
290770160030 O-RING 16,00X3,00 NBR 70O-RING 16,00X3,00 NBR 70
-
3050337030000 SHEET METAL GUIDE 3MMSHEET METAL GUIDE 3MM
-
3550337035000 CLOSING COVERCLOSING COVER
-
3650337035050 CLOSING COVER GASKET 1MMCLOSING COVER GASKET 1MM
-
5050337050044 CENTRIFUGAL TIMER CPL.CENTRIFUGAL TIMER CPL.
-
5150337050062 BUSHING HOLDER M 26X1BUSHING HOLDER M 26X1
-
5250337050061 CLOSING NUT M 26X1 WS=30CLOSING NUT M 26X1 WS=30
-
5750337057000 CONTROL LEVERCONTROL LEVER
-
5950337059000 CONTROL SHAFT M 6 WS=10CONTROL SHAFT M 6 WS=10
-
6150337061144 CONTROL SHAFT CPL.L/S 125CONTROL SHAFT CPL.L/S 125
-
6250337062144 CONTROL SHAFT CPL.R/S 125CONTROL SHAFT CPL.R/S 125
-
640025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
6650337066000 LEVER F. CONTROL SEGMENTLEVER F. CONTROL SEGMENT
-
6750337067000 CONTROL SHAFT SEGMENTCONTROL SHAFT SEGMENT
-
7050335054026 DRIVE WHEEL 26-TDRIVE WHEEL 26-T
-
7150335056000 BUSHING SUPPORT WATER PUMPBUSHING SUPPORT WATER PUMP
-
7250337072000 ROLLER GUIDE 5X6,1X8X4ROLLER GUIDE 5X6,1X8X4
-
730760082472 SHAFT SEAL RING 8X24X7 A DUOSHAFT SEAL RING 8X24X7 A DUO
-
740625060001 BALL BEARING 6000/C3BALL BEARING 6000/C3
-
750770049025 O-RING 49,00X2,50 NBRO-RING 49,00X2,50 NBR
-
7650335054150 WATER PUMP SHAFTWATER PUMP SHAFT
-
7854835005000 WATER PUMP WHEELWATER PUMP WHEEL
-
7950337079000 LOCK METAL SHEET 2MMLOCK METAL SHEET 2MM
