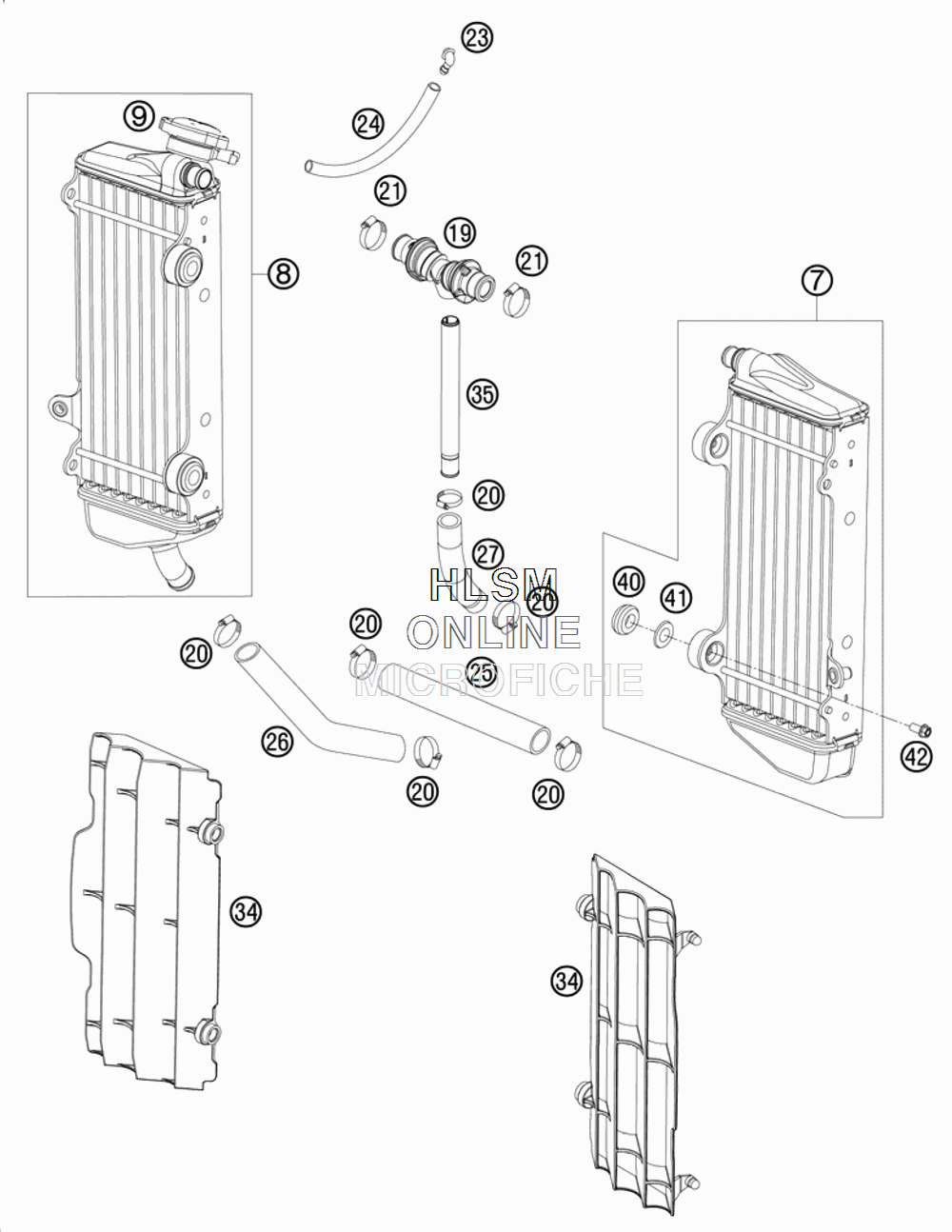

COOLING SYSTEM для Ktm 150 XC - 2011 года выпуска

  • №
    Артикул
    Название
  • 7
    54835007200 RADIATOR LEFT "VW1595"
    RADIATOR LEFT "VW1595"
  • 8
    54835008300 RADIATOR RIGHT 45620U
    RADIATOR RIGHT 45620U
  • 9
    77335016000 RADIATOR CAP SMALL 1,8 BAR
    RADIATOR CAP SMALL 1,8 BAR
  • 19
    77235071044 Y-CONNECOTOR CPL.
    Y-CONNECOTOR CPL.
  • 20
    10001020000 HOSE CLAMP GEMI 16-27
    HOSE CLAMP GEMI 16-27
  • 21
    42013037400 HOSE CLAMP NORMA 12/24
    HOSE CLAMP NORMA 12/24
  • 23
    50303089000 ANGLE PIECE
    ANGLE PIECE
  • 24
    31007107001 PVC-HOSE 6X9 MM PER METER
    PVC-HOSE 6X9 MM PER METER
  • 25
    56535025001 RADIATOR HOSE 18X25 PER METRE
    RADIATOR HOSE 18X25 PER METRE
  • 26
    50335027000 RADIATOR HOSE 18X25
    RADIATOR HOSE 18X25
  • 27
    51535024000 PREFORMED HOSE
    PREFORMED HOSE
  • 34
    7733503400030 RADIATOR PROTECTION BLACK
    RADIATOR PROTECTION BLACK
  • 35
    77235073000 HOSE CONNECTOR L=172,5
    HOSE CONNECTOR L=172,5
  • 40
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 41
    77335001000 WASHER FOR RADIATOR
    WASHER FOR RADIATOR
  • 42
    0023060123 COLLAR SCREW M6X12
    COLLAR SCREW M6X12
