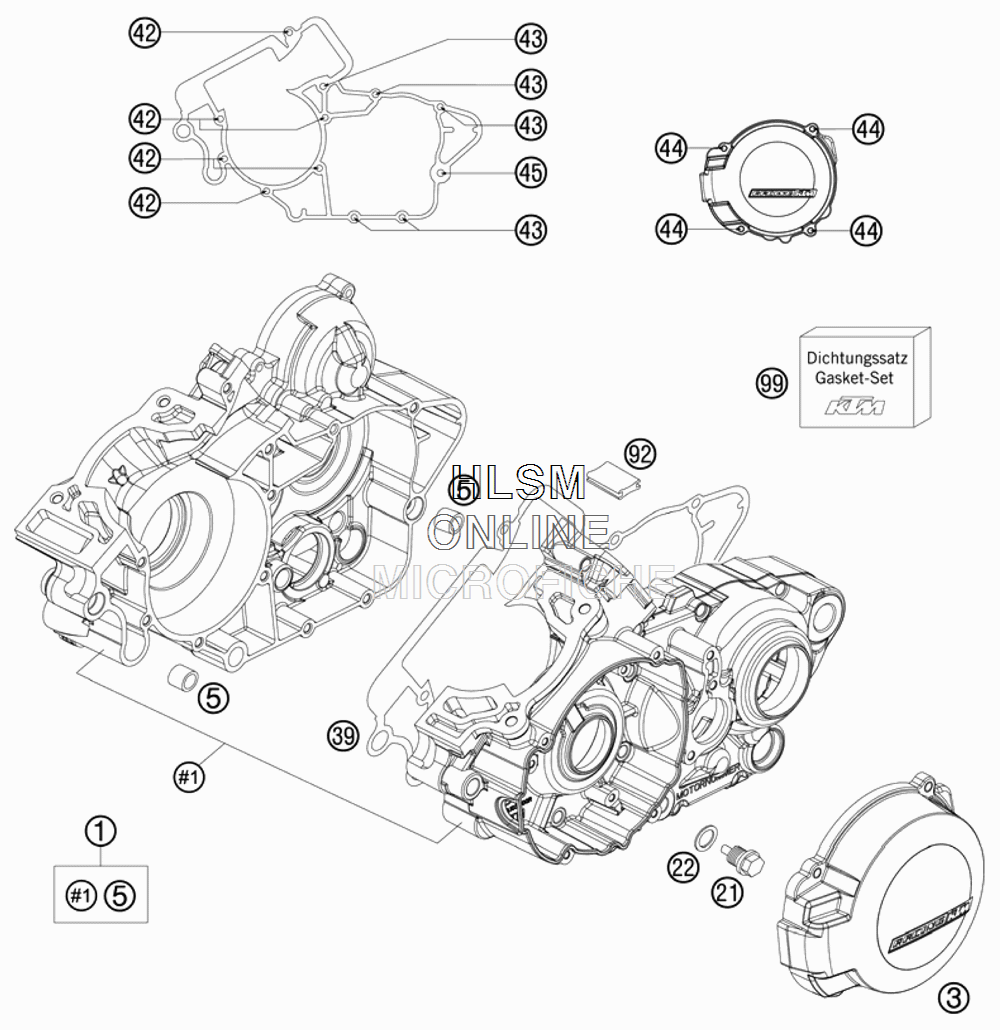

ENGINE CASE для Ktm 150 SX - 2011 года выпуска`
-
№АртикулНазвание
-
151530000044 ENGINE CASE CPL W.TRAN.BEAR.ENGINE CASE CPL W.TRAN.BEAR.
-
350330002400 IGNITION COVERIGNITION COVER
-
554630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
2158030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
2258038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
3950330039000 ENGINE CASE GASKET 0,5MM '98ENGINE CASE GASKET 0,5MM '98
-
420025060506 HH COLLAR SCREW M6X50 TX30HH COLLAR SCREW M6X50 TX30
-
430025060556 HH COLLAR SCREW M6X55 TX30HH COLLAR SCREW M6X55 TX30
-
440014050163 HH COLLAR SCREW M 5X16 WS-=6HH COLLAR SCREW M 5X16 WS-=6
-
450025060606 HH COLLAR SCREW M6X60 TX30HH COLLAR SCREW M6X60 TX30
-
9250330092000 OIL GUARD GROMMET 25X31OIL GUARD GROMMET 25X31
-
9950330099200 GASKET KIT 125GASKET KIT 125
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURATOR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT PISTON
- CYLINDER CYLINDER HEAD
- DECAL
- • ENGINE CASE
- EXHAUST CONTROL
- EXHAUST SYSTEM
- FRAME
- FRONT FORK DISSASSEMBLED
- FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR CONTROL
- IGNITION SYSTEM
- KICK STARTER
- MASK FENDERS
- REAR BRAKE CONTROL
- REAR WHEEL
- REED VALVE CASE
- SHIFTING MECHANISM
- SHOCK ABSORBER
- SHOCK ABSORBER DISASSEMBLED
- SWING ARM
- TANK SEAT COVER
- TRANSMISSION I - MAIN SHAFT
- TRANSMISSION II - COUNTERSHAFT
