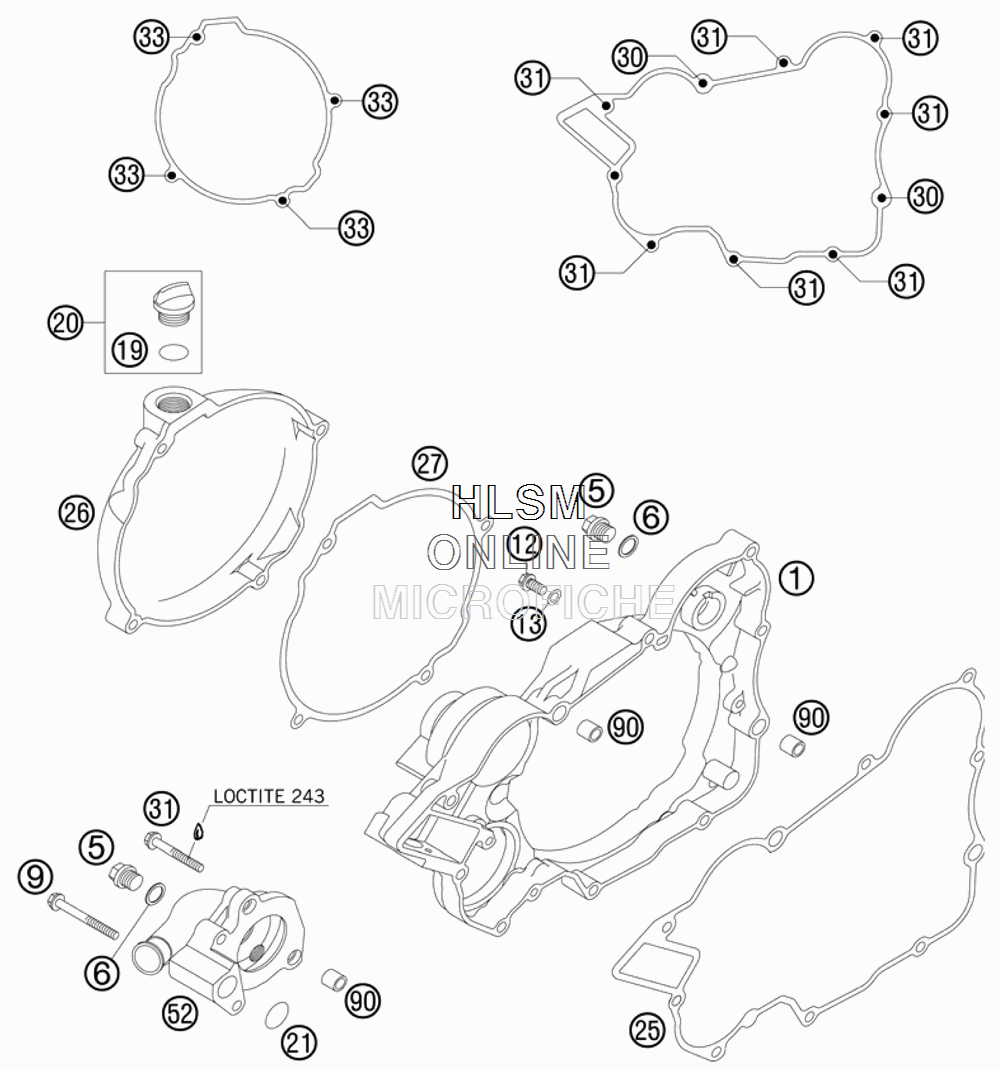

CLUTCH COVER для Ktm 150 SX - 2011 года выпуска`
-
№АртикулНазвание
-
15033000114415 CLUTCH COVER CPL. 125/200CLUTCH COVER CPL. 125/200
-
50910100003 PLUG DIN0910-MX1PLUG DIN0910-MX1
-
60603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
90025060506 HH COLLAR SCREW M6X50 TX30HH COLLAR SCREW M6X50 TX30
-
120025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
130603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
190770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
2058030120000 OIL FILLER CAP M24X3 WITH O-ROIL FILLER CAP M24X3 WITH O-R
-
210770160030 O-RING 16,00X3,00 NBR 70O-RING 16,00X3,00 NBR 70
-
2550330025000 CLUTCH COVER GASKET 0,5MMCLUTCH COVER GASKET 0,5MM
-
265033002610015 CLUTCH OUTSIDE COVERCLUTCH OUTSIDE COVER
-
2750330027000 CLUTCH OUTS.COVER GASKET 1MMCLUTCH OUTS.COVER GASKET 1MM
-
300025060406 HH COLLAR SCREW M6X40 TX30HH COLLAR SCREW M6X40 TX30
-
310025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
330025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
5250335052000 WATER PUMP COVER 125/200WATER PUMP COVER 125/200
-
9049030090000 DOWEL 9,8 X 7 XDOWEL 9,8 X 7 X
