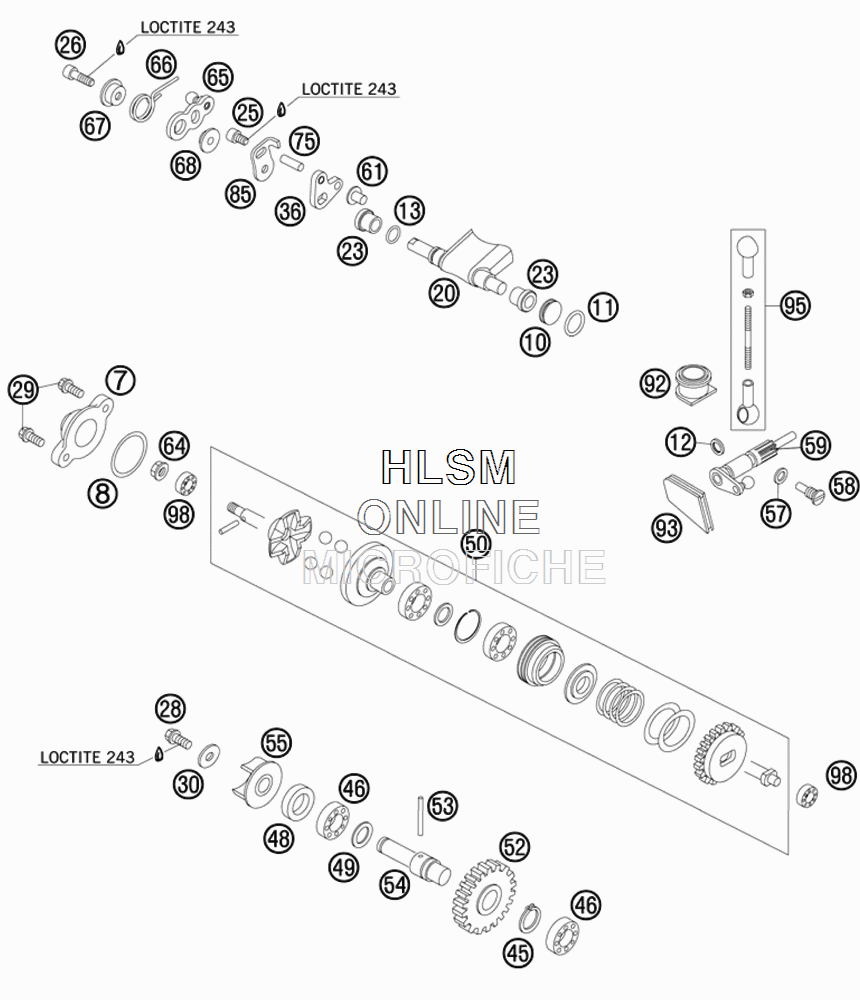

EXHAUST CONTROL для Ktm 105 SX - 2011 года выпуска`
-
№АртикулНазвание
-
754637070200 CLOSING COVERCLOSING COVER
-
80770020200 O-RING 21,95X1,78 NBRO-RING 21,95X1,78 NBR
-
1047037010000 CLOSING COVER 85 SXCLOSING COVER 85 SX
-
110770120020 O-RING 12,00X2,00 NBR 70O-RING 12,00X2,00 NBR 70
-
1254632090000 SEAL RING DH/GR 12X16X3SEAL RING DH/GR 12X16X3
-
130770008015 O-RING 8,00X1,5O-RING 8,00X1,5
-
2047537020000 CONTROL FLAP 105 SXCONTROL FLAP 105 SX
-
2347037023000 BEARING SLEEVE 85 SXBEARING SLEEVE 85 SX
-
250912050063 AH SCREW DIN 912 M 5X6AH SCREW DIN 912 M 5X6
-
260912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
280015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
290015050203 HH COLLAR SCREW M 5X20 WS=8HH COLLAR SCREW M 5X20 WS=8
-
300349000050 WASHER DIN7349-5X15X2WASHER DIN7349-5X15X2
-
3647037036000 DRIVER SHEET 85 SXDRIVER SHEET 85 SX
-
450471100010 CIRCLIP DIN0471-10X1CIRCLIP DIN0471-10X1
-
460625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
480760082472 SHAFT SEAL RING 8X24X7 A DUOSHAFT SEAL RING 8X24X7 A DUO
-
4954334015000 WASHER 10X14X0,5 STEELWASHER 10X14X0,5 STEEL
-
5047037050044 CENTRIFUGAL TIMER CPL.CENTRIFUGAL TIMER CPL.
-
5247035054026 WATER PUMP GEARWATER PUMP GEAR
-
5347035058000 PIN 2X22PIN 2X22
-
5447035054000 WATER PUMP SHAFT 85 SXWATER PUMP SHAFT 85 SX
-
5547035055000 WATER PUMP WHEEL 85 SXWATER PUMP WHEEL 85 SX
-
570603040801 COPPER GASKET DIN7603- A4X8X1COPPER GASKET DIN7603- A4X8X1
-
5847037058000 LOCK SCREW CONTROL SHAFTLOCK SCREW CONTROL SHAFT
-
5947037057100 CONTROL SHAFT 85 SXCONTROL SHAFT 85 SX
-
6147035061000 SCREW M6X8SCREW M6X8
-
6456509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
6547037065000 CONTROL LEVER 85 SXCONTROL LEVER 85 SX
-
6654637066000 OVERLOAD SPRINGOVERLOAD SPRING
-
6747037067000 SPRING SLEEVE 85 SXSPRING SLEEVE 85 SX
-
6847037068000 BEARING SLEEVE 85 SXBEARING SLEEVE 85 SX
-
750007050180 CYLINDER PIN DIN 7-5X18(M6)CYLINDER PIN DIN 7-5X18(M6)
-
8547037085000 STOP SHEET 85 SXSTOP SHEET 85 SX
-
9247037092000 GASKET RUBBER TOP 85 SXGASKET RUBBER TOP 85 SX
-
9347037093000 GASKET RUBBER BOTTOM 85 SXGASKET RUBBER BOTTOM 85 SX
-
9547037095044 CONNECT. ROD CPL. 85 SXCONNECT. ROD CPL. 85 SX
-
9854637098100 BALL BEARING 626LLBC3/5KBALL BEARING 626LLBC3/5K
