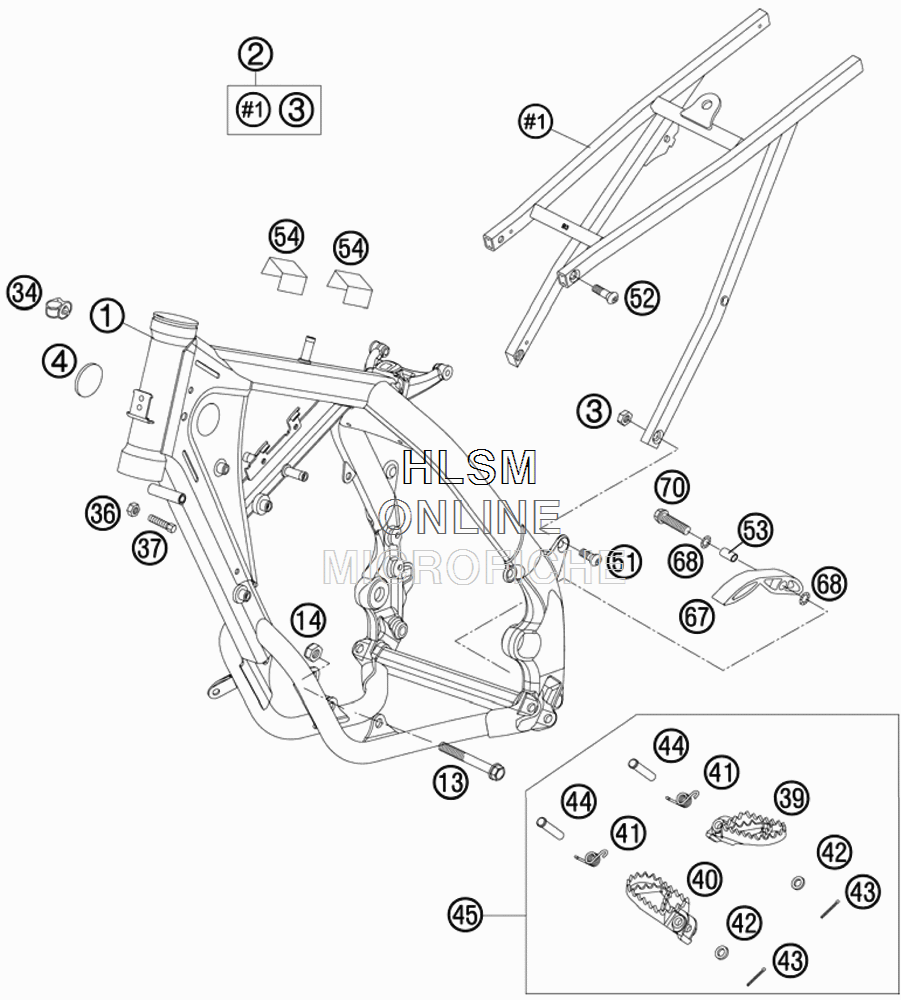

FRAME SUBFRAME для Ktm 105 SX - 2011 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    4700300120030 FRAME CPL. 85 SX "AA06"
    FRAME CPL. 85 SX "AA06"
  • 2
    47003002144 SUB FRAME 85 SX
    SUB FRAME 85 SX
  • 3
    0934080006 HEXAGON NUT DIN 934 M8
    HEXAGON NUT DIN 934 M8
  • 4
    54606004000 PLUG 37MM
    PLUG 37MM
  • 13
    47003013000 ENGINE BRACKET SCREW 85 SX
    ENGINE BRACKET SCREW 85 SX
  • 14
    54310086100 SELF LOCKING NUT M10 CU WS=14
    SELF LOCKING NUT M10 CU WS=14
  • 34
    58111076000 CABLE SUPPORT KHS NR.150-47610
    CABLE SUPPORT KHS NR.150-47610
  • 36
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 37
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 39
    59003040050 FOOT PED L/S EXC SILVER
    FOOT PED L/S EXC SILVER
  • 40
    59003041050 FOOT PED R/S EXC SILVER
    FOOT PED R/S EXC SILVER
  • 41
    54603041000 FOOTREST SPRING L/S & R/S
    FOOTREST SPRING L/S & R/S
  • 42
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 43
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 44
    54803044000 BOLT FOR FOOT PED
    BOLT FOR FOOT PED
  • 45
    4700304003390 FOOTPEG L.+R. CPL. 85 SX
    FOOTPEG L.+R. CPL. 85 SX
  • 51
    54610052000 SPROCKET SCREW-AH M8X20 WS=6
    SPROCKET SCREW-AH M8X20 WS=6
  • 52
    54510052100 SPROCKET SCREW-AH M8X26 WS=6
    SPROCKET SCREW-AH M8X26 WS=6
  • 53
    51103053051 BUSHING 8,2X10X20
    BUSHING 8,2X10X20
  • 54
    58711054050 METAMOLL FOR BATTERY BRACKET
    METAMOLL FOR BATTERY BRACKET
  • 67
    51103053000 CHAIN SLIDING PIECE BELOW
    CHAIN SLIDING PIECE BELOW
  • 68
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 70
    0025080306 HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
