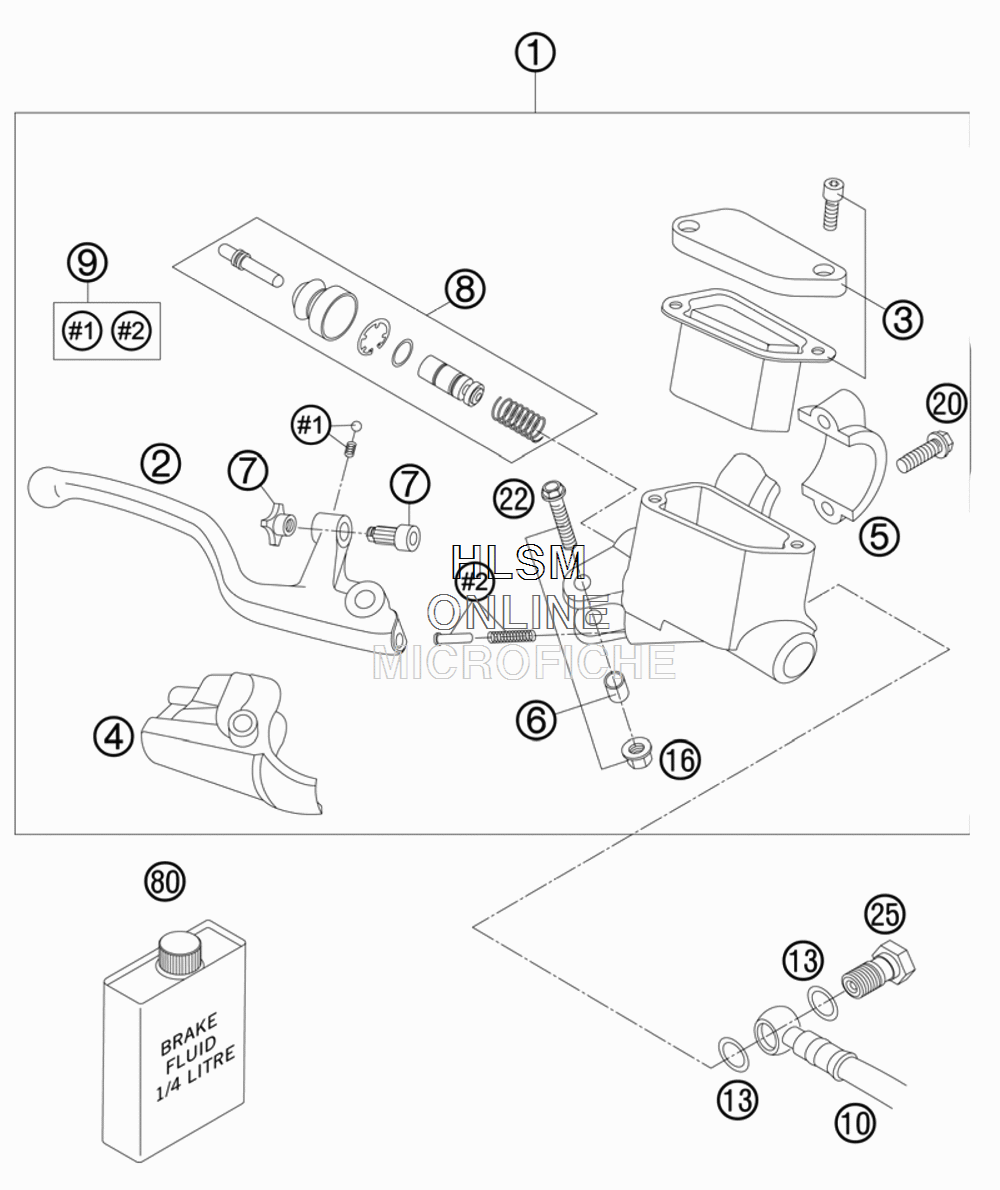

HAND BRAKE CYLINDER для Ktm 85 SX - 2010 года выпуска`
-
№АртикулНазвание
-
147013001100 H.BRAKE CYL. CPL. 9,5MM CPL.H.BRAKE CYL. CPL. 9,5MM CPL.
-
247013002000 BRAKE LEVER LOOSE 85 SXBRAKE LEVER LOOSE 85 SX
-
347013003000 CYLINDER COVER CPL. FRONTCYLINDER COVER CPL. FRONT
-
447013004000 PROTECTION COVER 85 SXPROTECTION COVER 85 SX
-
547013005000 CLAMP FOR BRAKE CYLINDERCLAMP FOR BRAKE CYLINDER
-
647013006000 SCREW+BUSHING+NUTSCREW+BUSHING+NUT
-
747013007000 ADJUSTING SCREW CPL.ADJUSTING SCREW CPL.
-
847013008100 REP.SET PISTON FRONT D=9,5MMREP.SET PISTON FRONT D=9,5MM
-
947013009000 BALL+SPRING+SPRING GUIDE 3BALL+SPRING+SPRING GUIDE 3
-
1047013010000 BRAKE HOSE FRONTBRAKE HOSE FRONT
-
130770080019 O-RING 8,00X1,00 FORMULAO-RING 8,00X1,00 FORMULA
-
1656509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
200025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
220025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
2547013025000 HOLLOW SCREW BRAKE CYLINDERHOLLOW SCREW BRAKE CYLINDER
-
8000062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
