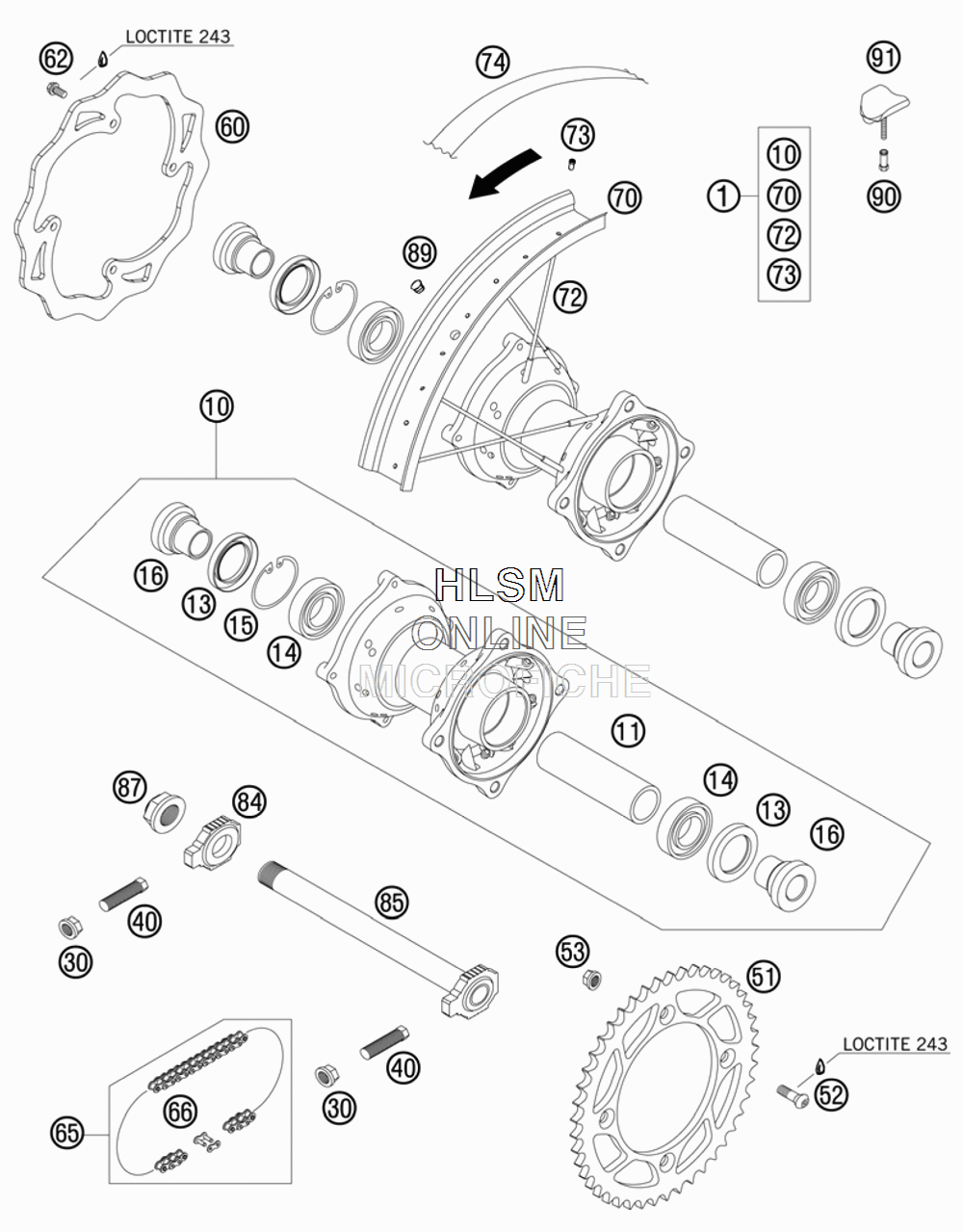

REAR WHEEL для Ktm 85 SX - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    47010001344 REAR WHEEL SP
    REAR WHEEL SP
  • 10
    4701001004491 REAR WHEEL HUB CPL.
    REAR WHEEL HUB CPL.
  • 11
    47010011000 BEARING SPACER TUBE
    BEARING SPACER TUBE
  • 13
    0760324771 SHAFT SEAL RING 32X47X7 BSL
    SHAFT SEAL RING 32X47X7 BSL
  • 14
    0625060058 GR.BALL BEAR.6005 DDU2CG23S6NM
    GR.BALL BEAR.6005 DDU2CG23S6NM
  • 15
    0472047175 CIRCLIP DIN0472-47X1,75 BUSHING FOR HUB
    CIRCLIP DIN0472-47X1,75 BUSHING FOR HUB
  • 16
    54610016000 BUSHING FOR HUB
    BUSHING FOR HUB
  • 30
    58414030000 HH COLLAR NUT M10X1,25 WS=13
    HH COLLAR NUT M10X1,25 WS=13
  • 40
    50304040100 SCREW M10X1,25X50 WS=10
    SCREW M10X1,25X50 WS=10
  • 51
    47010051044 REAR SPROCKET 44-T
    REAR SPROCKET 44-T
  • 51
    47010051045 REAR SPROCKET 45-T
    REAR SPROCKET 45-T
  • 51
    47010051046 REAR SPROCKET 46-T
    REAR SPROCKET 46-T
  • 51
    47010051047 REAR SPROCKET 47-T
    REAR SPROCKET 47-T
  • 51
    47010051048 REAR SPROCKET 48-T
    REAR SPROCKET 48-T
  • 51
    47010051049 REAR SPROCKET 49-T
    REAR SPROCKET 49-T
  • 51
    47010051050 REAR SPROCKET 50-T
    REAR SPROCKET 50-T
  • 51
    47010051051 REAR SPROCKET 51-T
    REAR SPROCKET 51-T
  • 52
    0019080266S COUNTER-SUNK SCREW ISA45 M8X26
    COUNTER-SUNK SCREW ISA45 M8X26
  • 53
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 60
    47010060400 BRAKE DISC REAR D=201,5MM
    BRAKE DISC REAR D=201,5MM
  • 62
    59009062016 SPECIAL SCREW M6X16 WS=8 10.9
    SPECIAL SCREW M6X16 WS=8 10.9
  • 65
    47010165124 CHAIN 124 ROLLS 85 SX
    CHAIN 124 ROLLS 85 SX
  • 66
    47010166000 CONNECTING LINK 85 SX
    CONNECTING LINK 85 SX
  • 70
    47010070000 RIM REAR AL4 14X1,60-32
    RIM REAR AL4 14X1,60-32
  • 72
    47010074148 SPOKE REAR 14" 4/3,5/4-148
    SPOKE REAR 14" 4/3,5/4-148
  • 73
    50309072100 SPOKE NIPPLE M4,5X0,75 8X21
    SPOKE NIPPLE M4,5X0,75 8X21
  • 74
    47010073000 RIM BAND 85 SX 14"
    RIM BAND 85 SX 14"
  • 84
    50310084000 CHAIN TENSIONER R/S
    CHAIN TENSIONER R/S
  • 85
    47010085044 AXLE REAR CPL.
    AXLE REAR CPL.
  • 87
    50310099000 HEXAGON NUT M20X1,5
    HEXAGON NUT M20X1,5
  • 89
    55003135000 PLUG FOR RIM
    PLUG FOR RIM
  • 90
    50310090050 NUT FOR WHEEL HOLDER
    NUT FOR WHEEL HOLDER
  • 91
    51009100100 RIM LOCK VM1 (1,60")
    RIM LOCK VM1 (1,60")
