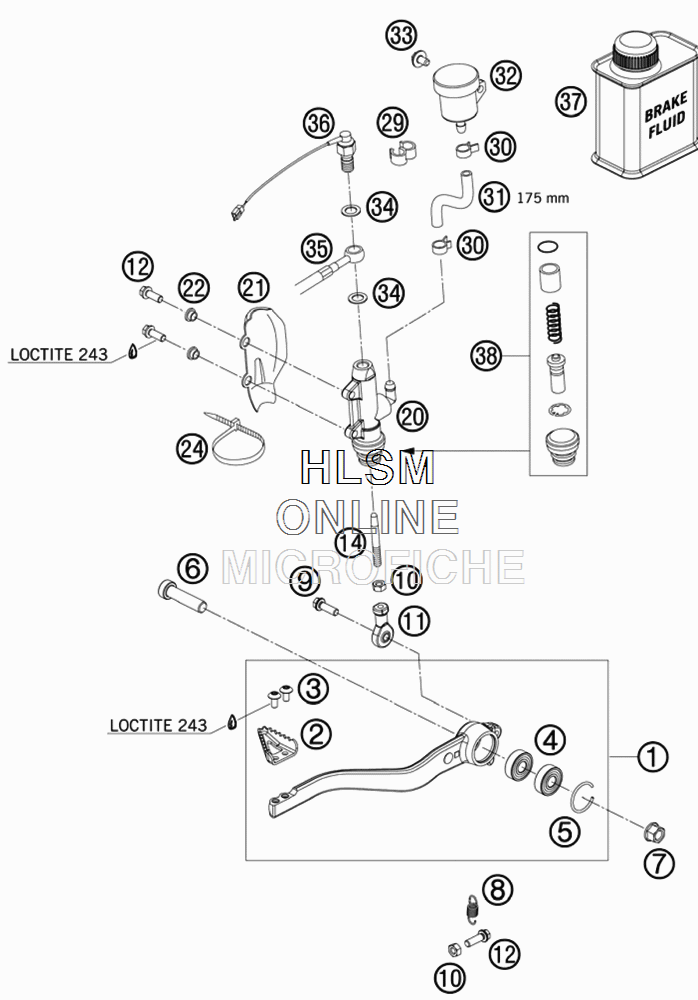

REAR BRAKE CONTROL для Ktm 690 DUKE (BLACK) - 2010 года выпуска`
-
№АртикулНазвание
-
17501305004401 FOOT BRAKE LEVER CPL.FOOT BRAKE LEVER CPL.
-
260013051000 STEP PLATE FOOT BRAKE LEVERSTEP PLATE FOOT BRAKE LEVER
-
358605083010 SCREW TORX M5X10SCREW TORX M5X10
-
40625060002 BALL BEARING SKF 6000-2RS1BALL BEARING SKF 6000-2RS1
-
50993026500 LOCK RING DIN7993-B26LOCK RING DIN7993-B26
-
60912100406 AH SCREW DIN6912 M10X40 10.9AH SCREW DIN6912 M10X40 10.9
-
754630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
861013052000 SPRING FOOT BRAKE LEVERSPRING FOOT BRAKE LEVER
-
90025060206S HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
100934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
1154603069000 SWIVEL HEAD M6 FOOT BRAKE LEV.SWIVEL HEAD M6 FOOT BRAKE LEV.
-
1259009062019 SPECIAL SCREW M6X19 WS=8 10.9SPECIAL SCREW M6X19 WS=8 10.9
-
1454603068000 PRESSURE ROD ALUPRESSURE ROD ALU
-
2054513101044 MAIN BRAKE CYLINDERMAIN BRAKE CYLINDER
-
2154513038000 BRAKE CYL. PROTECTOR "BREMBO"BRAKE CYL. PROTECTOR "BREMBO"
-
2250213161000 COLLAR BUSHINGCOLLAR BUSHING
-
2444011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
2955011022100 CLAMP D=6/8MM, BLACKCLAMP D=6/8MM, BLACK
-
3058007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
3158007016101 HOSE FOR RESERVOIR 6X1,5HOSE FOR RESERVOIR 6X1,5
-
3254513030044 BRAKE FLUID RESERVOIRBRAKE FLUID RESERVOIR
-
330024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
340603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
3575013072000 BRAKE HOSE REARBRAKE HOSE REAR
-
3650311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
3700062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
-
3854513150000 REPAIR KIT PISTON 13MMREPAIR KIT PISTON 13MM
