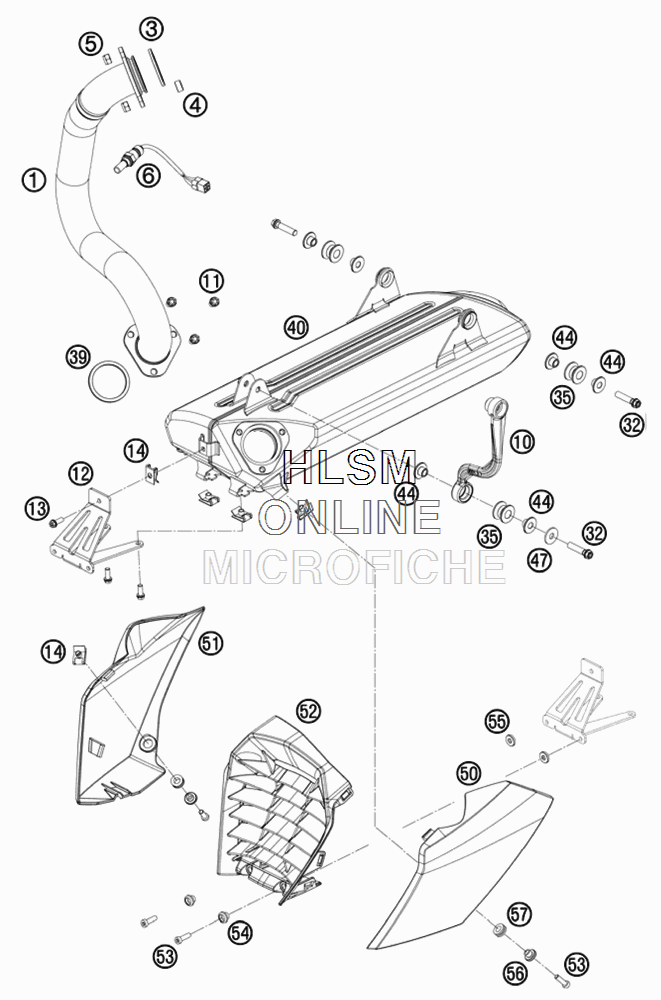

EXHAUST SYSTEM для Ktm 690 DUKE (BLACK) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    75605007000 EXHAUST PIPE FRONT
    EXHAUST PIPE FRONT
  • 3
    61005005000 EXHAUST GASKET
    EXHAUST GASKET
  • 4
    61005009000 SPACER BUSH. 8,5X15X7,5
    SPACER BUSH. 8,5X15X7,5
  • 5
    51010086100 SELF LOCKING NUT M 8 CU
    SELF LOCKING NUT M 8 CU
  • 6
    75041090000 LAMBDA SENSOR
    LAMBDA SENSOR
  • 10
    7560501400001 SUPPORT F. EXHAUST SILENCER
    SUPPORT F. EXHAUST SILENCER
  • 11
    0025080166 HH COLLAR SCREW M8X16 TX40
    HH COLLAR SCREW M8X16 TX40
  • 12
    75608020060 RETAINING PLATE FRONT SPOILER
    RETAINING PLATE FRONT SPOILER
  • 13
    0024060156 HH COLLAR SCREW M6X15 TX30
    HH COLLAR SCREW M6X15 TX30
  • 14
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 32
    0025080356S HH COLLAR SCREW M8X35 TX40
    HH COLLAR SCREW M8X35 TX40
  • 35
    54305068100 DAMP. COMPONENT SILICONE GREY
    DAMP. COMPONENT SILICONE GREY
  • 39
    75605005000 EXHAUST GASKET 57,6X3,5
    EXHAUST GASKET 57,6X3,5
  • 40
    75605183100 SILENCER LC4 DUKE USA
    SILENCER LC4 DUKE USA
  • 44
    58405050065 COLLAR BUSH 8,5X12X23,5X10
    COLLAR BUSH 8,5X12X23,5X10
  • 47
    0021080003 WASHER DIN9021-A 8,4
    WASHER DIN9021-A 8,4
  • 50
    7560802300075A FRONT SPOILER L/S ORANGE
    FRONT SPOILER L/S ORANGE
  • 51
    7560802400075A FRONT SPOILER R/S ORANGE
    FRONT SPOILER R/S ORANGE
  • 52
    75608020000 FRONT SPOILER-CENTER PART
    FRONT SPOILER-CENTER PART
  • 53
    0984060203 AH SCREW DIN6912-M 6X20 8.8
    AH SCREW DIN6912-M 6X20 8.8
  • 54
    75001094010 BUSHING MUD FLAP
    BUSHING MUD FLAP
  • 55
    75608067000 INSULATING DISK 6,2X16X3
    INSULATING DISK 6,2X16X3
  • 56
    75001094020 COLLAR BUSH 6,25X9,2X17X11
    COLLAR BUSH 6,25X9,2X17X11
  • 57
    75608020010 RUBBER SLEEVE 9X17X7MM
    RUBBER SLEEVE 9X17X7MM
