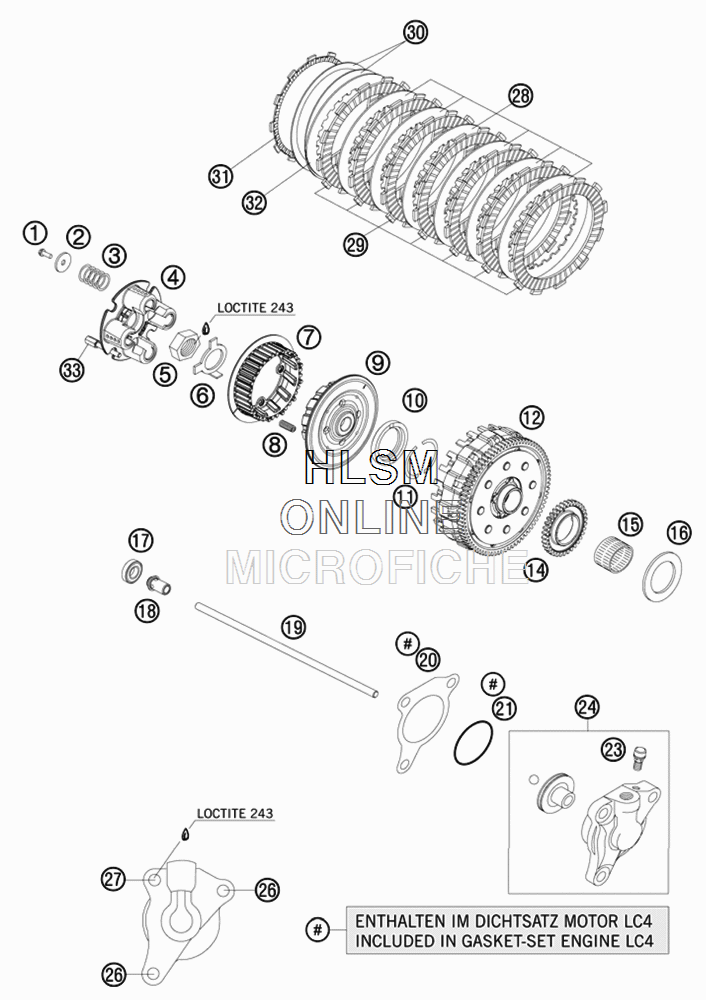

CLUTCH для Ktm 690 DUKE (BLACK) - 2010 года выпуска`
-
№АртикулНазвание
-
10025050256 HH COLLAR SCREW M5X25 ISA30HH COLLAR SCREW M5X25 ISA30
-
275032006000 SPRING RINGSPRING RING
-
358532080000 CLUTCHSPRING 3,0X33,5CLUTCHSPRING 3,0X33,5
-
475032003000 PRESSURE CAPPRESSURE CAP
-
560036073050 HEXAGON NUT M20X1,5 7MMHEXAGON NUT M20X1,5 7MM
-
675032018000 LOCK WASHERLOCK WASHER
-
775032002002 INNER CLUTCH HUB MOVABLEINNER CLUTCH HUB MOVABLE
-
875032033000 CLUTCH RELEASE SPRINGCLUTCH RELEASE SPRING
-
975032002001 INNER CLUTCH HUB FIXEDINNER CLUTCH HUB FIXED
-
1075032009000 STEPPED WASHERSTEPPED WASHER
-
1175032007000 HALF-WASHERHALF-WASHER
-
1275032001044 OUTER CLUTCH HUB CPL.OUTER CLUTCH HUB CPL.
-
1475032050001 OIL PUMP DRIVE WHEELOIL PUMP DRIVE WHEEL
-
1556532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
1675032017000 WASHER 26X40X2WASHER 26X40X2
-
170625060016 GROOV.BALL BEAR. 6001.2RSR C3GROOV.BALL BEAR. 6001.2RSR C3
-
1875032055100 PRESSURE BOLTPRESSURE BOLT
-
1975032054200 PUSH RODPUSH ROD
-
2059032065000 GASKET FOR SLAVE CYLINDERGASKET FOR SLAVE CYLINDER
-
210770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
2354732064000 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
2475032061044 OUTPUT CYL. WITH BLEEDER SCREWOUTPUT CYL. WITH BLEEDER SCREW
-
260025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
270025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
2875032112000 STEEL DISK 1,5 MMSTEEL DISK 1,5 MM
-
2958332011300 LINING DISK 2,7MM FCCLINING DISK 2,7MM FCC
-
3058632016000 RONDELLA ANTIVIBRAZIONE SETRONDELLA ANTIVIBRAZIONE SET
-
3175032111100 LINING DISC CUT OUTLINING DISC CUT OUT
-
3275032112100 STEEL DISK 1,5MM NITRIDEDSTEEL DISK 1,5MM NITRIDED
-
3375032032000 HOLDING SCREW GMB-M5X35HOLDING SCREW GMB-M5X35
