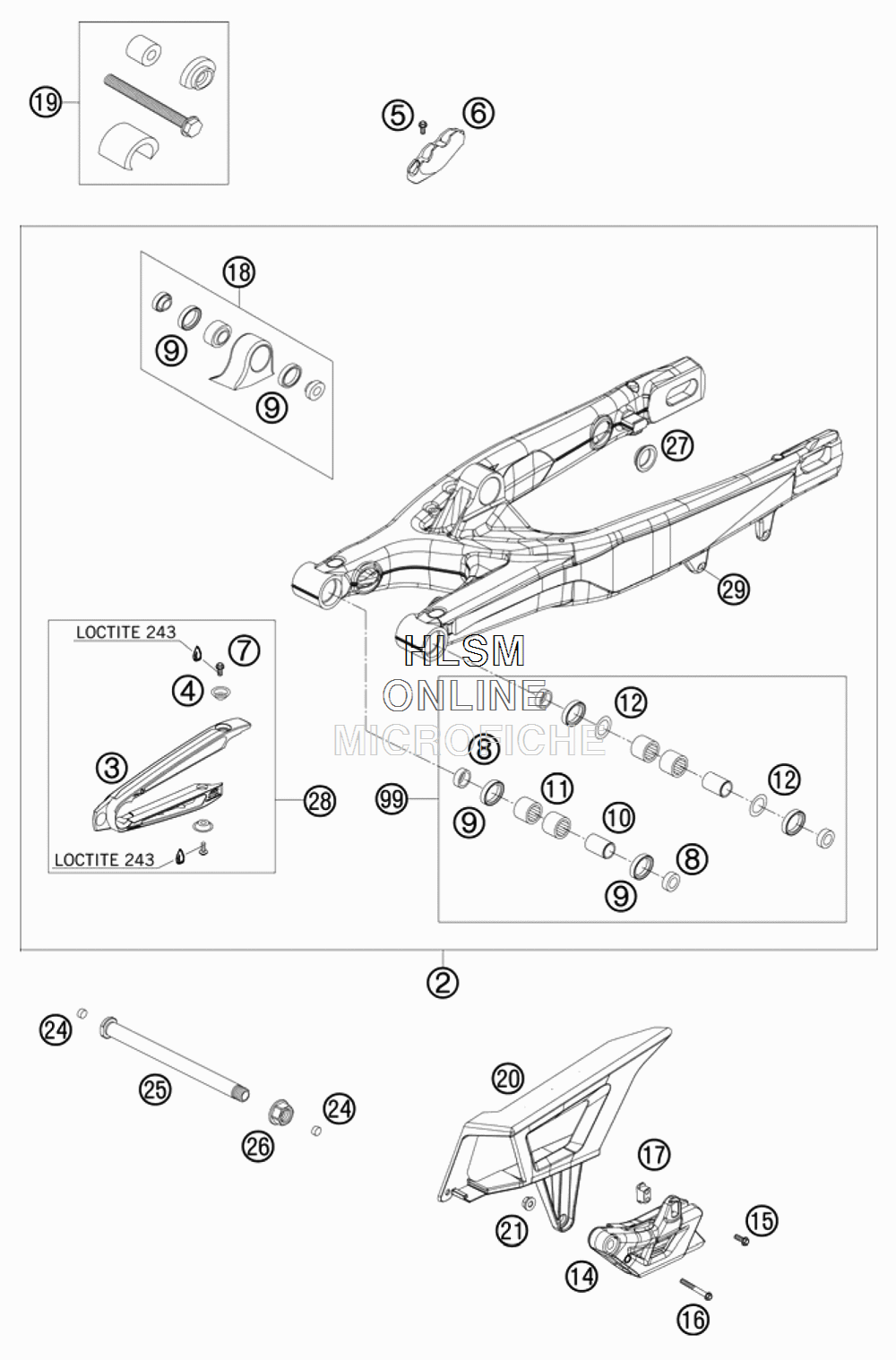

SWING ARM для Ktm 530 EXC Champions Edition - 2010 года выпуска`

№

Артикул

Название
2

78004030144 SWING ARM CPL.

SWING ARM CPL.

170 ₽
3

77304066000 CHAIN SLIDING PROTECTION

CHAIN SLIDING PROTECTION

5 060 ₽
4

77304066050 BUSHING F. CHAIN SLIDING PR.

BUSHING F. CHAIN SLIDING PR.

530 ₽
5

0009050103 SPECIAL SCREW M 5,0X10

SPECIAL SCREW M 5,0X10

290 ₽
6

77313047000 BRAKE HOSE GUIDE LOWER

BRAKE HOSE GUIDE LOWER

1 230 ₽
7

59009062013 SPECIAL SCREW M6X13 WS=8 10.9

SPECIAL SCREW M6X13 WS=8 10.9

290 ₽
8

54804034000 BUCKET F. SHAFT SEAL RING

BUCKET F. SHAFT SEAL RING

1 330 ₽
9

0760253270 SHAFT SEAL RING 25X32X7

SHAFT SEAL RING 25X32X7

1 610 ₽
10

59404032000 BEARING SLEEVE 17X22X38,7

BEARING SLEEVE 17X22X38,7

2 330 ₽
11

59004031100 NEEDLE BEARING HK2212V

NEEDLE BEARING HK2212V

2 490 ₽
12

54603036000 STOP DISK 22,2X31,7X1

STOP DISK 22,2X31,7X1

440 ₽
14

77304070000 CHAIN GUIDE REAR CPL.

CHAIN GUIDE REAR CPL.

11 440 ₽
15

59009062019 SPECIAL SCREW M6X19 WS=8 10.9

SPECIAL SCREW M6X19 WS=8 10.9

410 ₽
16

0025060506 HH COLLAR SCREW M6X50 TX30

HH COLLAR SCREW M6X50 TX30

640 ₽
17

77304070030 INSERTION NUT F. CHAIN GUIDE

INSERTION NUT F. CHAIN GUIDE

2 050 ₽
18

50304090044 PIVOT BEARING+BUSHES PDS

PIVOT BEARING+BUSHES PDS

17 470 ₽
19

50329000044 TOOL BEARING MOUNTING PDS

TOOL BEARING MOUNTING PDS

145 420 ₽
20

78004060000 CHAIN GUARD

CHAIN GUARD

3 840 ₽
21

56509064100 SELF LOCKING NUT M6 10.9

SELF LOCKING NUT M6 10.9

320 ₽
24

55009086000 PLUG SFL13

PLUG SFL13

410 ₽
25

77304037000 SWINGARM BOLT M16X1,5

SWINGARM BOLT M16X1,5

13 080 ₽
26

54804038000 SELF LOCK.NUT M16X1,5 WS=19

SELF LOCK.NUT M16X1,5 WS=19

270 ₽
27

58404041100 CLOSING COVER ROUND

CLOSING COVER ROUND

240 ₽
28

77304066010 CHAIN GUARD CPL.

CHAIN GUARD CPL.

5 810 ₽
29

54603055051 PRESS IN NUT M6 STEEL ZINC

PRESS IN NUT M6 STEEL ZINC

270 ₽
99

59404230110 SWINGARM-REPAIR KIT

SWINGARM-REPAIR KIT

20 630 ₽
