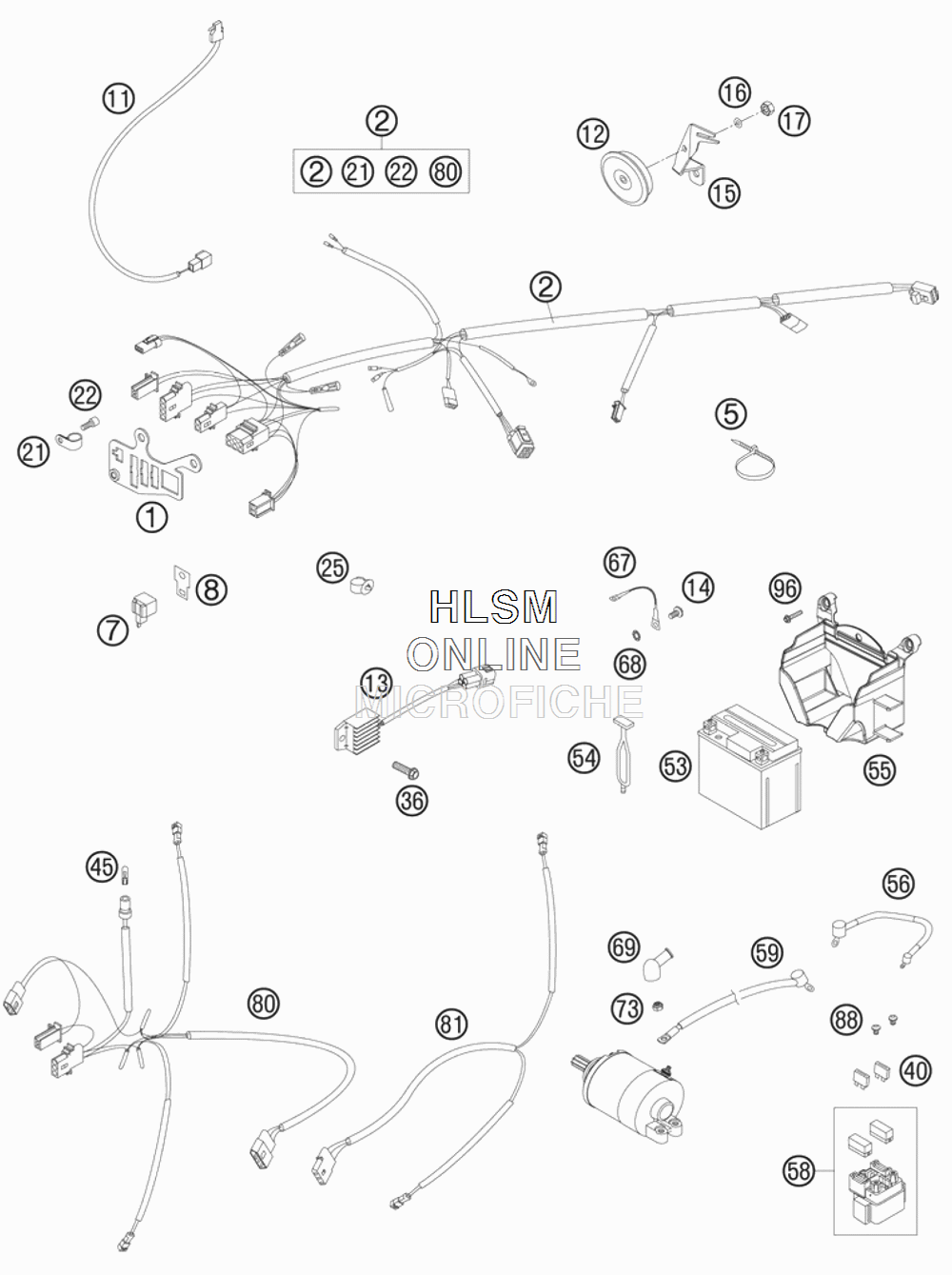

WIRING HARNESS для Ktm 530 EXC Champions Edition - 2010 года выпуска`
-
№АртикулНазвание
-
154811083100 SUPPORT BRACKET EXCSUPPORT BRACKET EXC
-
259411075244 WIRING HARNESS EXC-S USAWIRING HARNESS EXC-S USA
-
544011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
544011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
544011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
744611207200 FLASHER UNITFLASHER UNIT
-
858211031100 BRACKET FOR FLASHER RELAISEBRACKET FOR FLASHER RELAISE
-
1150311050100 BRAKE LIGHT SWITCH FRONTBRAKE LIGHT SWITCH FRONT
-
1250311060200 DC HORN 12VDC HORN 12V
-
1380011034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
140009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
1578011061000 HORN BRACKET EXCHORN BRACKET EXC
-
160125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
170934050003 HEXAGON NUT DIN0934-M 5HEXAGON NUT DIN0934-M 5
-
2157013070000 PVC-CLAMP 7/16" HEYCO 3377PVC-CLAMP 7/16" HEYCO 3377
-
220912050083 AH SCREW DIN 912 M 5X8AH SCREW DIN 912 M 5X8
-
2558111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
360025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
4058011109110 FUSE 10 AFUSE 10 A
-
4549111425000 BULB 12V 1,2W (W2X4,6D)BULB 12V 1,2W (W2X4,6D)
-
5358511053000 BATTERY 12V 4AH YTX5L-BSBATTERY 12V 4AH YTX5L-BS
-
5450303018000 RUBBER L=145MMRUBBER L=145MM
-
5578011055000 BARRERY CASINGBARRERY CASING
-
5658711086000 WIRING HARNESS BATTERY DUKEWIRING HARNESS BATTERY DUKE
-
5858211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
5958411059100 STARTERCABLE 700 MMSTARTERCABLE 700 MM
-
6758411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
6858411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
6958440099000 PROTECTION CAP F. STARTER ENG.PROTECTION CAP F. STARTER ENG.
-
730985060003 SELF LOCK. NUT DIN0985-M6SELF LOCK. NUT DIN0985-M6
-
8059411080100 FLASH. WIRING HAR. EXC-S USAFLASH. WIRING HAR. EXC-S USA
-
8159011081100 FLASH. WIRINGHARNESS REARFLASH. WIRINGHARNESS REAR
-
880902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
960017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
