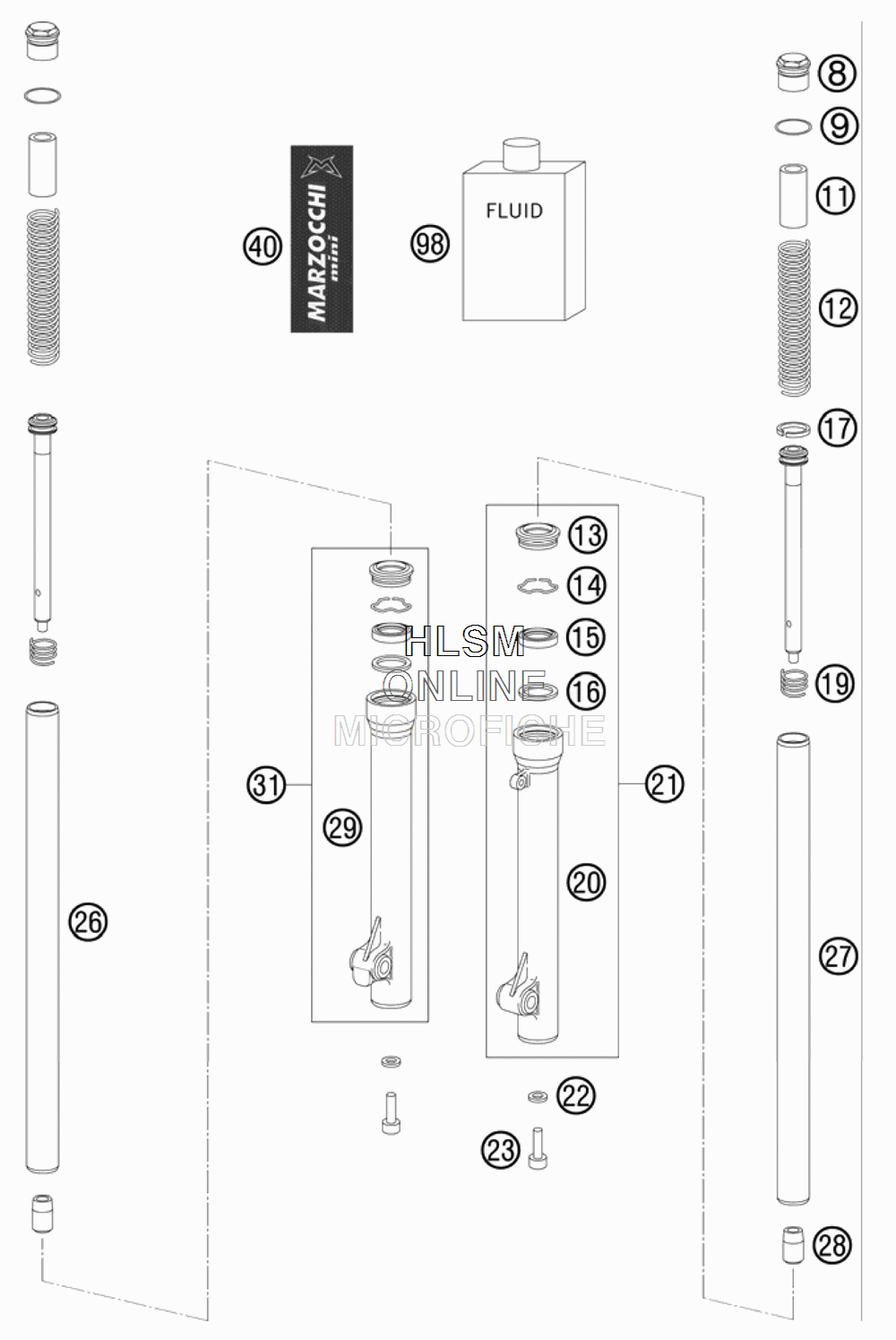

FRONT FORK DISASSEMBLED для Ktm 50 SX - 2010 года выпуска`
-
№АртикулНазвание
-
87504212AC PLUG CAPPLUG CAP
-
97528010 O-RINGO-RING
-
117518076 PRE LOAD BUSH 25X2,5X100PRE LOAD BUSH 25X2,5X100
-
1275141169 SPRING 2N/MMSPRING 2N/MM
-
1275141214 SPRING 2,5N/MMSPRING 2,5N/MM
-
137533297 DUST SEALDUST SEAL
-
147523264 STOP RINGSTOP RING
-
157528230 OIL SEAL 32/42/6,5-9,5OIL SEAL 32/42/6,5-9,5
-
167522166AA WASHER D42X32,5X1,5WASHER D42X32,5X1,5
-
177524157 PISTON RING D32 ONLY FOR REBOUND DAMPINGPISTON RING D32 ONLY FOR REBOUND DAMPING
-
1975141015 REBOUND SPRINGREBOUND SPRING
-
2075031570A SLIDER L/S 50 LCSLIDER L/S 50 LC
-
2175031570A/R SLIDER CPL. L/S 50LCSLIDER CPL. L/S 50LC
-
227522225 WASHER 14X8X1,5WASHER 14X8X1,5
-
230912080303 AH SCREW DIN0912-M 8X30AH SCREW DIN0912-M 8X30
-
267708249/R FORK TUBE R/S SENIORFORK TUBE R/S SENIOR
-
277708250/R FORK TUBE L/S SENIORFORK TUBE L/S SENIOR
-
287512068 FOOT BUFFERFOOT BUFFER
-
2975031571A SLIDER R/S 50 LCSLIDER R/S 50 LC
-
3175031571A/R SLIDER CPL. R/S 50LCSLIDER CPL. R/S 50LC
-
407547325 STICKER LEFT SIDE MARZOCCHISTICKER LEFT SIDE MARZOCCHI
-
407547331 STICKER RIGHT SIDE MARZOCCHISTICKER RIGHT SIDE MARZOCCHI
-
987550013 FORKOIL EBH16 SAE 7.5FORKOIL EBH16 SAE 7.5
