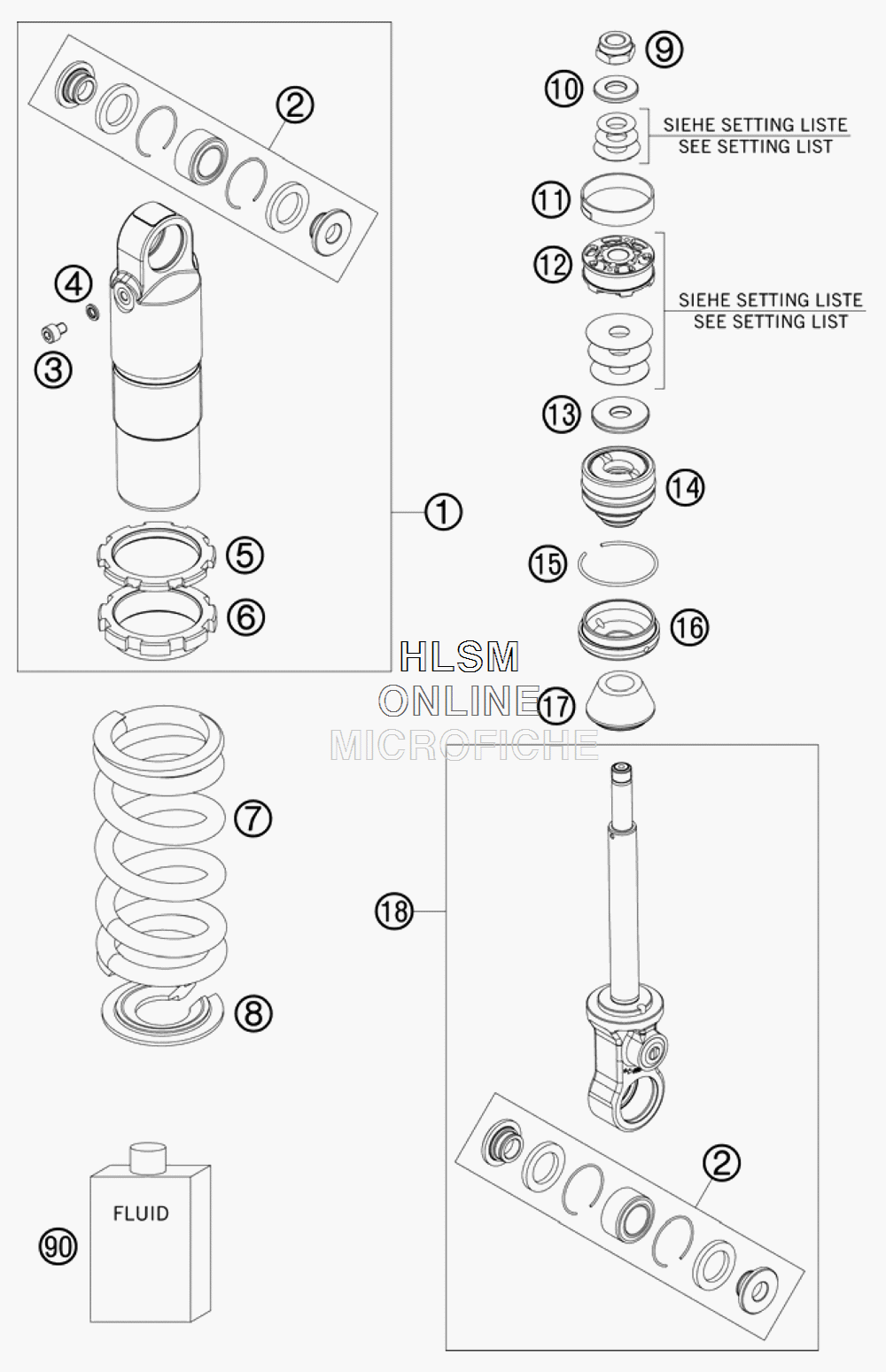

SHOCK ABSORBER DISASSEMBLED I для Ktm 50 SX - 2010 года выпуска`
-
№АртикулНазвание
-
136120783S MONOSHOCK TOP PART L147 CPL.07MONOSHOCK TOP PART L147 CPL.07
-
2R307 REPAIR KIT BEARINGS 50 SX 07REPAIR KIT BEARINGS 50 SX 07
-
336120785 SCREW M5 C.K. RVSSCREW M5 C.K. RVS
-
436120782 SEAL D5,21XD8,38X1,22SEAL D5,21XD8,38X1,22
-
536120015 COUNTERNUTCOUNTERNUT
-
636120418 ADJUSTING NUTADJUSTING NUT
-
793010175S SPRING 35N/MM 35-130 130MM OR.SPRING 35N/MM 35-130 130MM OR.
-
793010176S SPRING 30N/MM 30-130 130MM OR.SPRING 30N/MM 30-130 130MM OR.
-
793010177S SPRING 40N/MM 40-130 130MM OR.SPRING 40N/MM 40-130 130MM OR.
-
836120386 SPRING RET. H=3, D=14,5SPRING RET. H=3, D=14,5
-
936120052 * PISTON ROD NUT M10X1* PISTON ROD NUT M10X1
-
1036120604 SHIM D10XD22X2,5SHIM D10XD22X2,5
-
1136120040 PISTON RING 8X1X108,3PISTON RING 8X1X108,3
-
1236120071 * PISTON 6+6XD5.5/3.5* PISTON 6+6XD5.5/3.5
-
1314360065 REBOUND DISC H=4 D=28,5REBOUND DISC H=4 D=28,5
-
1436120787S ADAPTOR 36MM H26,6 CPL. 07ADAPTOR 36MM H26,6 CPL. 07
-
1540540015 CIRCLIP 38X1,5CIRCLIP 38X1,5
-
1636120780 RESERVOIR CAP D=36 H=9,5RESERVOIR CAP D=36 H=9,5
-
1736120427 BUMP RUBBER WP65 L=20BUMP RUBBER WP65 L=20
-
1836120776S1 MONOSH. BOTTOM PART L99 CPL.07MONOSH. BOTTOM PART L99 CPL.07
-
9050180342S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
