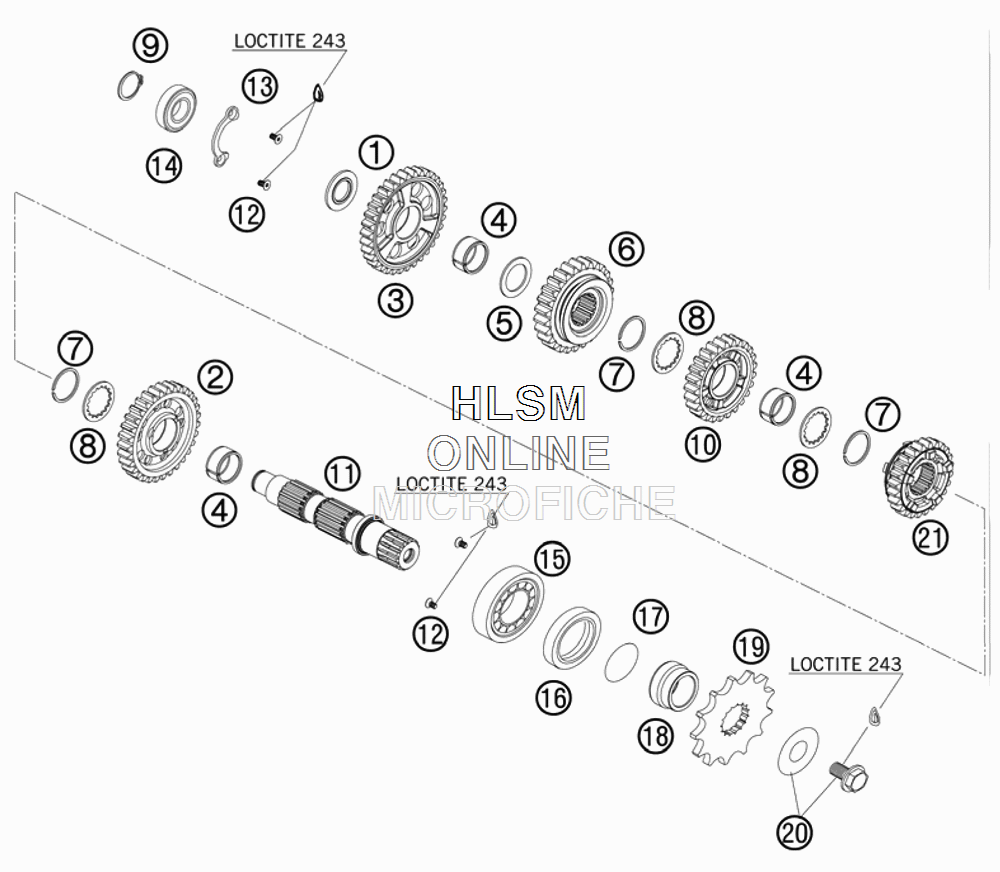

TRANSMISSION II - COUNTERSHAFT для Ktm 450 SX-F - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    77333045000 STOP DISC 17,1X32X2,6
    STOP DISC 17,1X32X2,6
  • 2
    77333312000 IDLER GEAR 2.G
    IDLER GEAR 2.G
  • 3
    77333311000 IDLER GEAR 1.G
    IDLER GEAR 1.G
  • 4
    0405222613 NEEDLE BEAR. K 22X26X13 TN
    NEEDLE BEAR. K 22X26X13 TN
  • 5
    77333044000 STOP DISC 22,2X32X1,5
    STOP DISC 22,2X32X1,5
  • 6
    77333313000 SLIDING GEAR 3RD G
    SLIDING GEAR 3RD G
  • 7
    0417025000 CIRCLIP SW25
    CIRCLIP SW25
  • 8
    78033033000 STOP DISK 23 X 32 X 1,5
    STOP DISK 23 X 32 X 1,5
  • 9
    0471170015 CIRCLIP DIN 0471-17X1, 5
    CIRCLIP DIN 0471-17X1, 5
  • 10
    77333314000 IDLER GEAR 4TH. G.
    IDLER GEAR 4TH. G.
  • 11
    77333310000 COUNTERSHAFT
    COUNTERSHAFT
  • 12
    0019050103 INT. TORX FLAT HEAD M 5X10 8.8
    INT. TORX FLAT HEAD M 5X10 8.8
  • 13
    77333024100 BUSHING RETAINING PLATE
    BUSHING RETAINING PLATE
  • 14
    0625062036 BALL BEARING 6203 RSH C3
    BALL BEARING 6203 RSH C3
  • 15
    0402255215 CYL.ROLLER BEARING NUP205E C3
    CYL.ROLLER BEARING NUP205E C3
  • 16
    0760354771 SHAFT SEAL RING 35X47X7 TC
    SHAFT SEAL RING 35X47X7 TC
  • 17
    0770250015 O-RING 25,00X1,50 NBR 70
    O-RING 25,00X1,50 NBR 70
  • 18
    77333219000 SPACER BUSHING
    SPACER BUSHING
  • 19
    50033029013 FRONT SPROCKET 13-T
    FRONT SPROCKET 13-T
  • 19
    50033029014 FRONT SPROCKET 14-T
    FRONT SPROCKET 14-T
  • 19
    50033029015 FRONT SPROCKET 15-T
    FRONT SPROCKET 15-T
  • 20
    59033034044 SCREW 10.9+SPRING WASHER
    SCREW 10.9+SPRING WASHER
  • 21
    77333315000 SLIDING GEAR 5TD G
    SLIDING GEAR 5TD G
