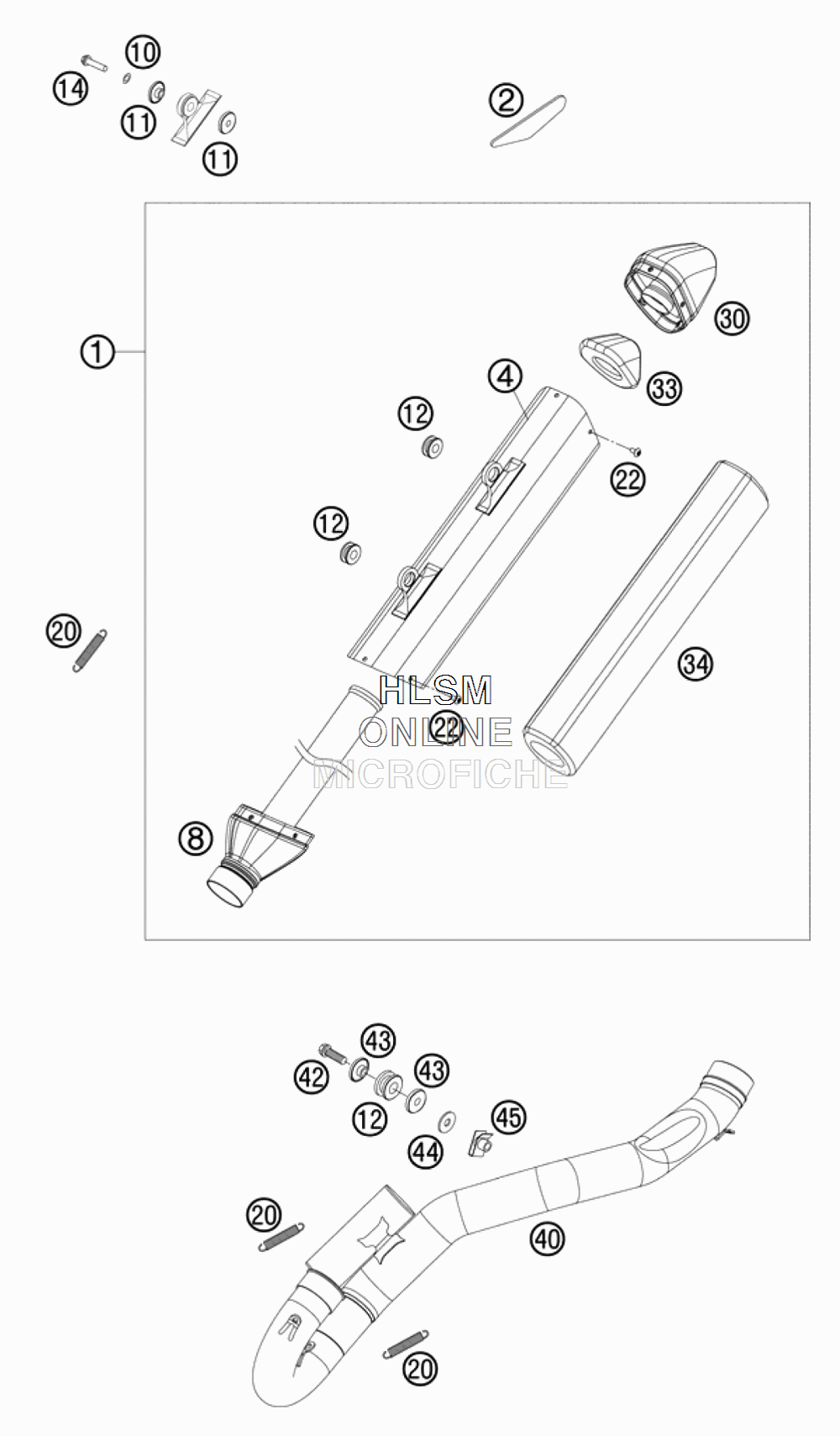

EXHAUST SYSTEM для Ktm 450 SX-F - 2010 года выпуска

  • №
    Артикул
    Название
  • 1*
    77005079300 SILENCER SX/XC-W
    SILENCER SX/XC-W
  • 2
    77308013050 THERMAL PROTECTION FOIL
    THERMAL PROTECTION FOIL
  • 4*
    77005079350 SILENCER HOUSING SX/XC-W
    SILENCER HOUSING SX/XC-W
  • 8
    77005079209 CONNECTING CAP CPL.
    CONNECTING CAP CPL.
  • 10
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 11
    77305069000 BUSHING 7.5X12X28X7.6
    BUSHING 7.5X12X28X7.6
  • 12
    54605068000 EXHAUST BRACKET RUBBER BLACK
    EXHAUST BRACKET RUBBER BLACK
  • 14
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 20
    50305016000 TEN.SPRING L=62MM EY.MOVEABLE
    TEN.SPRING L=62MM EY.MOVEABLE
  • 22
    58605083010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 30
    77305079006 ENDCAP
    ENDCAP
  • 33*
    77005078065 STUFFING YARN 65 GRAM
    STUFFING YARN 65 GRAM
  • 34*
    77005078380 STUFFING YARN 380 GRAM
    STUFFING YARN 380 GRAM
  • 40
    77305007200 EXHAUST MANIFOLD 450 SX-F 9
    EXHAUST MANIFOLD 450 SX-F 9
  • 42
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 43
    59405069000 BUSHING FOR EXHAUST SUPPORT
    BUSHING FOR EXHAUST SUPPORT
  • 44
    0021080003 WASHER DIN9021-A 8,4
    WASHER DIN9021-A 8,4
  • 45
    54603048000 RANGE CHANGE METAL NUT M8
    RANGE CHANGE METAL NUT M8
