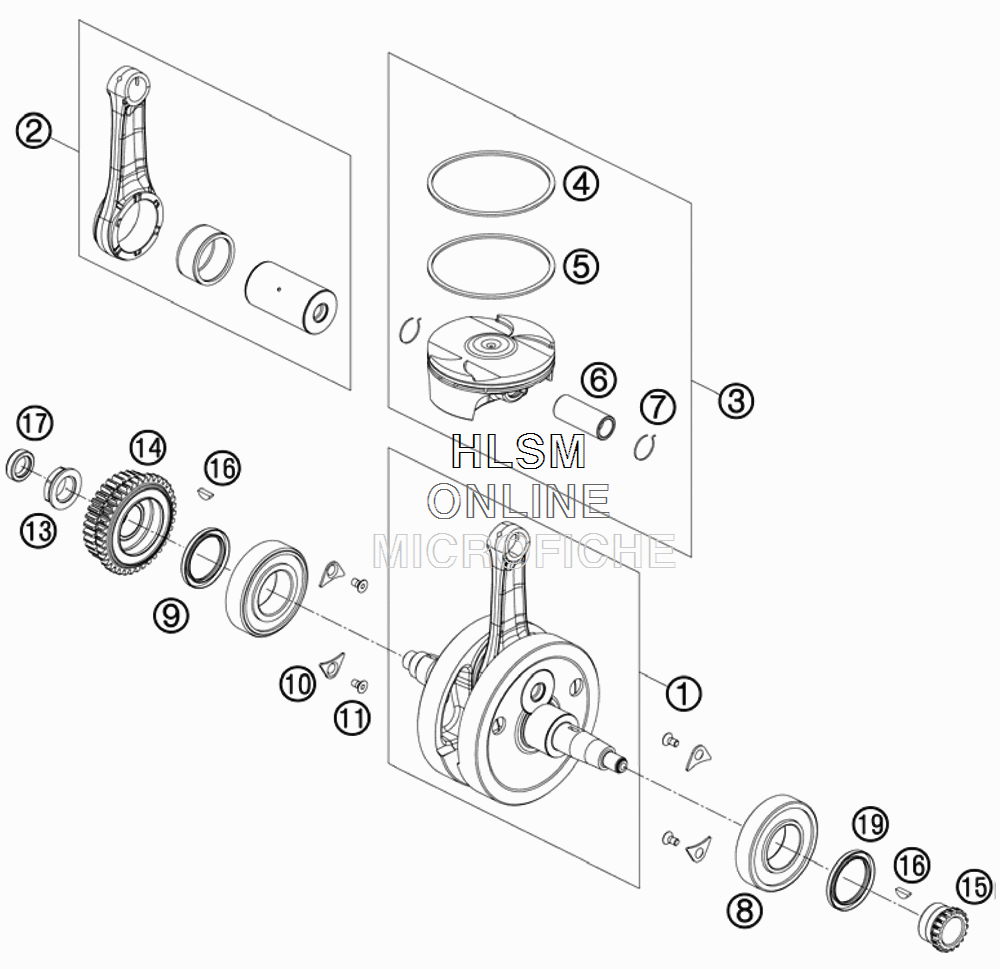

CRANKSHAFT PISTON для Ktm 400 XC-W - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    78330018100 CRANKSHAFT CPL.
    CRANKSHAFT CPL.
  • 2
    78330015044 CON ROD REP.-KIT 400
    CON ROD REP.-KIT 400
  • 3
    78330007000I PISTON D=95MM SIZE 1
    PISTON D=95MM SIZE 1
  • 3
    78330007000II PISTON D=95MM SIZE 2
    PISTON D=95MM SIZE 2
  • 4
    78030030000 COMPRESSION RING
    COMPRESSION RING
  • 5
    78030032100 OIL SCRAPER RING
    OIL SCRAPER RING
  • 6
    78030033000 PISTON PIN
    PISTON PIN
  • 7
    77330074000 CIRCLIP
    CIRCLIP
  • 8
    0625062071 BALL BEARING 6207 TM-SX07E
    BALL BEARING 6207 TM-SX07E
  • 9
    0760354773 SHAFT SEAL RING 35X47X7 A-DUO
    SHAFT SEAL RING 35X47X7 A-DUO
  • 10
    75030085000 RETAINING PLATE F. CS BEARING
    RETAINING PLATE F. CS BEARING
  • 11
    0019050103 INT. TORX FLAT HEAD M 5X10 8.8
    INT. TORX FLAT HEAD M 5X10 8.8
  • 13*
    78030029200 NUT PRIMARY WHEEL M20X1,5
    NUT PRIMARY WHEEL M20X1,5
  • 14*
    78032000333 PRIMARY WHEEL
    PRIMARY WHEEL
  • 15
    78036014200 TIMING GEAR 18T.
    TIMING GEAR 18T.
  • 16
    0888030037 WOODRUFF KEY DIN6888-3X3,7
    WOODRUFF KEY DIN6888-3X3,7
  • 17
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 19
    0760354774 SHAFT SEAL RING 35X47X7 VITON
    SHAFT SEAL RING 35X47X7 VITON
