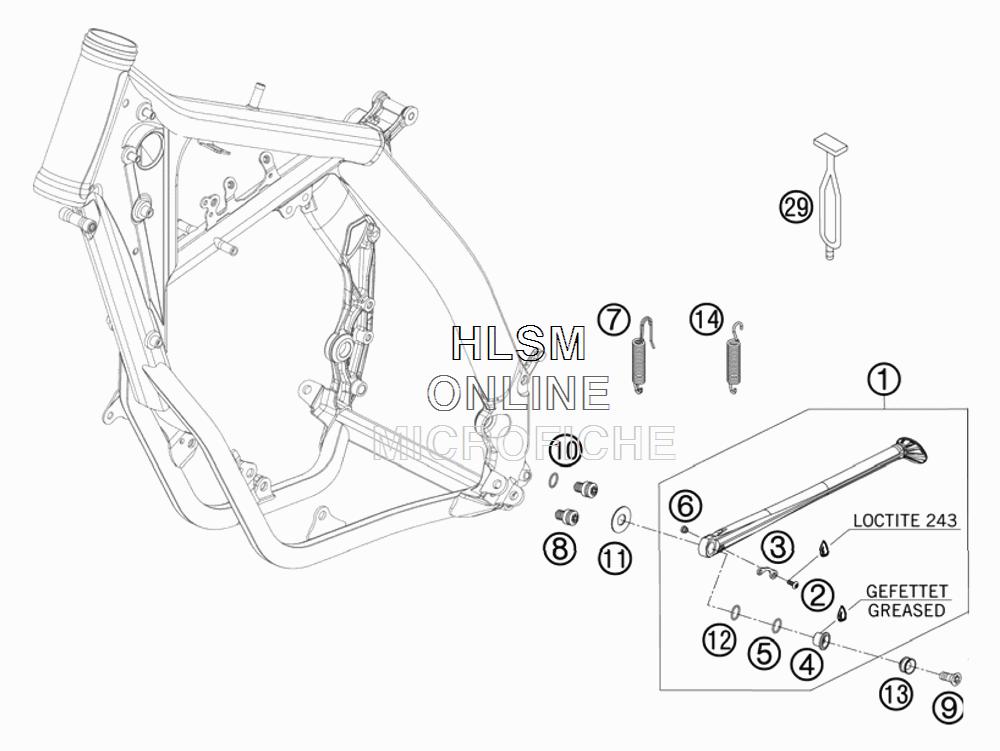

SIDE / CENTER STAND для Ktm 250 XC-FW Champions Edition - 2010 года выпуска`
-
№АртикулНазвание
-
178003023044 SIDE STAND CPL.SIDE STAND CPL.
-
258605083014 SCREW M5X14 TORX 25SCREW M5X14 TORX 25
-
378003023090 SPRING BRACKET F. SIDE ST.SPRING BRACKET F. SIDE ST.
-
478003023080 SIDE STAND BUSHING EXC USASIDE STAND BUSHING EXC USA
-
5770180020 O-RING 18,00X2,00 NBR 70O-RING 18,00X2,00 NBR 70
-
678003023070 SPACER BUSH. SPRING BRACKETSPACER BUSH. SPRING BRACKET
-
778003024100 SIDE STAND SPRING (ONLY FOR EXC)SIDE STAND SPRING (ONLY FOR EXC)
-
878003023182 SIDE STAND STOP SCREW M10X12SIDE STAND STOP SCREW M10X12
-
90019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
925080306 HH COLLAR SCREW M8X30 TX40 (ONLY FOR EURO)HH COLLAR SCREW M8X30 TX40 (ONLY FOR EURO)
-
10770120020 O-RING 12,00X2,00 NBR 70O-RING 12,00X2,00 NBR 70
-
1178003023083 WASHER F. SIDE STAND 12,2X29,5WASHER F. SIDE STAND 12,2X29,5
-
12770125015 O-RING 12,5X1,5 NBRO-RING 12,5X1,5 NBR
-
1378003023081 SIDE STAND BUSHING EXC-EU (ONLY FOR EURO)SIDE STAND BUSHING EXC-EU (ONLY FOR EURO)
-
1478003024100 SIDE STAND SPRING (ONLY FOR XC)SIDE STAND SPRING (ONLY FOR XC)
-
2950303018000 RUBBER L=145MMRUBBER L=145MM
