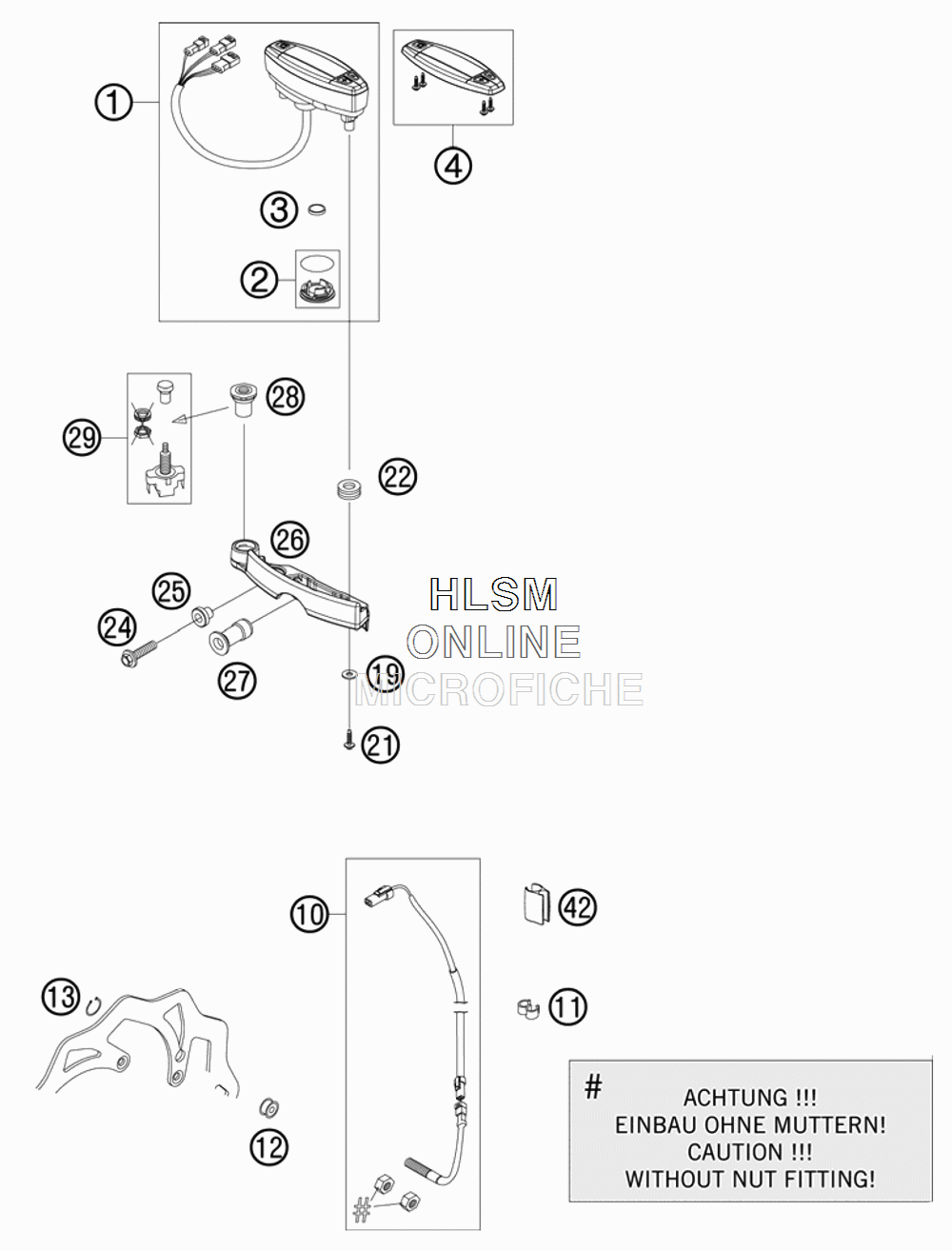

INSTRUMENTS/ LOCK SYSTEM для Ktm 250 XC-FW Champions Edition - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    54814069000 SPEEDOMETER KM/H F. 21" REPROGRAMMABLE: KM/H - MPH
    SPEEDOMETER KM/H F. 21" REPROGRAMMABLE: KM/H - MPH
  • 2
    54814069010 BATTERY COVER F. SPEEDOM.
    BATTERY COVER F. SPEEDOM.
  • 3
    58314068000 BATTERY F. SPEEDOM. M.A.E.
    BATTERY F. SPEEDOM. M.A.E.
  • 4
    54814069020 SPEEDOMETER TOP PART
    SPEEDOMETER TOP PART
  • 10
    54814068100 CABLE FOR DIGITAL SPEEDOM.
    CABLE FOR DIGITAL SPEEDOM.
  • 11
    55011022100 CLAMP D=6/8MM, BLACK
    CLAMP D=6/8MM, BLACK
  • 12
    54814069050 MAGNET FOR DIGITAL SPEEDOM.
    MAGNET FOR DIGITAL SPEEDOM.
  • 13
    471009104 CIRCLIP DIN0471- 9X1 INOX
    CIRCLIP DIN0471- 9X1 INOX
  • 19
    21050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 21
    81050121 SCREW FOR PLASTIC K50X12 T20
    SCREW FOR PLASTIC K50X12 T20
  • 22
    58214069051 RUBBER GROMMET 16X10,8X3.02
    RUBBER GROMMET 16X10,8X3.02
  • 24
    24060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 25
    59030060050 BUSHING F. SPROCKET COVER RAC.
    BUSHING F. SPROCKET COVER RAC.
  • 26
    54814060100 SPEEDOMETER BRACKET XC-W
    SPEEDOMETER BRACKET XC-W
  • 27
    54814060051 SPACER TUBE SPEEDOM. XC-W
    SPACER TUBE SPEEDOM. XC-W
  • 28
    54814060050 SPEC. NUT F. PULL SWITCH WS=17
    SPEC. NUT F. PULL SWITCH WS=17
  • 29
    55011599000 PULL SWITCH LOOSE
    PULL SWITCH LOOSE
  • 42
    54813026000 CABLE SUPPORT 10/6MM
    CABLE SUPPORT 10/6MM
