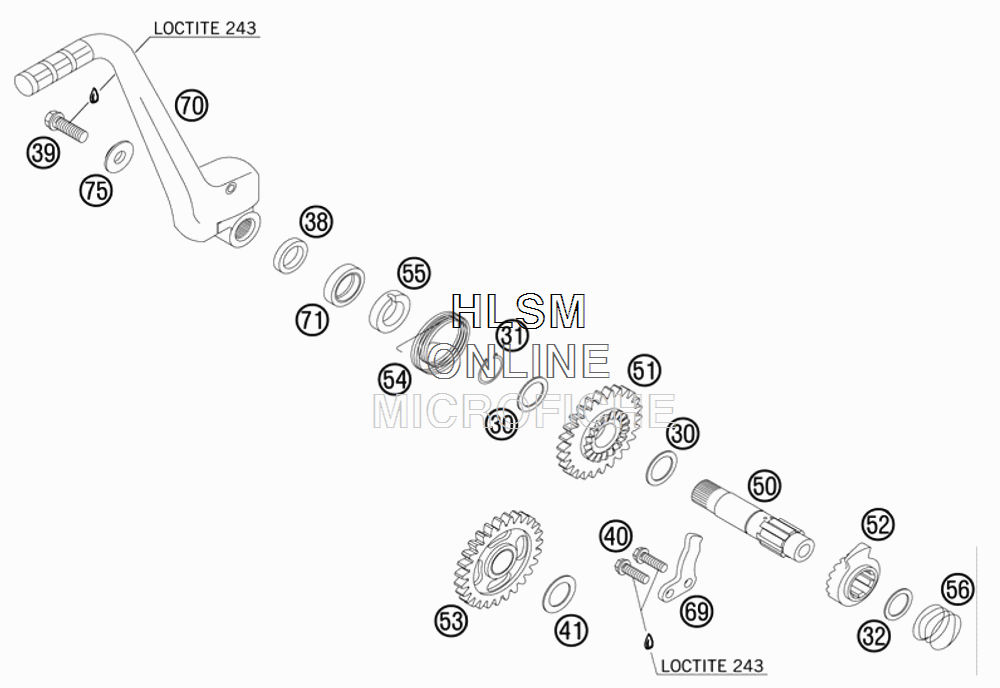

KICK STARTER для Ktm 200 XC-W - 2010 года выпуска`
-
№АртикулНазвание
-
3050333030000 STOP DISK 17,2X24X1STOP DISK 17,2X24X1
-
31471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
320988162210 THRUST WASHER DIN0988-16X22X1THRUST WASHER DIN0988-16X22X1
-
3850333038100 SPACER BUSHING 16X23X26X6,1SPACER BUSHING 16X23X26X6,1
-
3925080206 HH COLLAR SCREW M8X20 TX40HH COLLAR SCREW M8X20 TX40
-
400025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
4150333041000 STOP DISC 17,2X26X1 BSTOP DISC 17,2X26X1 B
-
5050333050000 KICKSTARTER SHAFTKICKSTARTER SHAFT
-
5150333051026 KICKSTART.GEAR 26-TKICKSTART.GEAR 26-T
-
5250333052000 KICKSTARTER RATCHETKICKSTARTER RATCHET
-
5350333053127 INTERMEDIATE GEAR 27-TINTERMEDIATE GEAR 27-T
-
5450333054000 KICKSTARTER SPRING 2,6MMKICKSTARTER SPRING 2,6MM
-
5550333055000 DRIVING HUBDRIVING HUB
-
5650333056000 SPRING 1,4MMSPRING 1,4MM
-
6950333069000 STOP MET.SHEET 4MMSTOP MET.SHEET 4MM
-
7050333070144 KICK STARTER CPL.KICK STARTER CPL.
-
710760172870 SHAFT SEAL RING 17X28X7 BSHAFT SEAL RING 17X28X7 B
-
7550333075000 WASHER 8,2X22X4,5WASHER 8,2X22X4,5
