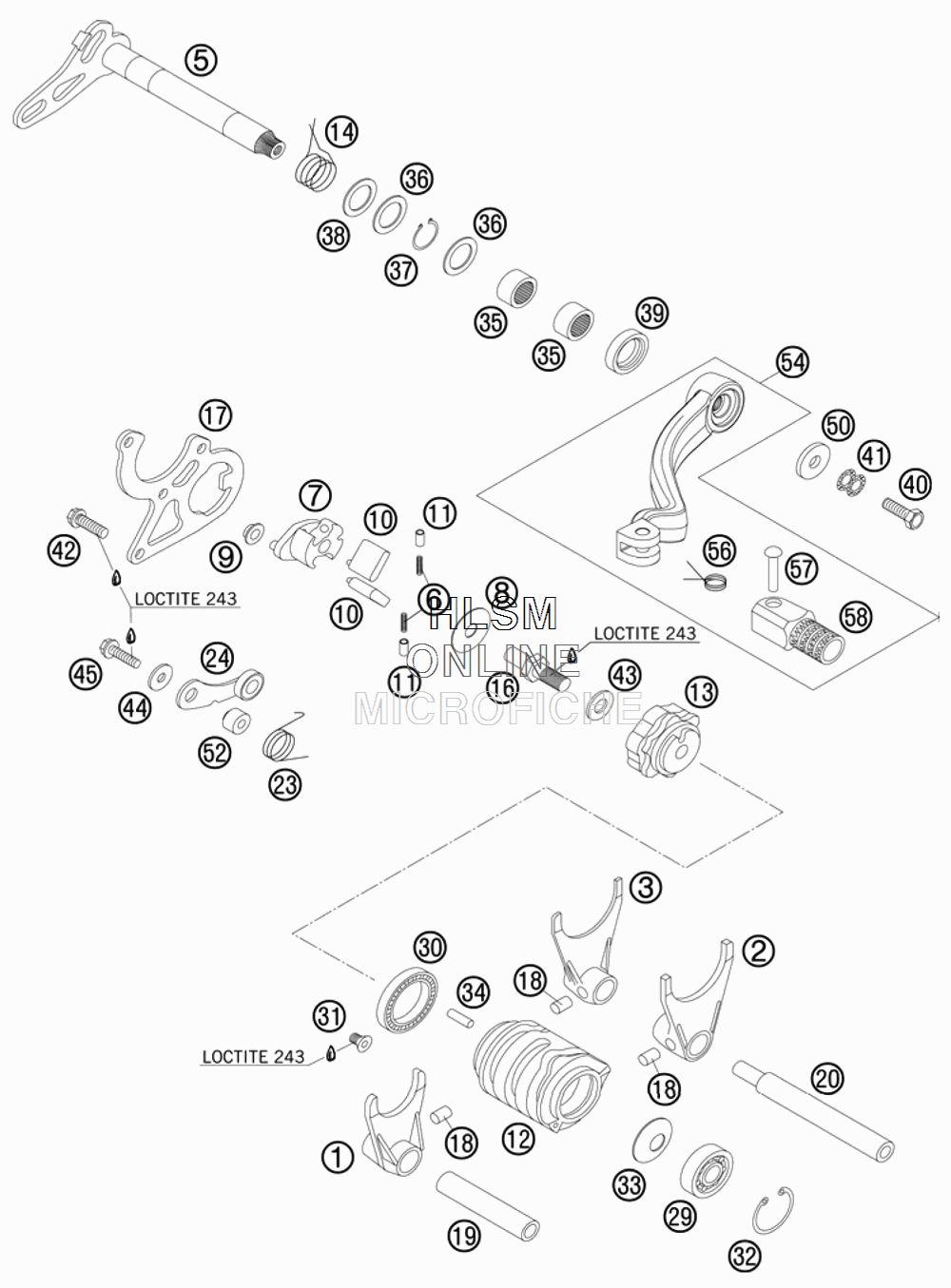

SHIFTING MECHANISM для Ktm 200 XC-W - 2010 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    50334001200 SHIFTING FORK 5TH/6TH GEAR
    SHIFTING FORK 5TH/6TH GEAR
  • 2
    50334002200 SHIFTING FORK 2ND/4TH GEAR
    SHIFTING FORK 2ND/4TH GEAR
  • 3
    50334003200 SHIFTING FORK 1ST/3RD GEAR
    SHIFTING FORK 1ST/3RD GEAR
  • 5
    50334005000 SHIFTING SHAFT
    SHIFTING SHAFT
  • 6
    50334007052 SPRING FOR RATCHET 0,5X11,5
    SPRING FOR RATCHET 0,5X11,5
  • 7
    50334007000 RATCHET SUPPORT
    RATCHET SUPPORT
  • 8
    50334007054 STOP DISK 8,2X26X0,7
    STOP DISK 8,2X26X0,7
  • 9
    50334007053 BUSHING 6X8X12X4,5
    BUSHING 6X8X12X4,5
  • 10
    50334007050 SHIFTING RATCHET
    SHIFTING RATCHET
  • 11
    50334007051 PRESSURE END PAD 4,1X5,6X8,4
    PRESSURE END PAD 4,1X5,6X8,4
  • 12
    50334012300 SHIFTING DRUM
    SHIFTING DRUM
  • 13
    50334013000 LOCATING DRUM
    LOCATING DRUM
  • 14
    50334014000 RETURN SPRING 3MM
    RETURN SPRING 3MM
  • 16
    50334016000 SPECIAL SCREW M8X21,5 WS=12
    SPECIAL SCREW M8X21,5 WS=12
  • 17
    50334017000 SHIFTING GATE 3MM
    SHIFTING GATE 3MM
  • 18
    0402061000 NEEDLE ROLLER ZRB 6X10
    NEEDLE ROLLER ZRB 6X10
  • 19
    50334019000 SHIFTING ROD DRIVE 11,8X67,5
    SHIFTING ROD DRIVE 11,8X67,5
  • 20
    50334020000 SHIFT. ROD DRIVE END 11,8X94,5
    SHIFT. ROD DRIVE END 11,8X94,5
  • 23
    50334023000 LOCATING LEVER SPRING 2,5MM
    LOCATING LEVER SPRING 2,5MM
  • 24
    50334024144 LOCATING LEVER CPL.
    LOCATING LEVER CPL.
  • 29
    0625060006 BALL BEARING 6000 RS1 C3
    BALL BEARING 6000 RS1 C3
  • 30
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 31
    0991050102 FLAT H.SCEW DIN7991-M5X10 10.9
    FLAT H.SCEW DIN7991-M5X10 10.9
  • 32
    0472260120 LOCK RING DIN0472-26X1,2
    LOCK RING DIN0472-26X1,2
  • 33
    0093251209 SPRING WASHER 12,2X25X0,9
    SPRING WASHER 12,2X25X0,9
  • 34
    0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8
    NEEDLE ROL.DIN5402 NRB 4X9,8
  • 35
    54632095000 NEEDLE BEAR.HK 1412 14X20X12
    NEEDLE BEAR.HK 1412 14X20X12
  • 36
    49033031000 STOP DISK 14,3X20X1
    STOP DISK 14,3X20X1
  • 37
    0471140100 LOCK WASHER DIN0471-14X1
    LOCK WASHER DIN0471-14X1
  • 38
    49033031015 STOP DISK 14,2X22X1,5
    STOP DISK 14,2X22X1,5
  • 39
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 40
    59009062016 SPECIAL SCREW M6X16 WS=8 10.9
    SPECIAL SCREW M6X16 WS=8 10.9
  • 41
    50233041000 PAIR OF WASHERS M 6 NORDLOCK
    PAIR OF WASHERS M 6 NORDLOCK
  • 42
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 43
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 44
    0349000050 WASHER DIN7349-5X15X2
    WASHER DIN7349-5X15X2
  • 45
    0025050206 HH COLLAR SCREW M5X20 TX30
    HH COLLAR SCREW M5X20 TX30
  • 50
    50232050001 STEEL WASHER 6,4X17X3
    STEEL WASHER 6,4X17X3
  • 52
    54634052300 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 54
    54734031000 SHIFT LEVER CPL. 2-STROKE
    SHIFT LEVER CPL. 2-STROKE
  • 56
    54634032100 SHIFTING LEVER SPRING 250
    SHIFTING LEVER SPRING 250
  • 57
    54634031050 BOLT 6X25 FOR SHIFT LEVER
    BOLT 6X25 FOR SHIFT LEVER
  • 58
    54634131000 STEP PLATE FOR SHIFT LEVER 250
    STEP PLATE FOR SHIFT LEVER 250
