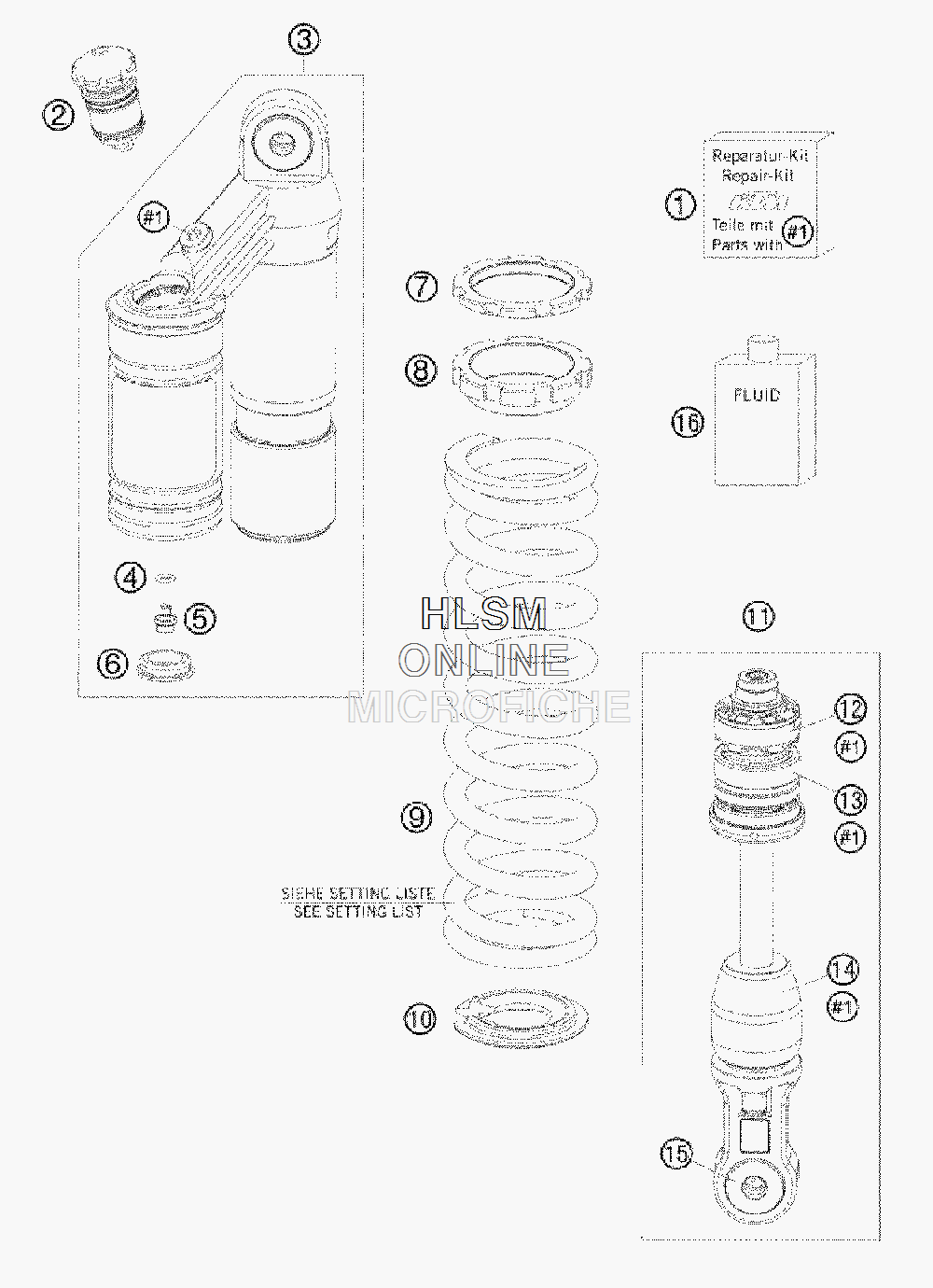

SHOCK ABSORBER DISASSEMBLED для Ktm 65 SX - 2009 года выпуска`
-
№АртикулНазвание
-
1R308 REPAIR-KITREPAIR-KIT
-
246810850S9 CC-COMPRE.DAMPING CONTROL CPL.CC-COMPRE.DAMPING CONTROL CPL.
-
336120817S1 MONOSHOCK TOP PART CPL.MONOSHOCK TOP PART CPL.
-
446810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
536120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
646811208 RUBBER CAP ''DO NOT OPEN''RUBBER CAP ''DO NOT OPEN''
-
736120015 COUNTERNUTCOUNTERNUT
-
836120418 ADJUSTING NUTADJUSTING NUT
-
993010181S SPRING 40N/MM 40-220 220MM ORASPRING 40N/MM 40-220 220MM ORA
-
993010182S SPRING 35N/MM 35-220 220MM ORASPRING 35N/MM 35-220 220MM ORA
-
993010183S SPRING 45N/MM 45-220 220MM ORASPRING 45N/MM 45-220 220MM ORA
-
1036120386 SPRING RET. H=3, D=14,5SPRING RET. H=3, D=14,5
-
1136120781S5 MONOSHOCK BOTTOM PART CPL.MONOSHOCK BOTTOM PART CPL.
-
1236120040 PISTON RING 8X1X108,3PISTON RING 8X1X108,3
-
1336120787S ADAPTOR 36MM H26,6 CPL.ADAPTOR 36MM H26,6 CPL.
-
1436120799 BUMP RUBBERBUMP RUBBER
-
15R309 REPAIR KIT BEARINGS 65 SXREPAIR KIT BEARINGS 65 SX
-
1650180342S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
