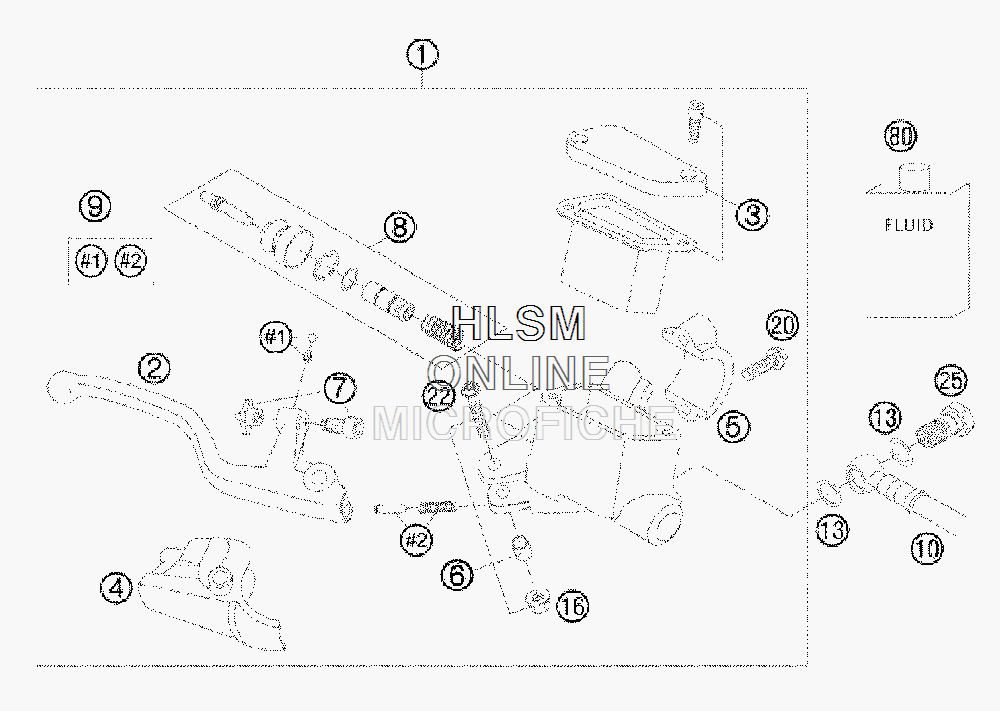

HAND BRAKE CYLINDER для Ktm 65 SX - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    47013001000 HAND BRAKE CYL. CPL. 11MM
    HAND BRAKE CYL. CPL. 11MM
  • 2
    47013002000 BRAKE LEVER LOOSE 85 SX
    BRAKE LEVER LOOSE 85 SX
  • 3
    47013003000 CYLINDER COVER CPL. FRONT
    CYLINDER COVER CPL. FRONT
  • 4
    47013004000 PROTECTION COVER 85 SX
    PROTECTION COVER 85 SX
  • 5
    47013005000 CLAMP FOR BRAKE CYLINDER
    CLAMP FOR BRAKE CYLINDER
  • 6
    47013006000 SCREW+BUSHING+NUT
    SCREW+BUSHING+NUT
  • 7
    47013007000 ADJUSTING SCREW CPL. 85 SX
    ADJUSTING SCREW CPL. 85 SX
  • 8
    47013008000 REP.SET PISTON FRONT D=11MM
    REP.SET PISTON FRONT D=11MM
  • 9
    47013009000 BALL+SPRING+SPRING GUIDE
    BALL+SPRING+SPRING GUIDE
  • 10
    46113010100 BRAKE HOSE FRONT 65 SX
    BRAKE HOSE FRONT 65 SX
  • 13
    0770080019 O-RING 8,00X1,00 FORMULA
    O-RING 8,00X1,00 FORMULA
  • 16
    56509064100 SELF LOCKING NUT M6
    SELF LOCKING NUT M6
  • 20
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 22
    0025060306 HH COLLAR SCREW M6X30
    HH COLLAR SCREW M6X30
  • 25
    47013025000 HOLLOW SCREW BRAKE CYLINDER
    HOLLOW SCREW BRAKE CYLINDER
  • 80
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
