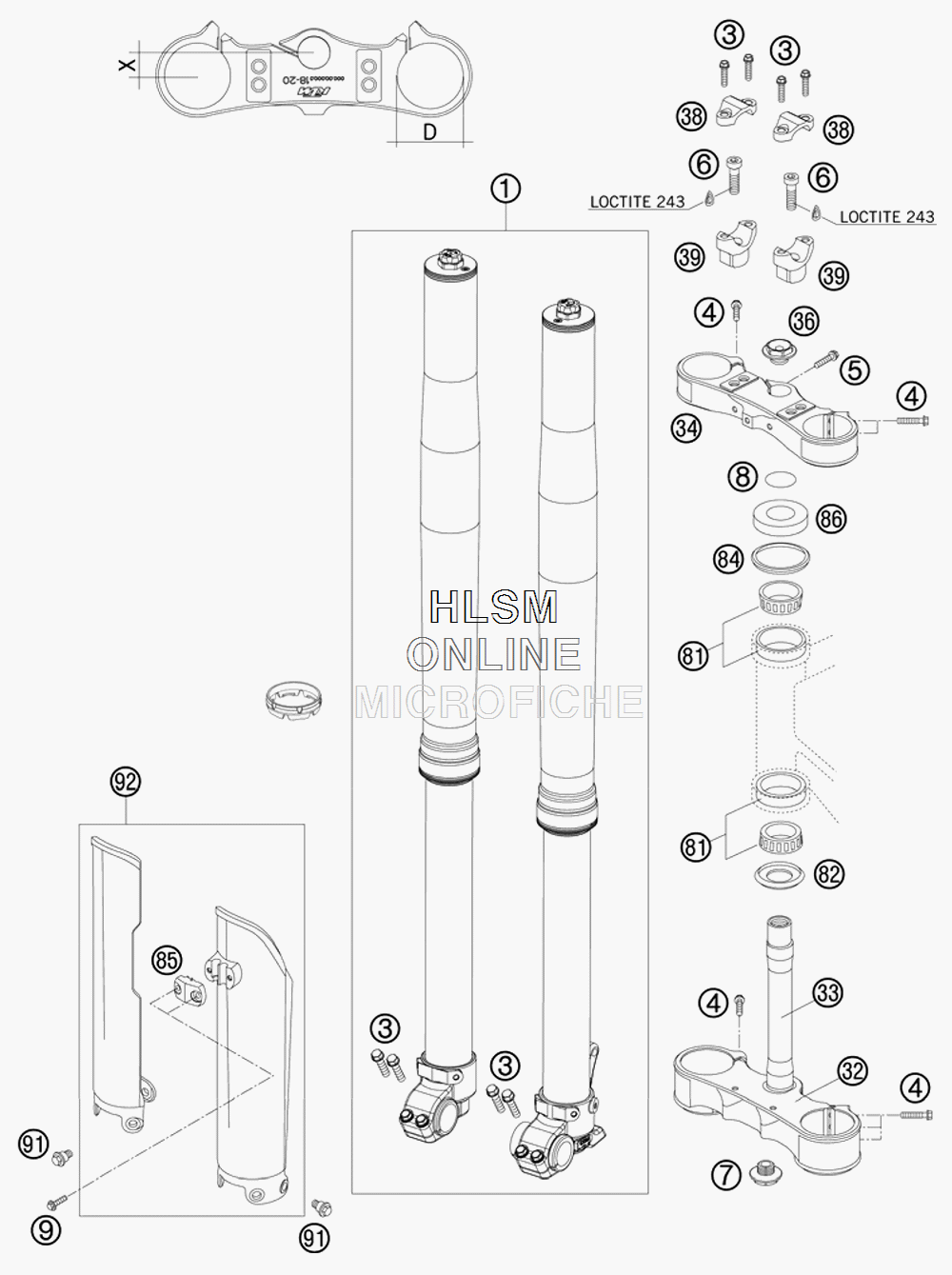

FRONT FORK TRIPLE CLAMP для Ktm 450 SMR - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    14187E1801 FORK KTM
    FORK KTM
  • 3
    0025080256 HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 4
    0025080356 HH COLLAR SCREW M8X35
    HH COLLAR SCREW M8X35
  • 5
    0025080256S HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 6
    0912100356 AH SCREW DIN6912-M10X35 10.9
    AH SCREW DIN6912-M10X35 10.9
  • 7
    54801036100 STE.HEAD SCR. M20X1,5 WS=27 SL
    STE.HEAD SCR. M20X1,5 WS=27 SL
  • 8
    0770025035 O-RING 25X3,55 NBR70
    O-RING 25X3,55 NBR70
  • 9
    0017060204 EJOT PT SCREW K60X20 ALU WS=6
    EJOT PT SCREW K60X20 ALU WS=6
  • 32
    59401031115 BOTTOM TRIPLE CLAMP 14-16
    BOTTOM TRIPLE CLAMP 14-16
  • 33
    77301233000 FORK TUBE SMR 1MM EXZ. 08
    FORK TUBE SMR 1MM EXZ. 08
  • 34
    59401034115 TOP TRIPLE CLAMP 14-16 OFFSET
    TOP TRIPLE CLAMP 14-16 OFFSET
  • 36
    54801036000 STEER.HEAD SCREW M20X1,5 WS=27
    STEER.HEAD SCREW M20X1,5 WS=27
  • 38
    59401038000 HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 39
    59401039032 HANDLEB.SUPP. D=28MM H=32MM
    HANDLEB.SUPP. D=28MM H=32MM
  • 39
    59401039037 HANDLEB.SUPP. D=28MM H=37MM
    HANDLEB.SUPP. D=28MM H=37MM
  • 39
    59401039042 HANDLEB.SUPP. D=28MM H=42MM
    HANDLEB.SUPP. D=28MM H=42MM
  • 81
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 82
    54601084200 O-RING SUPPORT W. SEALINGLIP
    O-RING SUPPORT W. SEALINGLIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 85
    5900108510004 CLAMP F.SPEED.CABLE ORANGE
    CLAMP F.SPEED.CABLE ORANGE
  • 86
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 91
    59001092050 SPECIAL SCREW M6X12,5
    SPECIAL SCREW M6X12,5
  • 92
    5900109400004 FORK PROT. L/S +R/S ORG
    FORK PROT. L/S +R/S ORG
