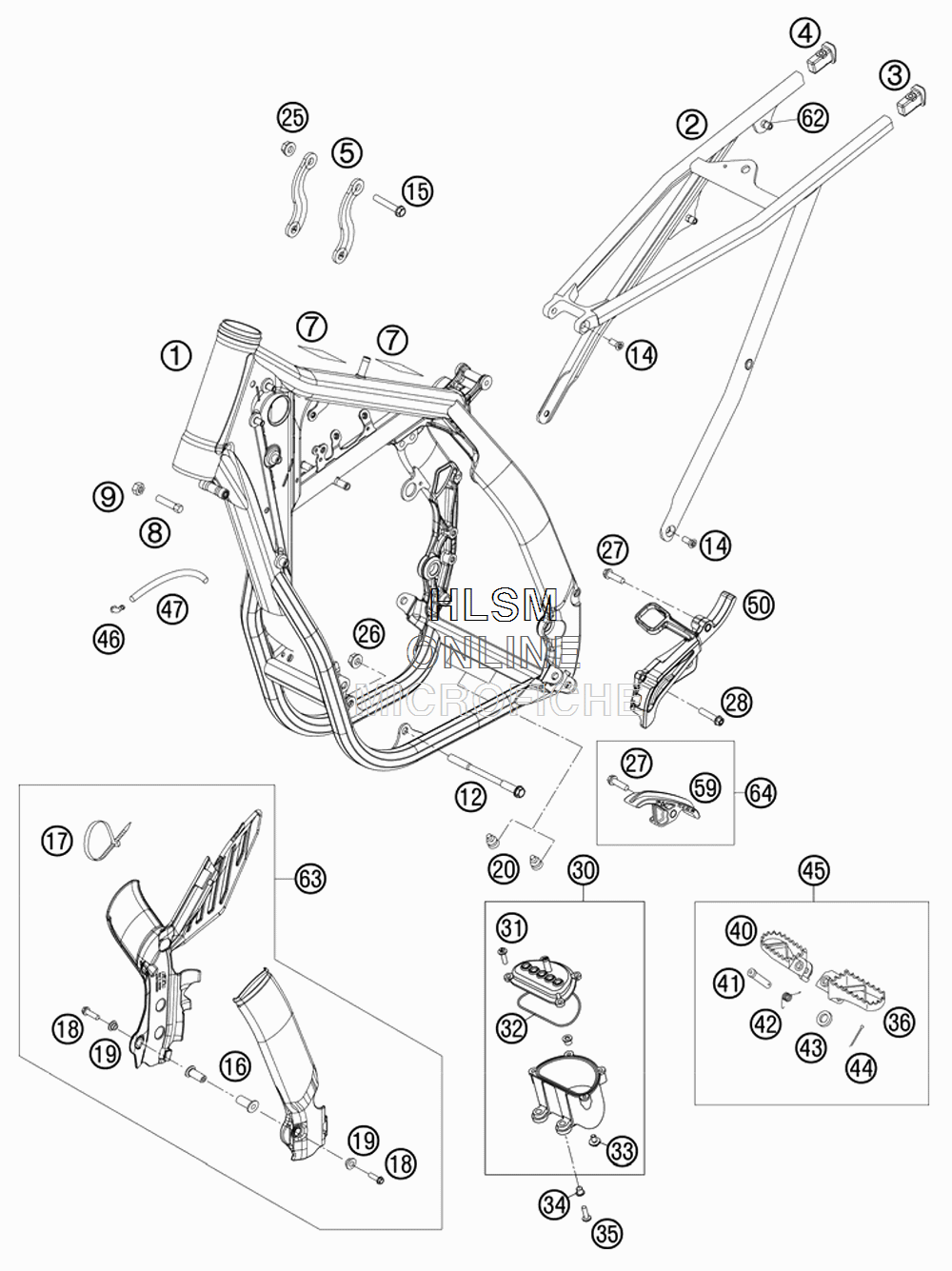

FRAME для Ktm 450 SMR - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    7730320100030 FRAME SMR "JE08"
    FRAME SMR "JE08"
  • 2
    77303002000 SUB FRAME SX "Q7"
    SUB FRAME SX "Q7"
  • 3
    78003002010 MULTIBLE PARTS
    MULTIBLE PARTS
  • 4
    78003002020 MULTIBLE PARTS
    MULTIBLE PARTS
  • 5
    77303113000 ENGINE BRACE 450 SX-F
    ENGINE BRACE 450 SX-F
  • 7
    50307012000 ADH. FOIL TRANSP. 80X80 MM 04
    ADH. FOIL TRANSP. 80X80 MM 04
  • 8
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 9
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 12
    59003013000 ENGINEBRAC.SCREW M10X123 WS=13
    ENGINEBRAC.SCREW M10X123 WS=13
  • 14
    0019080206S FLAT HEAD SCREW M. ISA45 M8X20
    FLAT HEAD SCREW M. ISA45 M8X20
  • 15
    56530079000 HH COLLAR SCREW M 8X44 WS13
    HH COLLAR SCREW M 8X44 WS13
  • 16
    54803092050 BLIND PLUG-IN NUT M5 WN 22A 03
    BLIND PLUG-IN NUT M5 WN 22A 03
  • 17
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 18
    0738050250 COU.SUNK SCR. AH ISO7380 M5X25
    COU.SUNK SCR. AH ISO7380 M5X25
  • 19
    54803092060 BUSH F. FRAME PROTECTION
    BUSH F. FRAME PROTECTION
  • 20
    54403135000 PLASTIC CAP SFL10
    PLASTIC CAP SFL10
  • 25
    54310086200 SELF LOCKING NUT M8
    SELF LOCKING NUT M8
  • 26
    54310086100 SELF LOCKING NUT M10 CU WS=14
    SELF LOCKING NUT M10 CU WS=14
  • 27
    0025080306 HH COLLAR SCREW M8X30
    HH COLLAR SCREW M8X30
  • 28
    0025060356 HH COLLAR SCREW M6X35
    HH COLLAR SCREW M6X35
  • 30
    59431096000 EXPANSION TANK CPL.
    EXPANSION TANK CPL.
  • 31
    0017060203 EJOT PT SCREW K60X20
    EJOT PT SCREW K60X20
  • 32
    0770800021 O-RING 80,00X2,00 VITON
    O-RING 80,00X2,00 VITON
  • 33
    0024060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 34
    58314060050 SPACER BUSH. F. SPEEDOMET.B.
    SPACER BUSH. F. SPEEDOMET.B.
  • 35
    0024060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 36
    59003040250 FOOT PEG L/S SILVER
    FOOT PEG L/S SILVER
  • 40
    59003041250 FOOT PEG R/S SILVER
    FOOT PEG R/S SILVER
  • 41
    54803044000 PIN FOR FOOT PED 51.5X9.8 MM
    PIN FOR FOOT PED 51.5X9.8 MM
  • 42
    54603041000 FOOTREST SPRING L/S & R/S
    FOOTREST SPRING L/S & R/S
  • 43
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 44
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 45
    5030314013390 FOOTPEG L.+R. CPL.
    FOOTPEG L.+R. CPL.
  • 46
    50303089000 ANGLE PIECE
    ANGLE PIECE
  • 47
    78015019000 HOSE EPA D=6/10 L=2000MM
    HOSE EPA D=6/10 L=2000MM
  • 50
    77303096000 CHAIN SPROCKET COVER
    CHAIN SPROCKET COVER
  • 59
    77303053000 CHAIN SLIDING PIECE BELOW
    CHAIN SLIDING PIECE BELOW
  • 62
    77303139000 BLIND RIVET NUT EM6-60LF/HX
    BLIND RIVET NUT EM6-60LF/HX
  • 63
    77303094100 PLASTIC FRAME PROTECTION SET
    PLASTIC FRAME PROTECTION SET
  • 64
    77303053010 CHAIN SLIDING KIT BELOW CPL07
    CHAIN SLIDING KIT BELOW CPL07
