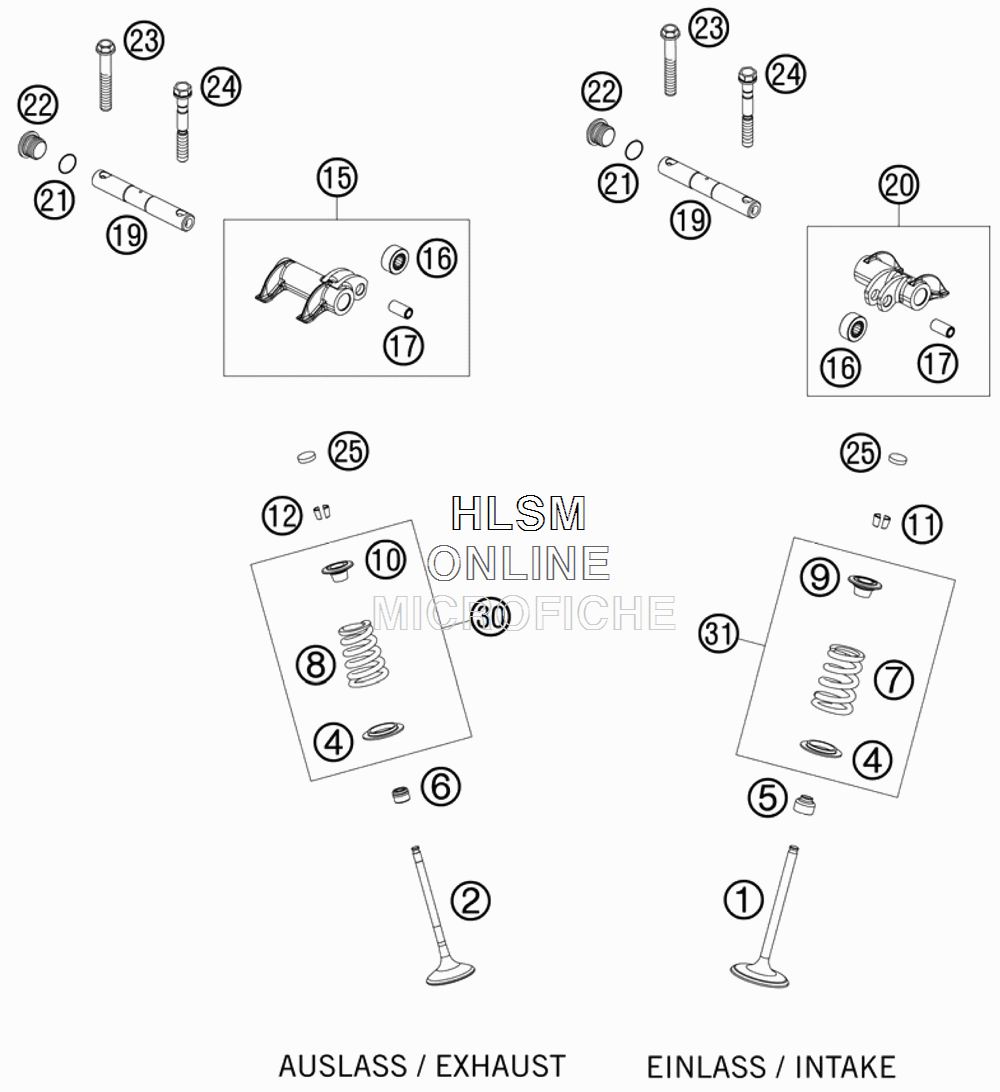

VALVE DRIVE для Ktm 450 EXC - 2009 года выпуска`
-
№АртикулНазвание
-
178036030000 INTAKE VALVEINTAKE VALVE
-
278036031000 EXHAUST VALVEEXHAUST VALVE
-
478036136000 VALVE SPRING HOLDER EXHAUSTVALVE SPRING HOLDER EXHAUST
-
559036027000 VALVE-STEM SEALING RACINGVALVE-STEM SEALING RACING
-
677036027000 VALVE-STEM SEALINGVALVE-STEM SEALING
-
778036028000 VALVE SPRING INTAKEVALVE SPRING INTAKE
-
878036029000 VALVE SPRING EXHAUSTVALVE SPRING EXHAUST
-
9*78036132100 VALVE SPRING RETAINER INTAKEVALVE SPRING RETAINER INTAKE
-
10*78036032100 VALVE SPRING RETAINER EXHAUSTVALVE SPRING RETAINER EXHAUST
-
1178036033000 VALVE COLLET LK 6HVALVE COLLET LK 6H
-
1277036033000 VALVE COLLETVALVE COLLET
-
1578036061044 ROCKER ARM EXHAUST CPL.ROCKER ARM EXHAUST CPL.
-
1659036061091 ROCKER ARM ROLLERROCKER ARM ROLLER
-
1778036061092 BEARING BOLT ROCKER ARM ROLLERBEARING BOLT ROCKER ARM ROLLER
-
1978036056000 ROCKER ARM SHAFTROCKER ARM SHAFT
-
2078036060044 ROCKER ARM INTAKE CPL.ROCKER ARM INTAKE CPL.
-
210770110015 O-RING 1,5X11 SILICONO-RING 1,5X11 SILICON
-
2278036081000 HOLDING BOLT M14X1,5HOLDING BOLT M14X1,5
-
2377036080000 SPECIAL SCREW M7X40 WS10SPECIAL SCREW M7X40 WS10
-
2478036080000 FIT BOLT M7X1X55FIT BOLT M7X1X55
-
2560036035200 SHIM D=10/2,00SHIM D=10/2,00
-
2560036035205 SHIM D=10/2,05SHIM D=10/2,05
-
2560036035210 SHIM D=10/2,10SHIM D=10/2,10
-
2560036035215 SHIM D=10/2,15SHIM D=10/2,15
-
2560036035220 SHIM D=10/2,20SHIM D=10/2,20
-
2560036035225 SHIM D=10/2,25SHIM D=10/2,25
-
2560036035230 SHIM D=10/2,30SHIM D=10/2,30
-
2560036035235 SHIM D=10/2,35SHIM D=10/2,35
-
2560036035240 SHIM D=10/2,40SHIM D=10/2,40
-
2560036035245 SHIM D=10/2,45SHIM D=10/2,45
-
2560036035250 SHIM D=10/2,50SHIM D=10/2,50
-
2560036035255 SHIM D=10/2,55SHIM D=10/2,55
-
2560036035260 SHIM D=10/2,60SHIM D=10/2,60
-
2560036035265 SHIM D=10/2,65SHIM D=10/2,65
-
2560036035270 SHIM D=10/2,70SHIM D=10/2,70
-
2560036035275 SHIM D=10/2,75SHIM D=10/2,75
-
2560036035280 SHIM D=10/2,80SHIM D=10/2,80
-
2560036035285 SHIM D=10/2,85SHIM D=10/2,85
-
2560036035290 SHIM D=10/2,90SHIM D=10/2,90
-
2560036035295 SHIM D=10/2,95SHIM D=10/2,95
-
2560036035300 SHIM D=10/3,00SHIM D=10/3,00
-
2560036035305 SHIM D=10/3,05SHIM D=10/3,05
-
2560036035310 SHIM D=10/3,10SHIM D=10/3,10
-
2560036035315 SHIM D=10/3,15SHIM D=10/3,15
-
2560036035320 SHIM D=10/3,20SHIM D=10/3,20
-
30*78036029144 VALVE SPR.-KIT EX. 450-503VALVE SPR.-KIT EX. 450-503
-
31*78036028144 VALVE SPR.-KIT INT. 450-530VALVE SPR.-KIT INT. 450-530
