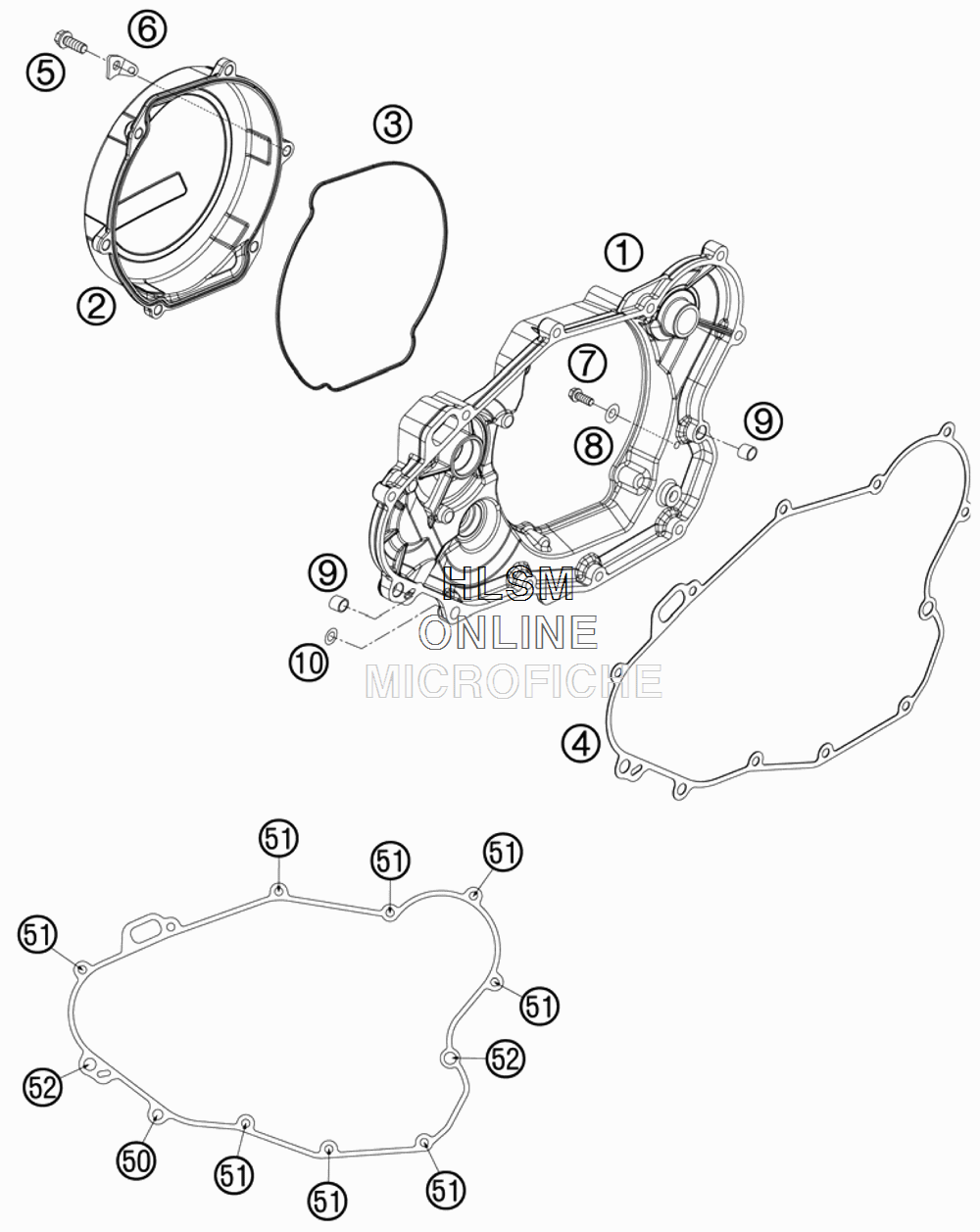

CLUTCH COVER для Ktm 450 EXC - 2009 года выпуска

  • №
    Артикул
    Название
  • 1*
    7803000104415 CLUTCH COVER GREY CPL.
    CLUTCH COVER GREY CPL.
  • 2*
    7803002610015 OUTER CLUTCH COVER
    OUTER CLUTCH COVER
  • 3
    78030027000 GASKET OUTER CLUTCH COVER
    GASKET OUTER CLUTCH COVER
  • 4
    78030025000 CLUTCH COVER GASKET
    CLUTCH COVER GASKET
  • 5
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 6
    78030028000 SPRING HANGER
    SPRING HANGER
  • 7
    0025060086 HH COLLAR SCREW M6X8 TX30
    HH COLLAR SCREW M6X8 TX30
  • 8
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 9
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 10
    58030081000 CU-SEAL RING 8 X 14 X 3
    CU-SEAL RING 8 X 14 X 3
  • 50
    78030080000 LOCATING SCREW
    LOCATING SCREW
  • 51
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 52
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
