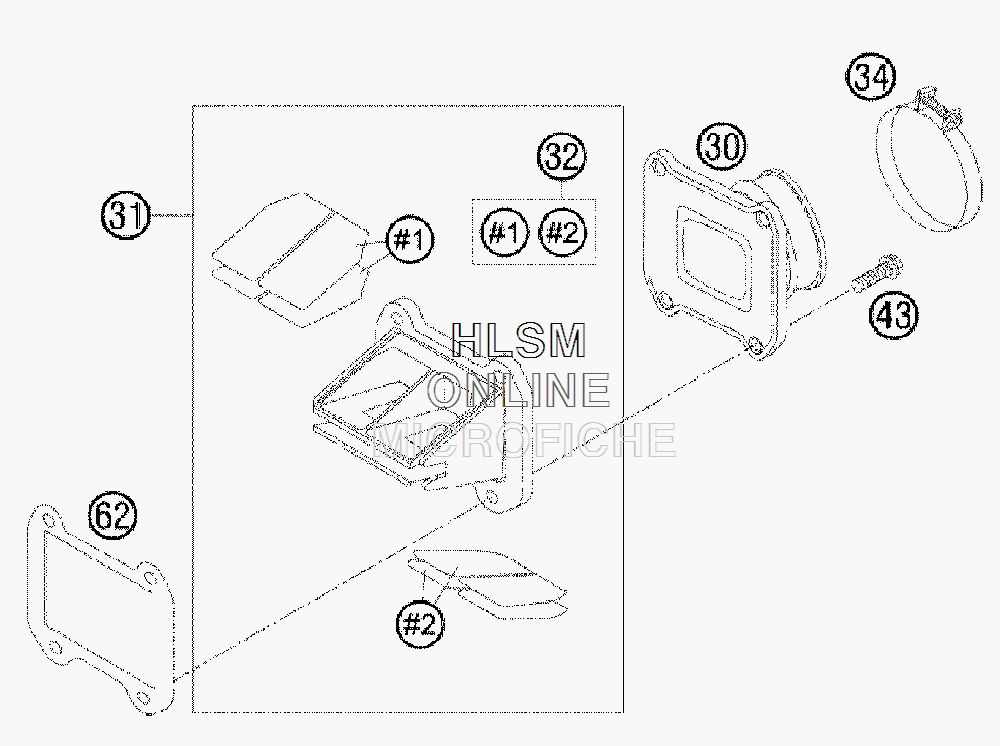

REED VALVE CASE для Ktm 300 XC-W - 2009 года выпуска
-
№АртикулНазвание
-
3054830050000 INTAKE FLANGE V-FORCEINTAKE FLANGE V-FORCE
-
3154830051244 REED VALVE ASSY V-FORCE CPLREED VALVE ASSY V-FORCE CPL
-
3254830052100 REED VALVE SET V-FORCEREED VALVE SET V-FORCE
-
3454330061000 CLAMP 52/12 GEMICLAMP 52/12 GEMI
-
430025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
6254830062100 GASKET REED VALVE CASEGASKET REED VALVE CASE
