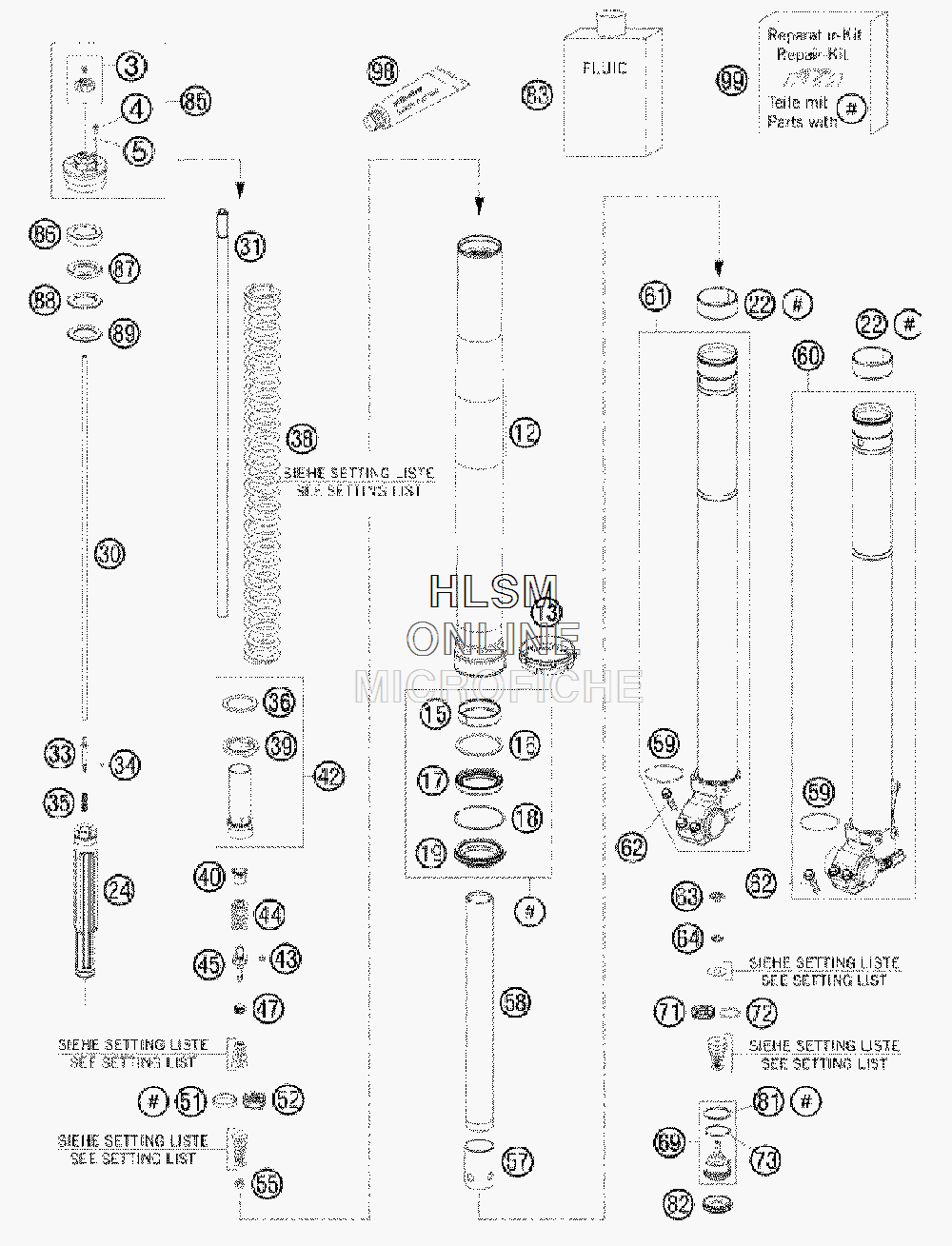

FRONT FORK DISASSEMBLED для Ktm 300 XC-W - 2009 года выпуска

  • №
    Артикул
    Название
  • 3
    4860082S ADJUSTING KNOB + SCREW
    ADJUSTING KNOB + SCREW
  • 4
    4860048 VENT SCREW M4X8
    VENT SCREW M4X8
  • 5
    48600009 O-RIIG NR 3,7X1,6
    O-RIIG NR 3,7X1,6
  • 2
    48600736 OUTER TUBE L577 D54/60MM 2L
    OUTER TUBE L577 D54/60MM 2L
  • 3
    48600698 FORK PROTECTION RING
    FORK PROTECTION RING
  • 5
    48600429 DU-BUSH D48XD52X 12DDL02
    DU-BUSH D48XD52X 12DDL02
  • 6
    4860003 SUPPORT RING 50X57,6X 1,5
    SUPPORT RING 50X57,6X 1,5
  • 7
    48600347 OIL SEAL RING 48X 57,8X9,5
    OIL SEAL RING 48X 57,8X9,5
  • 8
    48600070 LOCK WASHER SB58
    LOCK WASHER SB58
  • 9
    48600400 DUST CAP D = 48 58 ,4X11,8
    DUST CAP D = 48 58 ,4X11,8
  • 22
    4800428 DU-BUSH D47XD49X20DDL02
    DU-BUSH D47XD49X20DDL02
  • 24
    48600557S YR.STOP L=200 =3,9 CPL. 07
    YR.STOP L=200 =3,9 CPL. 07
  • 30
    48600559 ADJUSTING TUBE L= 520
    ADJUSTING TUBE L= 520
  • 3
    48600568 PISTON ROD D = 1 2 L= 554 ALU
    PISTON ROD D = 1 2 L= 554 ALU
  • 33
    48600277 ADJUSTER NEEDLE
    ADJUSTER NEEDLE
  • 34
    48600298 O-RING 2X,5 NR
    O-RING 2X,5 NR
  • 35
    48600444 REPOUND SPRING C=4N/MM
    REPOUND SPRING C=4N/MM
  • 36
    486003 WASHER 32X42X2,5
    WASHER 32X42X2,5
  • 38
    94002S SPRING 3,8 N /MM SET D = 4,9 MM
    SPRING 3,8 N /MM SET D = 4,9 MM
  • 38
    94003S SPRING 4,0 N /MM SET D = 5,0 MM
    SPRING 4,0 N /MM SET D = 5,0 MM
  • 38
    94004S SPRING 4,2 N /MM SET D = 5,0 MM
    SPRING 4,2 N /MM SET D = 5,0 MM
  • 38
    94005S SPRING 4,4 N /MM SET D = 5,1 MM
    SPRING 4,4 N /MM SET D = 5,1 MM
  • 38
    94006S SPRING 4,6 N /MM SET
    SPRING 4,6 N /MM SET
  • 38
    94007S SPRING 4,8 N /MM SET
    SPRING 4,8 N /MM SET
  • 39
    4860002 INTERM. RIN G 2 6 ,2 X 4 3 X 3
    INTERM. RIN G 2 6 ,2 X 4 3 X 3
  • 40
    48600525 GUIDING BUSH REBOUND SPRING
    GUIDING BUSH REBOUND SPRING
  • 42
    48600762S SCREW SLEEVE M27X,08 L=00 KPL
    SCREW SLEEVE M27X,08 L=00 KPL
  • 43
    48600299 O-RING 6X,2 NR
    O-RING 6X,2 NR
  • 44
    486005 REPOUND SPRING L=32 C=7
    REPOUND SPRING L=32 C=7
  • 45
    48600576 PISTON ROD REBOUND
    PISTON ROD REBOUND
  • 47
    48600382 SUTTLE VALVE SPRING C=0,4
    SUTTLE VALVE SPRING C=0,4
  • 5
    48600455 PISTON RING 5X1X 68
    PISTON RING 5X1X 68
  • 52
    48600575 PISTON REBOUND SX
    PISTON REBOUND SX
  • 55
    40540486 NUT M6X0,5 REBOUND
    NUT M6X0,5 REBOUND
  • 57
    48600764 ADAPTER SLEEVE D23/D28
    ADAPTER SLEEVE D23/D28
  • 58
    48600763 PIPE D23 /L350
    PIPE D23 /L350
  • 59
    48600048 O-RING NBR 46 X 2
    O-RING NBR 46 X 2
  • 60
    48600237S3 AXLE CLAMP L/S + TUBE CPL.
    AXLE CLAMP L/S + TUBE CPL.
  • 61
    48600238S4 AXLE CLAMP R/S + TUBE CPL.
    AXLE CLAMP R/S + TUBE CPL.
  • 62
    0025080256 HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 63
    48600163 CHECK VALVE NUT M6X0,5 D=2
    CHECK VALVE NUT M6X0,5 D=2
  • 64
    48600202 SPRING CHECK VALVE D=0,7
    SPRING CHECK VALVE D=0,7
  • 69
    48600586S TAP COMPRESSION CPL.
    TAP COMPRESSION CPL.
  • 71
    48600047 PISTON COMPRESSION D=27,9
    PISTON COMPRESSION D=27,9
  • 72
    46811499 O-RING NBR 21X2
    O-RING NBR 21X2
  • 73
    35480320 O-RING NBR 24X2
    O-RING NBR 24X2
  • 81
    48600004 COPPER WASHER 29,5X33,5X1
    COPPER WASHER 29,5X33,5X1
  • 82
    48600141 RUBBER CAP D=35MM
    RUBBER CAP D=35MM
  • 83
    48600401S1 FORK OIL SAE5 5L
    FORK OIL SAE5 5L
  • 85
    48600431S2 PRE-LOAD ADJ. M51X1,5
    PRE-LOAD ADJ. M51X1,5
  • 86
    48600038 SPACER 42X26,5X10
    SPACER 42X26,5X10
  • 87
    48600037 SPACER 42X26,5X5
    SPACER 42X26,5X5
  • 88
    48600036 SPACER 42X26,5X2,5
    SPACER 42X26,5X2,5
  • 89
    48600053 SPACER 42X26,5X1,5
    SPACER 42X26,5X1,5
  • 98
    T511 SILICONE GREASE F. DUST STRI
    SILICONE GREASE F. DUST STRI
  • 99
    R14016 REPAIR-KIT EXC FRONT FORK
    REPAIR-KIT EXC FRONT FORK
