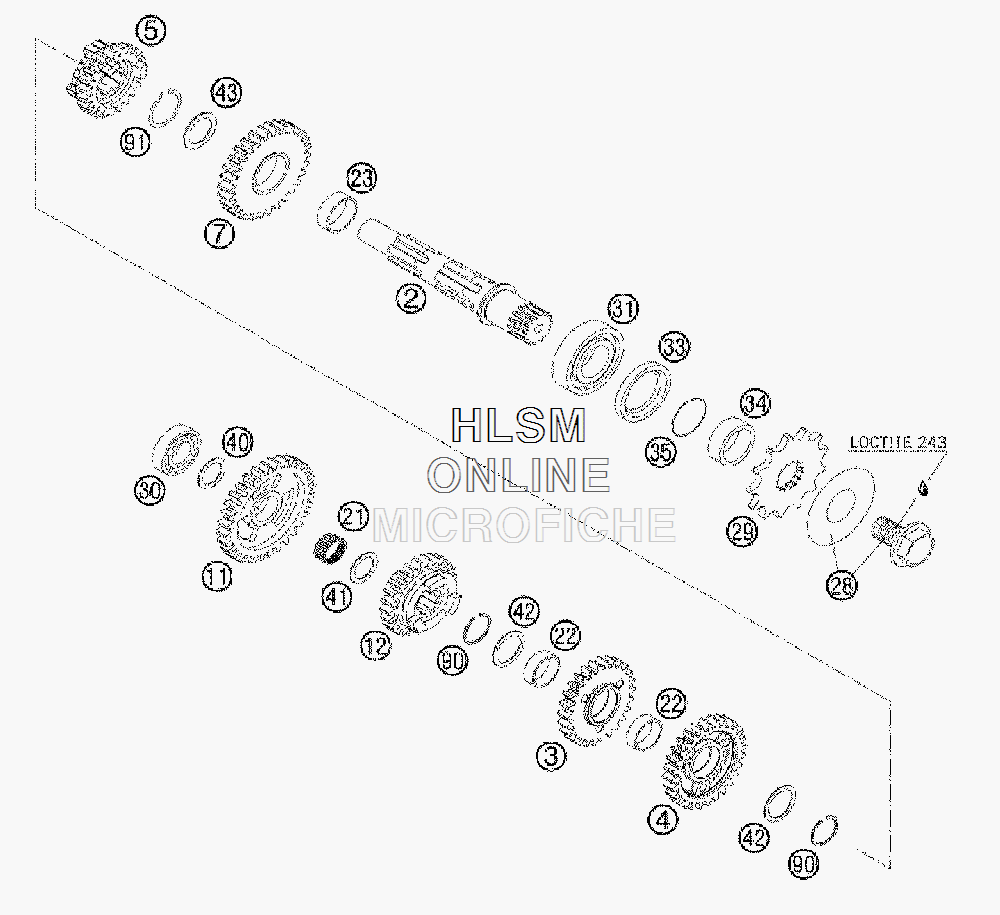

TRANSMISSION II - COUNTERSHAFT для Ktm 250 XC-FW - 2009 года выпуска

  • №
    Артикул
    Название
  • 2
    77033010000 COUNTER SHAFT
    COUNTER SHAFT
  • 3
    77033114000 IDLER G. 4TH 6.28-T ''4B28''
    IDLER G. 4TH 6.28-T ''4B28''
  • 4
    77033113000 IDLER G. 3RD G.29-T ''3B29''
    IDLER G. 3RD G.29-T ''3B29''
  • 5
    77033116100 SLIDING G. 6TH 6.22-T ''6B26''
    SLIDING G. 6TH 6.22-T ''6B26''
  • 7
    77033112000 IDLER G. 2ND 6. 33-T ''2B33''
    IDLER G. 2ND 6. 33-T ''2B33''
  • 11
    77033111000 IDLER G. 1ST G. 33-T ''1B33''
    IDLER G. 1ST G. 33-T ''1B33''
  • 12
    77033115100 SLIDING G. 5TH G .23-T ''5B23''
    SLIDING G. 5TH G .23-T ''5B23''
  • 21
    50033098000 NEEDLE BEARING K20X24X10
    NEEDLE BEARING K20X24X10
  • 22
    0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED
    NEEDLE BEAR.K 22X26X10 DIVIDED
  • 23
    50333023000 IDLER GEAR BUSHING 25X28X9,7 D
    IDLER GEAR BUSHING 25X28X9,7 D
  • 28
    59033034044 SCREW+SPRING WASHER
    SCREW+SPRING WASHER
  • 29
    50033029013 SPROCKET 13-T
    SPROCKET 13-T
  • 29
    50033029014 SPROCKET 14-T
    SPROCKET 14-T
  • 29
    50033029015 SPROCKET 15-T
    SPROCKET 15-T
  • 30
    0625060031 BALL BEARING 6003 TN9 C4
    BALL BEARING 6003 TN9 C4
  • 31
    0625062054 BALL BEARING 6205 C3 NTN
    BALL BEARING 6205 C3 NTN
  • 33
    0760324571 SHAFT SEAL RING 32X45X7 BSLNBR
    SHAFT SEAL RING 32X45X7 BSLNBR
  • 34
    54633014100 SPACER BUSHING 12MM
    SPACER BUSHING 12MM
  • 35
    0770230020 O-RING 23,00X2,00 NBR70
    O-RING 23,00X2,00 NBR70
  • 40
    56033030000 STOP DISC 17,2X30X1
    STOP DISC 17,2X30X1
  • 41
    59033080000 SHIM 20X32X1
    SHIM 20X32X1
  • 42
    50333043000 STOP DISC 25,2X32X1
    STOP DISC 25,2X32X1
  • 43
    0988253510 THRUST WASH. DIN0988-25X35X1,0
    THRUST WASH. DIN0988-25X35X1,0
  • 90
    77033022000 AXIAL-CIRCUP 25X1,65
    AXIAL-CIRCUP 25X1,65
  • 91
    0471250120 CIRCLIP DIN0471-25X1,2
    CIRCLIP DIN0471-25X1,2
